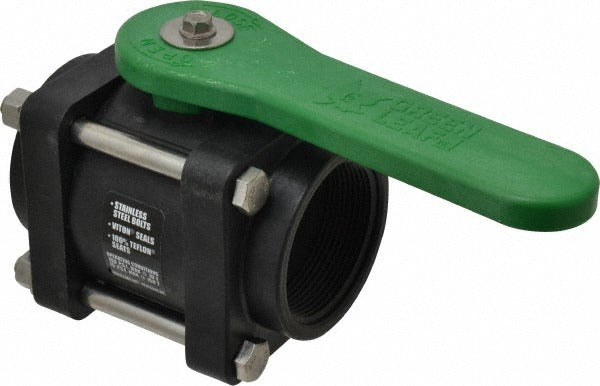

Green Leaf V 200 Ball Valve 2 Inch Fnpt Polypropylene 150 Psi

Product Description

The GREEN LEAF V 200 is a 2-inch standard port manual ball valve designed for fluid shutoff and flow control in piping systems. The body and lever handle are constructed from polypropylene, making this valve suited for corrosive or chemically aggressive media where metal valves would degrade. PTFE seats and seals provide a tight shutoff and resist wear across repeated cycles. The valve is rated to 150 psi maximum working pressure and connects via female NPT threads on both ends. Installation is straightforward for licensed plumbers and pipefitters working on chemical lines, water treatment systems, or irrigation distribution.

This valve is appropriate for residential and light commercial plumbing, chemical handling, and industrial fluid systems where a two-inch inline shutoff is required. The lever handle allows for quick quarter-turn operation, giving technicians a clear visual indication of open or closed position. The FNPT x FNPT end configuration threads directly into standard NPT-tapped fittings without adapters. It is sold as a single piece and is a practical choice wherever polypropylene construction is specified over brass or stainless.

Key Features

• Polypropylene body and handle resist corrosion and chemical attack
• PTFE seats and seals provide leak-tight shutoff and long service life
• Quarter-turn lever handle offers fast actuation and clear open/closed indication
• FNPT x FNPT end connections thread into standard NPT fittings on both sides
• 150 psi maximum working pressure rating
• Standard port, 3-piece body construction for ease of service

Compatibility

Designed as an OEM-style replacement or new-installation component for 2-inch NPT piping systems requiring a standard port polypropylene ball valve.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter following applicable IPC or local plumbing code requirements. Depressurize and drain the line completely before removing any existing valve or threading in this replacement. Apply thread sealant tape or compound rated for the media being conveyed to all NPT connections. Do not overtighten threaded connections into polypropylene fittings, as the body material is not as torque-tolerant as metal alternatives.
