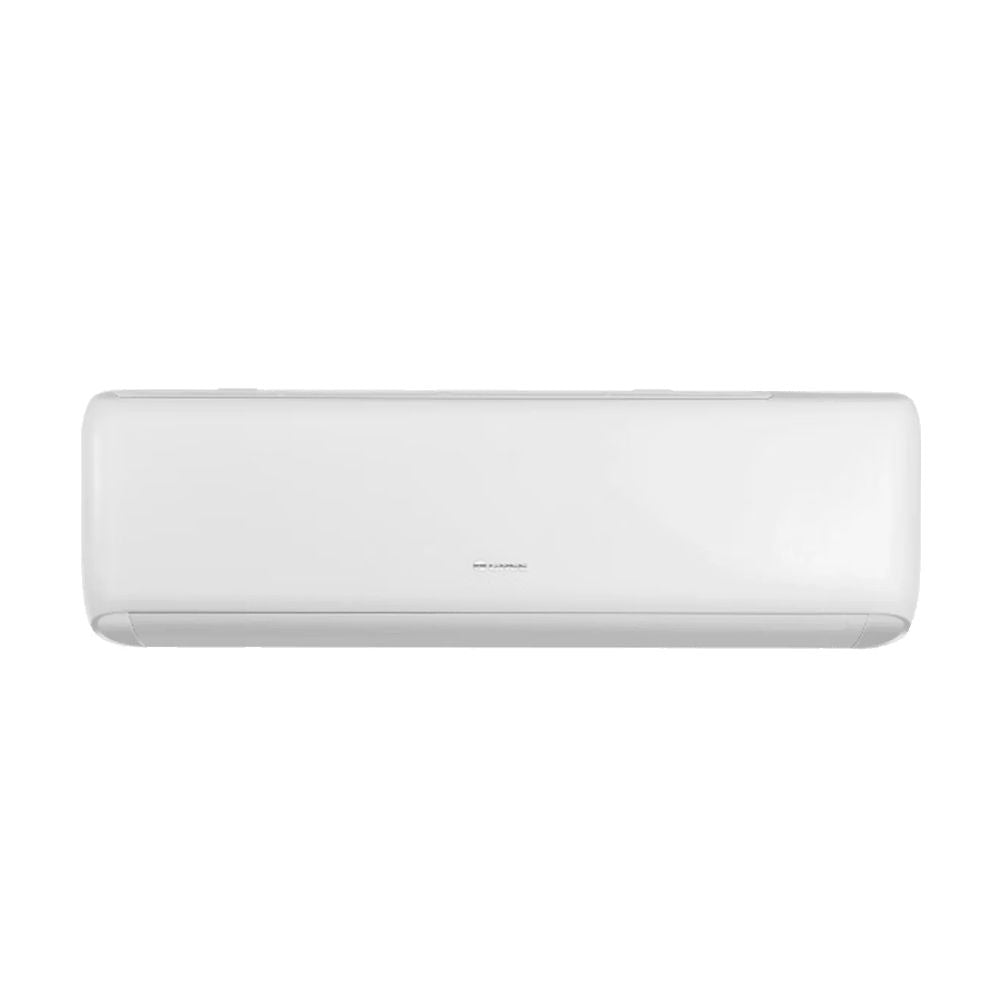

Gree VIR24HP230V1R32AH Vireo R32 Wall Mount Ductless Mini Split Heat Pump 24000 Btu/h Single Zone 230V

Product Description

The GREE VIR24HP230V1R32AH is a 24,000 BTU/h wall-mount ductless mini split heat pump from the Vireo R32 series, designed for single-zone and select multi-zone residential and light commercial applications. It operates on 208-230 volts and uses R32 refrigerant, delivering a 26 SEER2 energy efficiency rating and 10 HSPF2. The indoor unit is a wall-mount evaporator coil with a crossflow fan, built-in WiFi, and a full feature set including Turbo Mode, Quiet Mode, Freeze Guard, and Auto Clean. Licensed HVAC technicians install and commission this system. Cooling and heating capacity ranges from 3,340 to 28,660 BTU/h across operating conditions.

This unit suits larger single rooms, open-concept living areas, family rooms, and converted garages requiring zoned climate control without ductwork. It functions as a cooling-only or heat pump system depending on outdoor unit pairing. Operating temperature range is -20 to 122 degrees F in cooling mode and -22 to 86 degrees F in heating mode, making it suitable for cold-climate installations. The VIR24HP230V1R32AH is the indoor wall-mount head unit and is sold as part of a system requiring a compatible GREE Vireo R32 outdoor unit.

Key Features

• 26 SEER2 / 10 HSPF2 / 13.65 EER2 energy efficiency ratings
• R32 refrigerant with indoor and outdoor blue fin coil coating for corrosion resistance
• Built-in WiFi for remote control and monitoring without a separate adapter
• Crossflow indoor fan with 7-speed control and airflow range of 383 to 736 CFM
• Dehumidification capacity of 4.23 pints per hour in dry mode
• Basepan with electric heater included on outdoor unit for cold-weather drainage
• Easy Service Access panel design for field servicing

Compatibility

The VIR24HP230V1R32AH is the indoor wall-mount evaporator head of the GREE Vireo R32 24K system, compatible with the corresponding GREE Vireo R32 outdoor unit (VIR24HP230V1R32AO) for single-zone operation. It is also rated for select multi-zone outdoor unit pairings within the GREE Vireo R32 product family. Line set connection sizes are 1/4 inch liquid line and 5/8 inch gas line, flare fittings. Maximum pipe elevation is 82 feet.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with R32 flammable refrigerant handling procedures and local mechanical codes. Shut off all power at the disconnect before making electrical connections; the system requires a dedicated 208-230 volt circuit sized to unit specifications. Interconnecting wire gauge ranges from 14 to 4 AWG depending on run length and local code requirements. Do not operate the system in an enclosed space without verifying adequate ventilation per R32 safety guidelines.

Technical Specifications

• Heating Capacity (Rated): 24,000 BTU/h
• Cooling Capacity (Rated at 95 degrees F): 22,000 BTU/h
• Capacity Range (Min-Max): 3,340 to 28,660 BTU/h
• Energy Efficiency: 26 SEER2 / 13.65 EER2 / 10 HSPF2
• Power Supply: 208-230 volts, 60 Hz
• Refrigerant: R32
• Indoor Fan Type: Crossflow
• Airflow Range: 383 to 736 CFM
• Dehumidification: 4.23 pints per hour
• Sound Level: 34 to 52 decibels
• Interconnecting Wire: 14 to 4 AWG
• Line Set Size: 1/4 inch liquid / 5/8 inch gas, flare
• Maximum Pipe Elevation: 82 feet
• Coil Material: Copper tube / Aluminum fin with blue fin coating
• Operating Temperature (Cooling): -20 to 122 degrees F
• Operating Temperature (Heating): -22 to 86 degrees F
• WiFi: Included
• Applicable Standard: AHRI

Standard Information

• Brand: GREE
• Manufacturer Part Number: VIR24HP230V1R32AH
