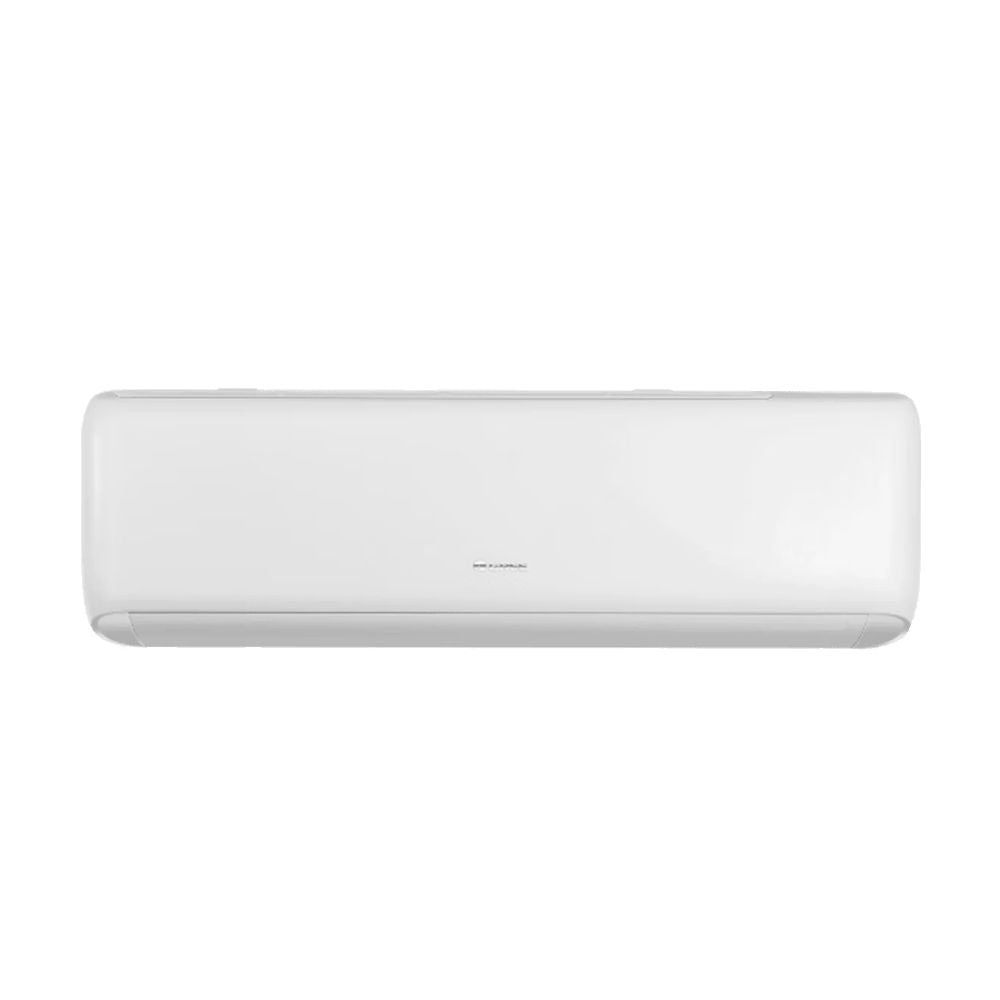

Gree VIR12HP230V1R32AH Vireo R32 Ductless Mini Split Indoor Wall Mount Unit 12000 Btu/h 230V Single Zone

Product Description

The GREE VIR12HP230V1R32AH is a 12,000 BTU/h wall-mounted indoor air handler for single-zone ductless mini split heat pump systems. It operates on 208-230 volts and uses R32 refrigerant, a lower global-warming-potential alternative to R410A. The unit delivers both cooling and heating through a DC inverter-driven system, with a cooling range down to 0 degrees F ambient and a heating range down to -13 degrees F ambient. HVAC technicians install this unit as the indoor component of a paired mini split system, connecting it to a compatible GREE outdoor condensing unit via refrigerant lineset and low-voltage control wiring.

The VIR12HP230V1R32AH is designed for single-zone residential applications such as bedrooms, living areas, additions, and spaces without existing ductwork. The indoor wall mount head mounts high on the wall and delivers conditioned air across a range of 230 to 400 CFM. The unit includes integrated Wi-Fi for smart device control and ships with a wireless remote with LCD display. Wired controller options are also supported. This is the indoor-only air handler and requires a separately purchased or matched GREE Vireo R32 outdoor unit to form a complete system.

Key Features

• 12,000 BTU/h cooling and heating capacity with DC inverter technology for variable-speed operation
• R32 refrigerant with AHRI Certificate 214779350
• Low ambient cooling operation down to 0 degrees F and heating down to -13 degrees F
• Integrated Wi-Fi included for app-based control via Ewpe Smart platform
• Copper tube and aluminum fin coil with blue-coated fins rated for 500 hours of salt spray testing
• Seven fan speeds, auto swing, turbo mode, quiet mode, sleep mode, dry mode, and freeze guard mode
• Composite drain pan and auto clean function to reduce mildew buildup

Compatibility

This is the indoor wall mount air handler for the GREE Vireo R32 single-zone mini split system. It requires a compatible GREE Vireo R32 outdoor condensing unit to form a complete operating system. Minimum circuit ampacity is 10 amps with a maximum breaker rating of 15 amps.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician, as R32 is an A2L mildly flammable refrigerant requiring specific handling procedures and tools rated for A2L refrigerants. Before servicing or mounting, disconnect and lock out all electrical power to the circuit. The indoor unit requires a wall penetration for the refrigerant lineset, condensate drain, and control wiring, and must be mounted level on a structurally sound surface capable of supporting the unit weight. Follow all applicable local mechanical and electrical codes during installation.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Power Supply: 208-230 volts
• Refrigerant: R32
• Air Flow: 230-400 CFM
• Dehumidification: 2.96 pt/hr
• Minimum Circuit Ampacity (MCA): 10 amps
• Maximum Overcurrent Protection (MCOP): 15 amps
• Low Ambient Cooling Range: 0 degrees F to 118 degrees F
• Low Ambient Heating Range: -13 degrees F to 75 degrees F
• Coil Construction: Copper tube, aluminum fin, blue-coated
• AHRI Certificate: 214779350
• Component: Indoor air handler only
• Wi-Fi: Included

Standard Information

• Brand: GREE
• Manufacturer Part Number: VIR12HP230V1R32AH
