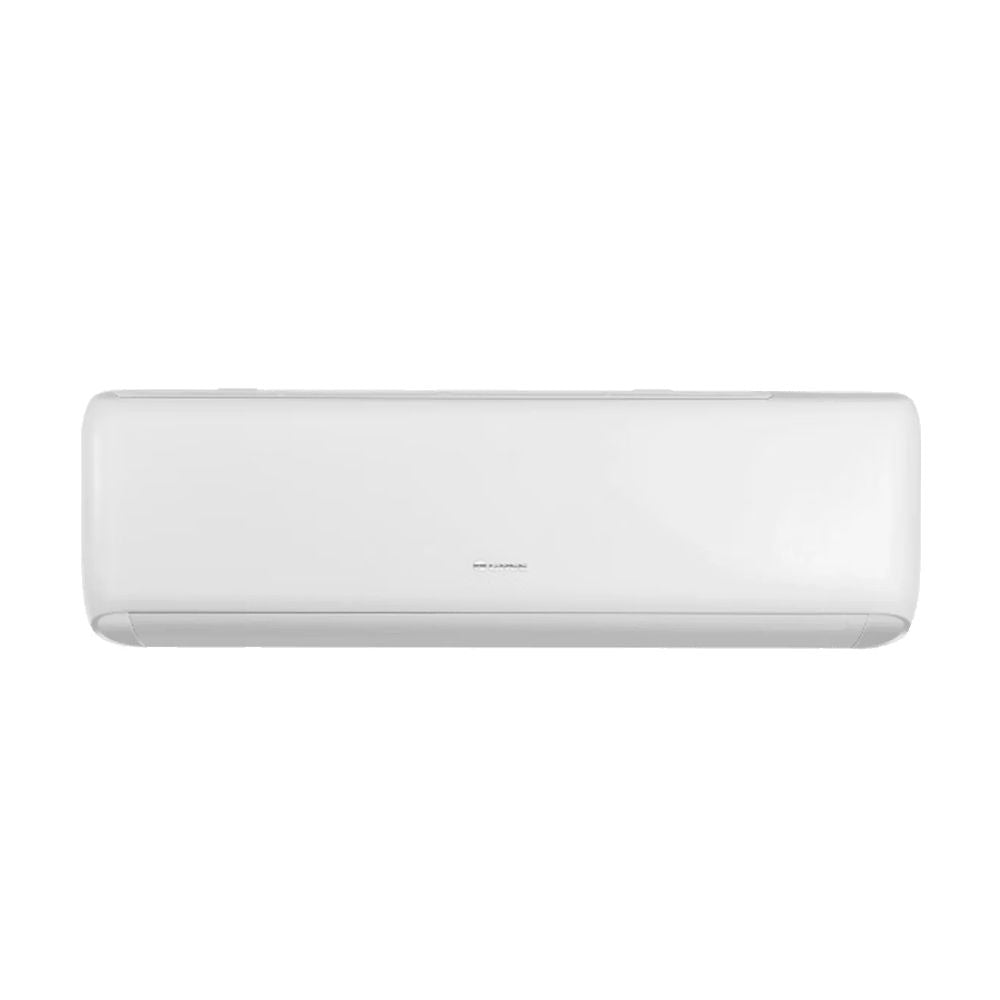

Gree VIR09HP230V1R32AH Vireo R32 Mini Split Indoor Wall Unit 9000 Btu/h Single Zone 230V

Product Description

The GREE VIR09HP230V1R32AH is the indoor wall-mount air handler for the Vireo R32 single-zone ductless mini split heat pump system. Rated at 9,000 BTU/h for both cooling and heating, it operates on 208-230V power and uses R32 refrigerant. Efficiency ratings reach up to 26 SEER2, 15 EER2, and 10.4 HSPF2, placing it well above minimum federal standards. This unit handles both cooling and heating, with a cooling operating range down to -20 degrees F and a heating operating range down to -22 degrees F. Licensed HVAC technicians install this as the indoor half of a matched single-zone or compatible multi-zone system.

This air handler is suited for residential single-zone applications where ductless delivery is preferred or required. It mounts high on an interior wall and connects to a compatible GREE Vireo R32 outdoor condenser via refrigerant line set and interconnecting wire. Airflow ranges from 194 to 353 CFM depending on fan speed. The unit also handles dehumidification at 1.69 pints per hour. Typical installations include bedrooms, living areas, additions, and spaces where extending duct work is impractical.

Key Features

• 9,000 BTU/h cooling and heating capacity with up to 26 SEER2 efficiency rating
• R32 refrigerant with lower global warming potential than R410A
• Operating range from -22 to 86 degrees F in heating mode and -20 to 122 degrees F in cooling mode
• Auto Clean, Dry Anti-Mildew (X-Fan), and Freeze Guard modes for system protection and air quality
• I Feel function, Sleep mode with three options, Turbo mode, and Quiet mode for occupant comfort control
• Copper tube and aluminum fin coil construction for reliable heat transfer
• Compatible as both single-zone and multi-zone indoor unit

Compatibility

Designed for use with compatible GREE Vireo R32 outdoor condensers in single-zone or multi-zone configurations. Line set connections are 1/4 inch liquid line and 3/8 inch gas line (flare fittings). Maximum pipe elevation is 40 feet. Interconnecting wire is 14 to 4 AWG. Confirm outdoor unit compatibility with GREE system documentation before installation.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician familiar with ductless mini split systems and R32 refrigerant handling. Power down all circuits before making electrical or refrigerant connections. R32 is mildly flammable (A2L classification) and requires adherence to applicable local codes and ASHRAE 15 guidelines during installation and service. Ensure the selected wall location provides the required clearances specified in the GREE submittal data for proper airflow and serviceability.

Technical Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h (max 10,500 BTU/h)
• SEER2: Up to 26
• EER2: Up to 15
• HSPF2: Up to 10.4
• Power Supply: 208-230V
• Refrigerant: R32
• Airflow: 194 to 353 CFM
• Dehumidification: 1.69 pints per hour
• Sound Level: 20 to 41 decibels
• Cooling Operating Range: -20 to 122 degrees F
• Heating Operating Range: -22 to 86 degrees F
• Line Set: 1/4 inch liquid / 3/8 inch gas (flare)
• Max Pipe Elevation: 40 feet
• Interconnecting Wire: 14 to 4 AWG
• Coil Material: Copper tube / Aluminum fin
• Applicable Standard: AHRI

Standard Information

• Brand: GREE
• Manufacturer Part Number: VIR09HP230V1R32AH
