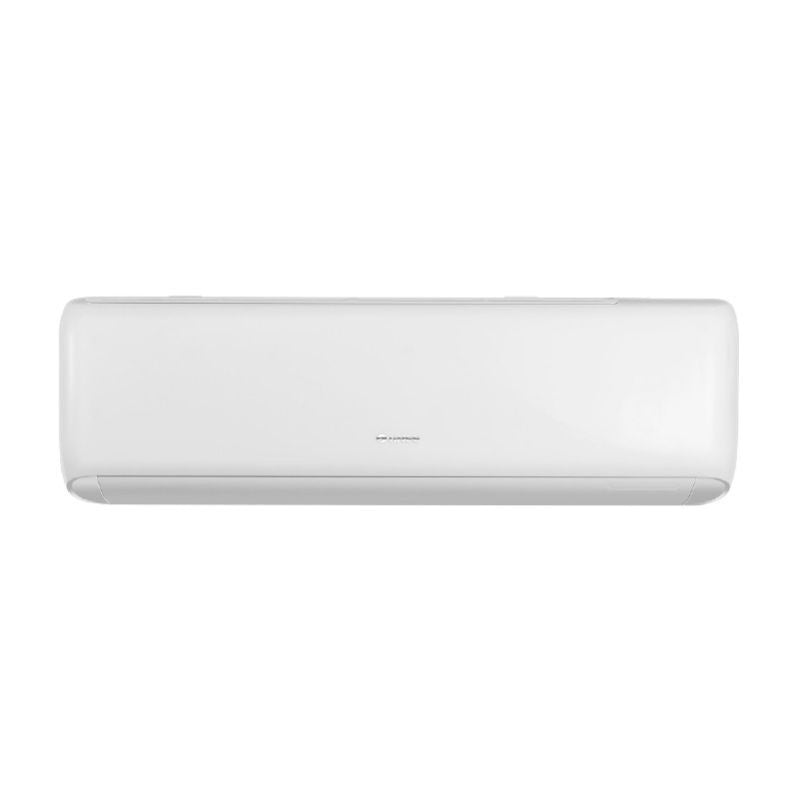

Gree SAP12HP230V1R32AH Ductless Wall Mount Indoor Unit 12000 Btu/h 230V R32 Single Zone Mini Split

Product Description

The GREE SAP12HP230V1R32AH is a 12,000 BTU/h ductless wall mount indoor air handler designed for single-zone and multi-zone mini split heat pump systems. Operating on 230 volts with R32 refrigerant, this DC inverter-driven unit delivers both cooling and heating through a compact, wall-mounted evaporator coil assembly. The indoor coil uses copper tube and aluminum fin construction with an anti-corrosion blue fin coating rated for 500 hours of salt spray exposure. Wi-Fi control is factory installed, and a wireless remote with LCD display ships with the unit. AHRI Certificate 214810380 covers the system. Licensed HVAC technicians install this unit as the indoor component of a matched Sapphire R32 mini split system.

This indoor head is suited for residential and light-commercial single-zone applications where ductless delivery is required. It is rated for low ambient cooling down to -20 degrees F and low ambient heating down to -22 degrees F, making it appropriate for cold-climate installations. The unit is compatible with the GREE Sapphire R32 outdoor unit as part of a matched system and supports both single-zone and multi-zone configurations. Minimum circuit ampacity is 11 amps. Current draw is rated at 5.9 amps in cooling mode and 7.6 amps in heating mode.

Key Features

• 12,000 BTU/h cooling and heating capacity with DC inverter variable-speed operation
• R32 refrigerant with factory-installed refrigerant sensor for added safety
• SEER2 up to 28 and EER2 up to 15.2 for high-efficiency operation
• Low ambient cooling to -20 degrees F and heating to -22 degrees F
• Copper tube and aluminum fin indoor coil with blue anti-corrosion coating rated 500 hours salt spray
• Factory-installed Wi-Fi and included wireless remote with LCD display
• Auto-clean function on indoor unit

Compatibility

This unit is the indoor air handler for the GREE Sapphire R32 mini split line operating at 230 volts. It is designed for use with a matched GREE Sapphire R32 outdoor unit in single-zone or multi-zone configurations. AHRI Certificate 214810380 applies to the Sapphire R32 system.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Disconnect and lock out all electrical power before mounting the indoor head or making refrigerant connections. R32 is an A2L mildly flammable refrigerant — follow local codes and manufacturer guidelines for safe handling, and do not use an open flame near refrigerant lines during brazing without proper precautions. Line set sizing, mounting height, and condensate drainage must comply with the equipment installation manual and applicable local mechanical codes.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• SEER2: Up to 28
• EER2: Up to 15.2
• HSPF2: Up to 10
• Voltage: 230 volts
• Current Rating (Cooling): 5.9 amps
• Current Rating (Heating): 7.6 amps
• Minimum Circuit Ampacity: 11 amps
• Refrigerant: R32
• Low Ambient Cooling Range: -20 degrees F to 122 degrees F
• Low Ambient Heating Range: -22 degrees F to 86 degrees F
• Coil Material: Copper tube and aluminum fin with blue anti-corrosion coating
• Salt Spray Rating (Indoor Coil): 500 hours
• AHRI Certificate: 214810380

Standard Information

• Brand: GREE
• Manufacturer Part Number: SAP12HP230V1R32AH
