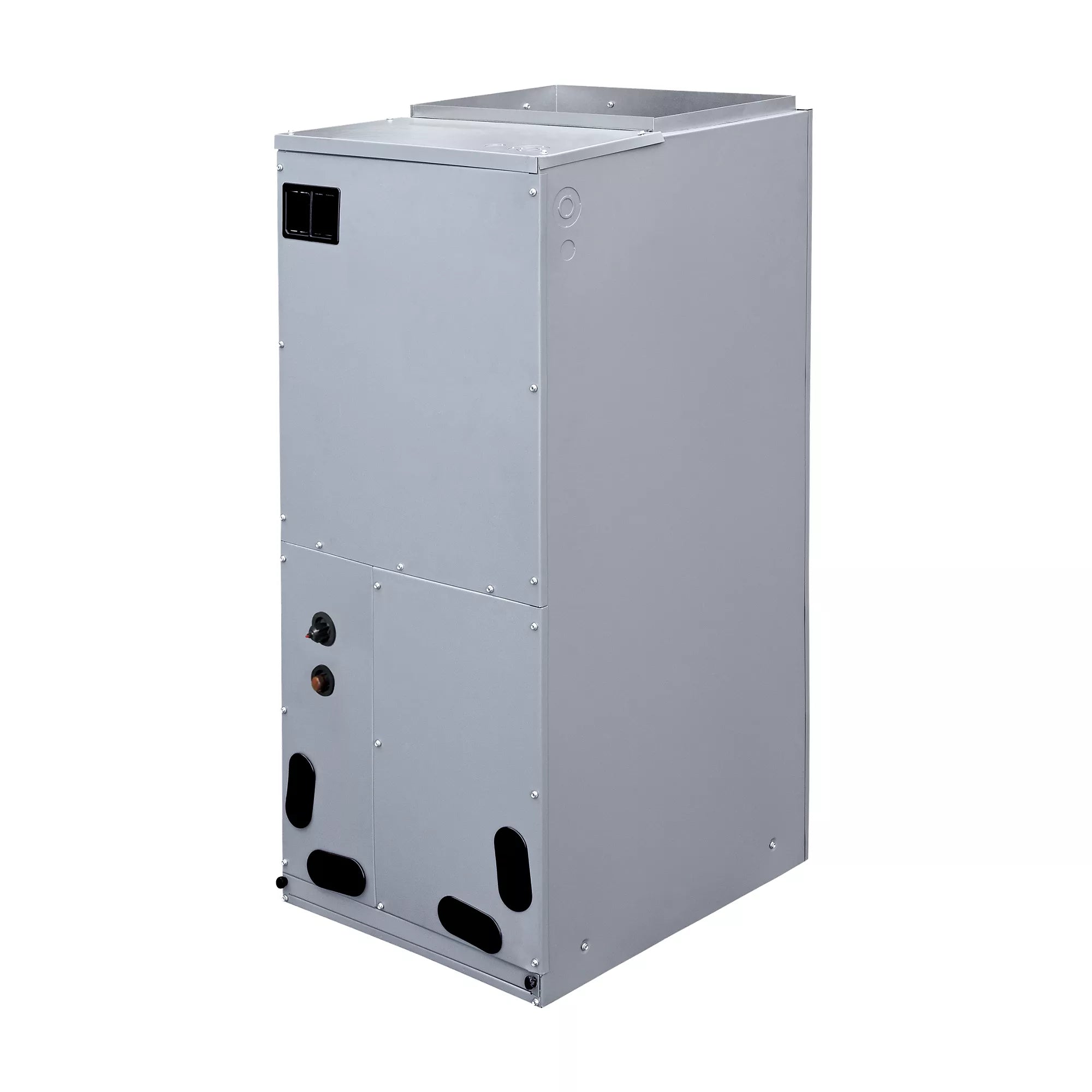

Gree GMV-ND24A/B-T(U) Air Handler Type Indoor Unit 24000 BTU 208-230 Vac 60 Hz Single Phase

Product Description

The GREE GMV-ND24A/B-T(U) is an Air Handler Type Indoor Unit designed for VRF heat pump systems. Operating on 208-230 Vac, 60 Hz, single phase power, this unit provides a cooling capacity of 24000 BTU and a heating capacity of 27000 BTU. It features a ducted multi-position mounting type and utilizes R-410A refrigerant, making it suitable for various indoor climate control applications requiring precise temperature management.

• Provides 24000 BTU cooling and 27000 BTU heating capacity for efficient climate control.
• Designed for ducted multi-position installation, offering flexible placement options.
• Operates with R-410A refrigerant and is ETL Listed for safety and performance.

Product Highlights

This indoor air handler unit offers versatile climate control with 24000 BTU cooling and 27000 BTU heating, suitable for ducted multi-position installations in VRF heat pump systems.

Product Information

Standard Information

• Brand: GREE
• Manufacturer Part Number: GMV-ND24A/B-T(U)
• Country of Origin: China

Technical Specifications

• AHRI Usage: Indoor AHU
• Brand: Gree
• CFM: 690-880
• Cooling Capacity: 24000 BTU
• Frequency: 60 Hz
• Energy Star Rated: No
• Equipment Type: VRF - Heat Pump
• ETL Listed: Yes
• Heating Capacity: 27000 BTU
• Liquid Line Size: 3/8" OD
• Mounting Type: Ducted Multi-Position
• Phase: Single
• Product Family: GMV5
• Refrigerant Type: R-410A
• Sound Level: 40-43 dBA
• Suction Line Size: 5/8" OD
• Tonnage: 2 Ton
• Input Voltage: 208-230 VAC
• UL Listed: No
• Product Type: Air Handler
