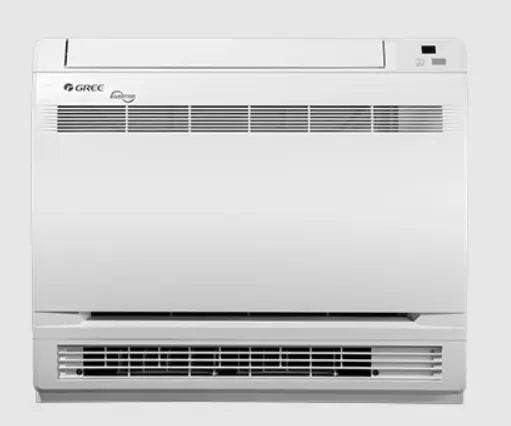

Gree CON12HP230V1R32AH Mini Console Mini Split Air Handler 12000 Btu/h 230V R-32 Single Zone

Product Description

The GREE CON12HP230V1R32AH is a low-profile mini console indoor air handler designed for single-zone mini split heat pump systems operating on R-32 refrigerant. Rated at 12,000 BTU/h at 47 degrees F, this unit runs on 208-230 volts, 1-phase, 60 Hz power and is engineered for both heating and cooling applications. The console-style form factor mounts low on the wall, making it a practical choice for spaces where a standard wall-mount or ceiling cassette unit is not feasible. Licensed HVAC technicians install this unit as the indoor half of a matched mini split system paired with a compatible outdoor condensing unit.

The CON12HP230V1R32AH is suited for residential and light commercial single-zone applications where low-profile installation is required — such as rooms with limited wall space above obstructions, sunrooms, additions, or server-adjacent spaces needing independent climate control. It is part of the GREE All Match Mini Console R32 product line and is rated for AHRI Certificate 215415566 under the Vireo R32 system designation. The unit covers a heating capacity range of 6,435 to 19,989 BTU/h and a cooling capacity range of 7,422 to 16,134 BTU/h depending on operating conditions.

Key Features

• 12,000 BTU/h nominal heating and cooling capacity at 47 degrees F outdoor ambient
• R-32 refrigerant — lower global warming potential than R-410A
• Low-wall console form factor for installations where overhead wall space is restricted
• 208-230V, 1-phase, 60 Hz electrical compatibility for standard residential and light commercial circuits
• Single-zone configuration with 1/2 inch suction line connection
• AHRI certified performance under the Vireo R32 system (Certificate 215415566)
• 7-year compressor and 5-year parts warranty coverage

Compatibility

The CON12HP230V1R32AH is part of the GREE All Match Mini Console R32 indoor unit lineup and is designed to pair with compatible GREE R-32 outdoor condensing units in single-zone configurations. Consult the GREE All Match system pairing guide to confirm outdoor unit compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling R-32 refrigerant. Disconnect and lock out all electrical power to the circuit before mounting the unit or making refrigerant line connections. The 1/2 inch suction line must be properly insulated and leak-tested after connection; follow the manufacturer service manual and applicable local mechanical codes for line set routing and support spacing. Do not operate the indoor unit without confirming the matched outdoor unit is properly commissioned and charged.

Technical Specifications

• Nominal Cooling/Heating Capacity: 12,000 BTU/h at 47 degrees F
• Capacity Range (Heating): 6,435 to 19,989 BTU/h
• Capacity Range (Cooling): 7,422 to 16,134 BTU/h
• Voltage: 208-230 volts
• Phase: 1-phase
• Frequency: 60 Hz
• Refrigerant Type: R-32
• Suction Line: 1/2 inch
• Number of Zones: 1
• Application: Heating and Cooling
• AHRI Certificate: 215415566 (Vireo R32)
• Compressor Warranty: 7 years
• Parts Warranty: 5 years

Standard Information

• Brand: GREE
• Manufacturer Part Number: CON12HP230V1R32AH
