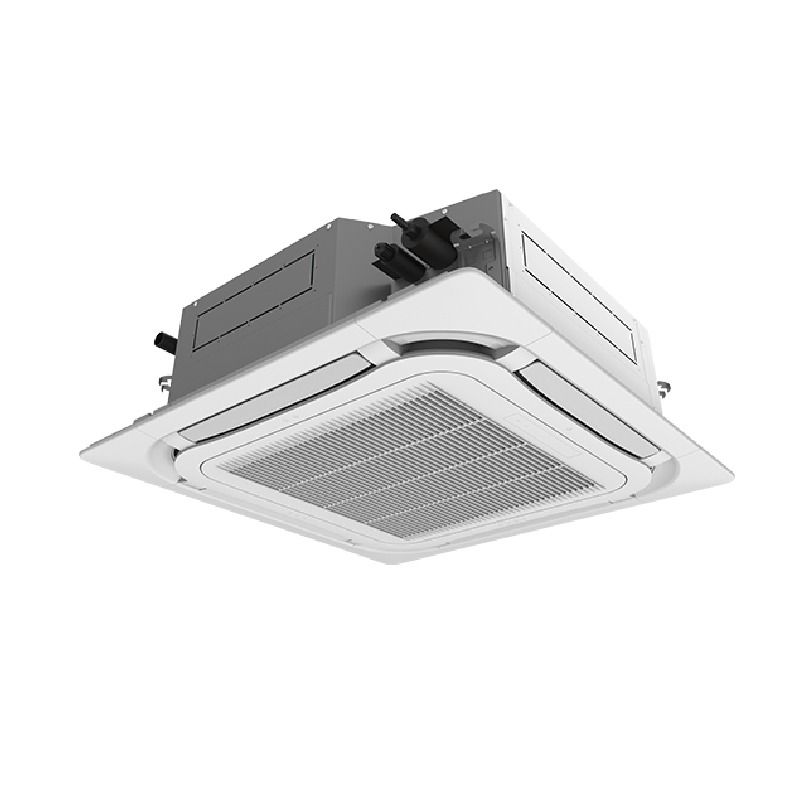

Gree CAS09HP230V1R32AH 360 Degree Ceiling Cassette Mini Split Indoor Unit 9000 Btu/h 230V R32

Product Description

The GREE CAS09HP230V1R32AH is a 9,000 BTU/h ceiling cassette indoor unit for mini-split heat pump systems, designed to operate on 230 volts with R32 refrigerant. It uses a centrifugal fan with 7 selectable speeds to distribute conditioned air in a full 360-degree pattern across a room, eliminating the directional limitations of wall-mount or floor-mount indoor units. Airflow ranges from 206 to 330 CFM, and the unit delivers a dehumidification rate of 2.96 pints per hour. A wired controller interface is standard. Licensed HVAC technicians install this unit as the indoor air handler in a compatible All Match or Multi21 R32 mini-split system.

This cassette is suited for residential and light-commercial applications where ceiling-flush installation is preferred for aesthetics or space constraints. Typical install scenarios include offices, hotel rooms, retail spaces, and open-concept residential areas where a 9,000 BTU/h cooling and heating load is appropriate. The unit pairs with compatible GREE outdoor units including the VIR09HP230V1R32AO, ENV09HP230V1R32AO, and SAP09HP230V1R32AO. It is powered entirely by the outdoor unit and carries no auxiliary electric heater. Intelligent defrost, intelligent preheating, low-voltage startup, and memory and power-failure recovery functions are built in.

Key Features

• 360-degree airflow pattern via centrifugal indoor fan with 7 fan speeds
• R32 refrigerant with indoor and outdoor blue-fin coating for corrosion resistance
• Intelligent defrost and intelligent preheating for reliable low-ambient performance
• Low-voltage startup and power-failure memory recovery for grid-sensitive installations
• G20 Ultra Low Frequency Torque Control inverter compressor technology via paired outdoor unit
• Power factor correction and basepan electric heater included on compatible outdoor units
• Self-diagnosis function with wired controller interface standard; WiFi not included

Compatibility

The CAS09HP230V1R32AH is compatible with GREE All Match and Multi21 R32 outdoor units, including the VIR09HP230V1R32AO, ENV09HP230V1R32AO, and SAP09HP230V1R32AO. This unit is the indoor air handler only and requires a separately sourced compatible outdoor unit to operate.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R32 refrigerant under applicable local and EPA Section 608 regulations. Power down the outdoor unit and disconnect all electrical supply before connecting or servicing the indoor unit. The cassette mounts flush in a suspended ceiling and requires a separately purchased ceiling panel; verify minimum clearance specifications from the submittal data before framing the ceiling opening. Do not operate the indoor unit without confirming proper refrigerant line sizing, line-set length limits, and condensate drain slope per the manufacturer service manual.

Technical Specifications

• Cooling and Heating Capacity: 9,000 BTU/h
• Power Supply: 208-230 volts
• Refrigerant: R32
• Airflow Range: 206 to 330 CFM
• Fan Speeds: 7
• Fan Type: Centrifugal
• Dehumidification: 2.96 pints per hour
• Airflow Pattern: 360 degrees
• Indoor Unit Dimension A: 24.406 inches
• Indoor Unit Dimension B: 22.828 inches
• Indoor Unit Dimension C: 22.4375 inches
• Indoor Unit Dimension D: 19.875 inches
• Indoor Unit Dimension E: 21.656 inches
• Indoor Unit Dimension F: 10.4375 inches
• Indoor Unit Dimension G: 5.516 inches
• Indoor Unit Dimension H: 20.859 inches
• Indoor Unit Dimension I: 20.859 inches
• Fin Coating: Blue Fin (indoor and outdoor)
• Auxiliary Electric Heater: None
• WiFi: Not included
• Wired Controller Interface: Yes

Standard Information

• Brand: GREE
• Manufacturer Part Number: CAS09HP230V1R32AH
