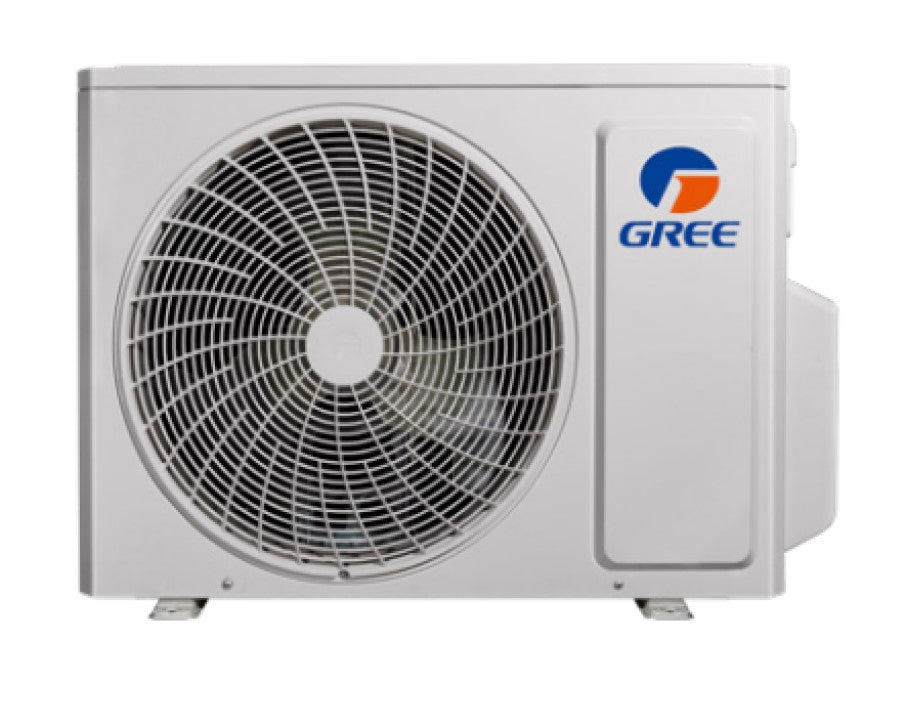

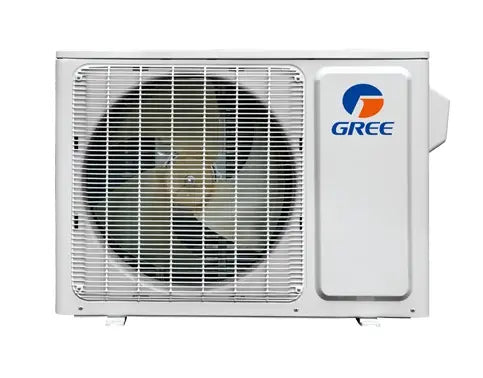

GREE 4LIV09HP115V1AO 9K Outdoor 115V

Product Description

The GREE 4LIV09HP115V1AO is a ductless single-zone outdoor unit designed for efficient heating and cooling. It has a cooling capacity of nine thousand one hundred BTU per hour and a heating capacity of ten thousand BTU per hour. This unit utilizes a GREE G-10 / 2 - STAGE INVERTER compressor and operates using a power supply of one hundred fifteen volts on a single-phase system. With its compact dimensions of twenty-eight and thirteen sixteenths inches by twenty-one and seven eighths inches by thirteen inches, it blends well into various installations.

• High efficiency with up to twenty SEER2 and eight point eight HSPF2.
• Precise airflow control to meet specific needs.
• Built-in WiFi for convenient remote operation.

Product Highlights

This outdoor unit offers reliable performance with innovative features like WiFi connectivity and auto-clean capabilities.

Product Information

Standard Information

• Application: Ductless Single-Zone Outdoor Unit
• Cooling Capacity (Btu/h): 9100
• Heating Capacity (Btu/h): 10000

Technical Specifications

• SEER2 / EER2: 19.5 / 11.3
• HSPF2 / COP: 8.6 / 3.6
• Cooling Temperature Range °F: 0 - 115
• Heating Temperature Range °F: -13 - 75
• Compressor Type: GREE G-10 / 2 - STAGE INVERTER
• Sound Pressure Level (Cooling / Heating) dB(A): 51
• Unit Dimension (WxHxD) Inch: 28 13/16 x 21 7/8 x 13
• Refrigerant Charge - R410A oz: 24.3
• Coil Type: Aluminum Fin-Copper Tube / Acrylic Resin Protection
• Line Set Size (Liquid - Gas): 1/4 - 3/8
• System Power Supply: 115V / 1PH / 60 HZ
• System Rated Current Cooling: 17.5
• System Rated Current Heating: 18
• System MCA: 16
• System MOCP: 20
• Interconnecting Wire Size: 14 / 4
