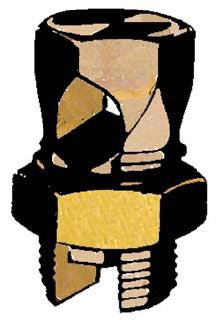

Greaves A11 2-2/0 Cu Split Bolt Connector

Product Description

The Greaves A11 2-2/0 Cu Split Bolt Connector is designed for effective and secure electrical connections. This solderless connector accommodates a maximum run conductor size of two-aught AWG stranded. It is made from copper alloy, ensuring durability and reliability in various applications.

• Solderless service entrance type connector
• Accommodates two-aught to twelve AWG stranded conductors
• Utilizes split bolt installation for enhanced connectivity

Product Highlights

This connector is suitable for electrical installations where maintaining integrity and safety is essential. It is UL approved and provides a torque rating of 385 inch-pounds.

Product Information

Standard Information

• Manufacturer: Greaves Corporation
• UPC: 78449110430

Technical Specifications

• Max Run Conductor Size: 2/0 AWG stranded
• Min Tap Conductor Size: 12 AWG stranded
• Max Tap Conductor Size: 2/0 AWG stranded
• Material: Copper alloy
• Installation Type: Split bolt
• Torque Rating: 385 inch-pounds
• Model: A Model
• Sub-Category: Mechanical Single Cable Tap
