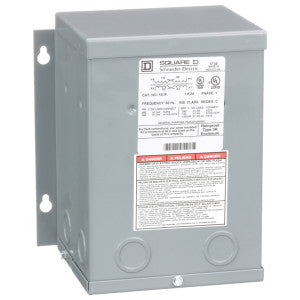

Graybar 1S1F Transformer, Dry Type, Encapsulated, 1kVA, 1 Phase

Product Description

The GRAYBAR 1S1F is a general purpose 1-phase 1 kVA dry-type transformer with a primary voltage of 240 x 480V and a secondary voltage of 120/240V. The resin-filled transformer is epoxy encapsulated, making it suitable for indoor or outdoor use. Its core-and-coil assembly is embedded in epoxy resin and wall mounted for maximum protection. The enclosure is NEMA 3R rated.

• Resin Encapsulated Transformers
• General purpose transformers accommodate voltage systems world wide
• Complies to UL & CSA standards

Product Highlights

Epoxy encapsulated resin-filled transformer with NEMA 3R enclosure suitable for indoor or outdoor use. Complies to UL & CSA standards.

Product Information

Standard Information

• Brand: GRAYBAR
• Manufacturer Part Number: 1S1F
• Country of Origin: Unknown

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121001
• NEMA Rating: 3R
• Material: Painted Sheet Steel
• Mounting Type: Wall
• Primary Voltage: 240 x 480V
• VA Rating: 1 kVA
• Height: 8.13 in.
• Depth: 5.31 in.
• Width: 6.94 in.
