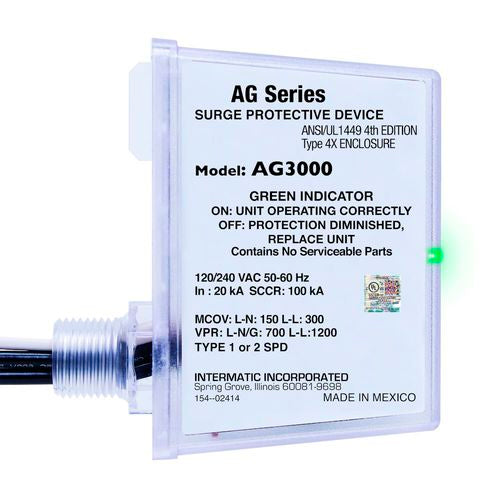

GRASSLIN AG3000 Surge Protective Device

Product Description

The GRASSLIN AG3000 is a surge protective device designed for HVAC equipment and home appliances. It offers protection through three modes: L-G, L-L, and L-N. The device includes TPMOV surge protection technology, ensuring reliable performance and safety. A green LED indicator displays the device's protection status. The plastic enclosure meets Type 4X rating, indicating it is watertight and UV resistant. This device is also UL Listed to ANSI/UL 1449.

• Provides surge protection for HVAC equipment and appliances.
• Features a Type 4X rated enclosure suitable for outdoor use.
• Utilizes TPMOV surge protection technology for enhanced reliability.

Product Highlights

Use the GRASSLIN AG3000 to safeguard HVAC systems and household appliances from surges, ensuring their longevity and reliability.

Product Information

Standard Information

• Brand: GRASSLIN
• MPN: AG3000

Technical Specifications

• Voltage: 120/240 VAC Single-Phase
• Maximum Surge Current Rating Per Phase: 50 kA
• Nominal Discharge Current: 20 kA
• Modes of Protection: 3 (L1-N, L2-N, L1-L2)
• Surge Protection Type: Type 1, Type 2
• Enclosure Type: Indoor/outdoor type 4X
• Material: Plastic
• Maximum Continuous Operating Voltage (L1-N/G): 150
• Maximum Continuous Operating Voltage (L-G): 150
• Maximum Continuous Operating Voltage (L-L): 300
• Short Circuit Current Rating: 100 kA
• Surge Protection LED Indicator: Green, Red
• Surge Protection Technology: TPMOV
• UL Standard: ANSI/UL 1449 4th/5th Edition
• UL Certification: cULus, UL
• Voltage Protection Rating (L1-N/G): 700
• Voltage Protection Rating (L-L): 1200
• Wire Size Max: #10 AWG, Tinned Copper
• Wiring Option: Wire leads
• Operating Temperature Max (°C): 70
• Operating Temperature Max (°F): 158
• Operating Temperature Min (°C): -40
• Operating Temperature Min (°F): -40
• Product Depth (in): 4.188
• Product Height (in): 3.875
• Product Width (in): 1.625
• Phase: Single
