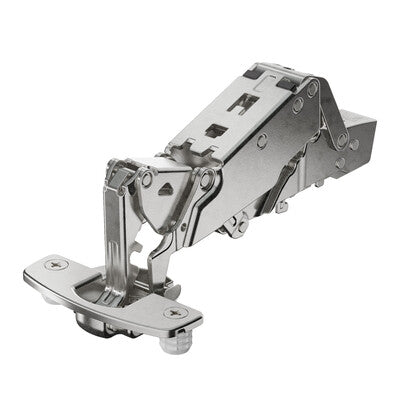

Grant 9099561 Sensys Cabinet Hinge, Full Overlay, 165° Opening

Product Description

The GRANT 9099561 Sensys soft close cabinet hinge features a 165° opening angle and full overlay design. It's a clip-on hinge with eccentric cams for door overlay and depth adjustment. The 35 mm cup press-on version matches the Blum hole pattern and has a shallow profile for doors as thin as 15 mm. Cup hole is drilled to 12.8 mm.

• Overlay adjustment via cam +2 mm / -2 mm
• Depth adjustment via cam +3 mm / -2 mm
• Height adjustment via mounting plate
• Door thickness: 15 mm - 22 mm

Product Highlights

Sensys cabinet hinge with soft close, 165° opening angle, and full overlay. Features cam adjustments for overlay and depth.

Product Information

Standard Information

• Brand: GRANT
• Manufacturer Part Number: 9099561

Technical Specifications

• Opening Angle: 165°
• Overlay: Full Overlay
• Cup Diameter: 35 mm
• Door Thickness: 15 mm - 22 mm
