Grant 1133363 hardware set TopLine Grant® 72-138

Product Description

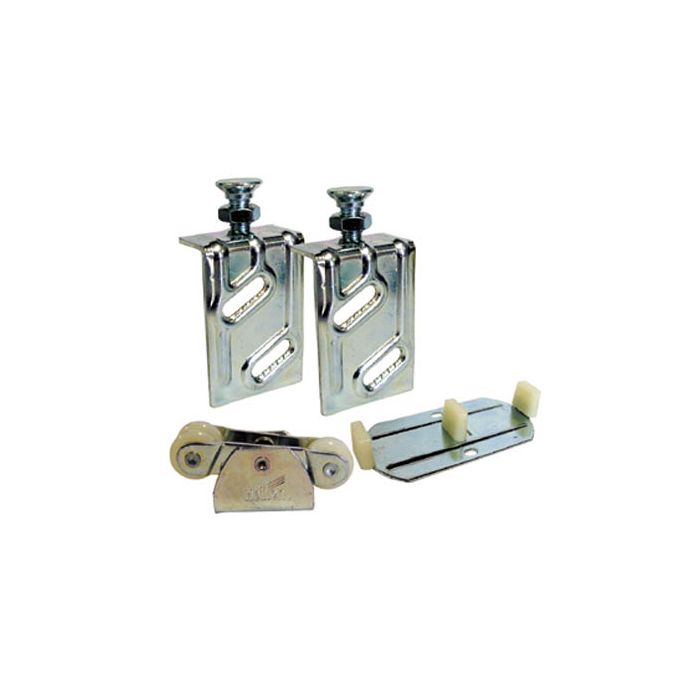

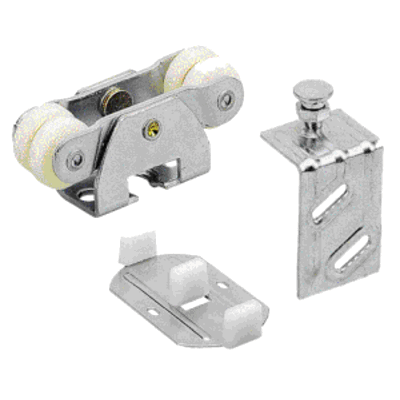

The GRANT 1133363 is a hardware set TopLine Grant® 72-138. This set of fittings comes without a profile and includes 4 carriers 7000 precision ball bearing wheels, 4 aprons 7138, 1 floor guide 117, 1 wrench, necessary screws, and installation instructions. It is designed for medium-duty commercial and residential sliding door applications.

• Set of fittings without profile
• 4 carriers 7000 precision ball bearing wheels
• For doors up to 150 Lbs.

Product Highlights

This hardware set is ideal for doors between rooms, closet doors, cabinets, storage walls, and partitions. Conforms to ANSI/BHMA standards, Grade 1.

Product Information

Standard Information

• Brand: GRANT
• Manufacturer Part Number: 1133363
• Country of Origin: USA

Technical Specifications

• Order no.: 1133363
• Set Includes: (4 ea.) Carriers 7000 ball bearing wheels (4 ea.) Aprons 7138 (1 ea.) Floor Guide 117 All Fixing Screws Wrench
• Applications: Medium duty commercial and residential sliding door hardware for bypass applications. Used on doors between rooms, closet doors, cabinets, storage walls and partitions.
• Door Weight: For doors up to 150 Lbs.
• Door Thickness: For 1 3/8" (34.9 mm) thick doors.
• Track: Sold separately. Used in conjunction with 7003 Double Track. To purchase this set with track included, see our Hettich TopLine Grant 72-138 Sliding Door Set
• Wheels: High quality precision ball-bearing wheels for smooth performance.
• Track Mounting: Track is mounted to header.
• Carrier Mounting: Carriers are mounted to the side of the door.
• Headroom: 1 7/8" (47.6 mm) minimum - 2 1/8" (53.9 mm) maximum, serrations in apron allow for vertical adjustment.
• Certifications: Meets and/or exceeds ANSI/BHMA standards. Made in the USA.
• Optional Components: Bumper stop (7014), Carrier (7000) for doors up to 100 Lbs. To order, please contact us or call our office at (845) 388-1300.
• MPN: 1133363
• Manufacturer: Hettich
• SKU: 12505
• Manufacturer's Part: 1133363
• Weight: 1.436 lbs
• Product Type: Sliding Door Hardware Set
• Product Finish: Steel
• Includes: (4) carriers 70000-BB, (4) aprons 7138, (1) floor guide 117, (1) wrench, screws and instructions
• Material: Steel/Nylon
• Application: 1-3/8" Thick Sliding Doors up to 150 lbs
• Size: 1-3/8" doors
• Type: Sliding Door Hardware
• Fixings Supplied: Yes
• Finish: Bright zinc-plated
• Suitable For: Sliding Door
• Country of Origin: India
• Box Quantity: 1
• Mounting Type: Side Mount
• Thickness: 1-3/8"
• Weight Capacity: 150lb
