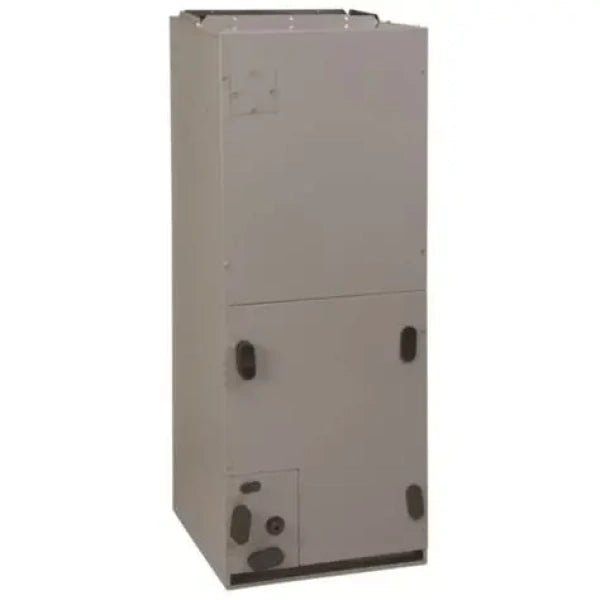

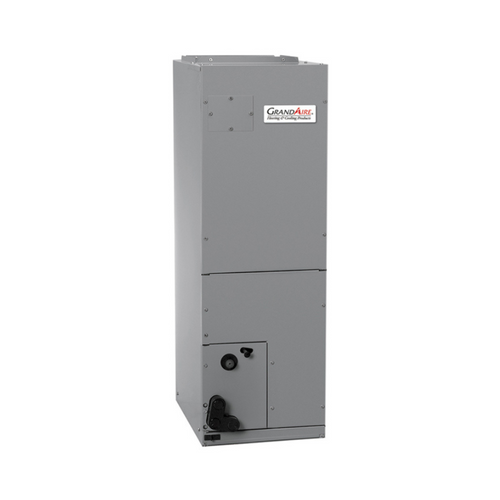

Grandaire WCHL245AB 2 Ton SEER2 Straight Cool Air Handler 208-230V

Product Description

The GrandAire WCHL245AB 2 Ton SEER2 straight cool air handler is built for reliability, quiet operation, and long-term energy efficiency. Designed for 208-230V single-phase power and utilizing the latest R-454B refrigerant, this unit is fully SEER2 compliant for 2025 standards and beyond. It features a multi-position design for upflow, downflow, or horizontal applications.

• SEER2 compliant for 2025 standards
• High-efficiency ECM blower motor
• TXV metering device
• Multi-position design for flexible installation

Product Highlights

This GrandAire air handler offers flexible installation and durable cabinet construction, making it a top choice for residential cooling systems.

Product Information

Standard Information

• Brand: GRANDAIRE
• Manufacturer Part Number: WCHL245AB

Technical Specifications

• Brand: GrandAire
• Cooling Capacity: 24,000 BTU (2 Ton)
• Voltage: 208-230V / 1-Phase / 60Hz
• Refrigerant: R-454B
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Blower Motor HP: 1/2 HP
• Blower Speeds: Multi-Speed
• Air Flow Configuration: Multi-Position (Upflow, Downflow, Horizontal)
• Metering Device: TXV / TEV
• Includes Filter Rack: Yes
• Filter Size: 16" x 20"
• Cabinet Width: 17.5"
• Liquid Line Size: 3/8" OD (Sweat or Braze)
• Cycle: 60 Hz
• Energy Star Rated: No
• AHRI Use: Indoor AHU
• Equipment Type: Straight Cool Air Handler
• Condition: New
• Operation: Cooling Only
• Low GWP: A2L Compatible
• Compressor: Scroll
