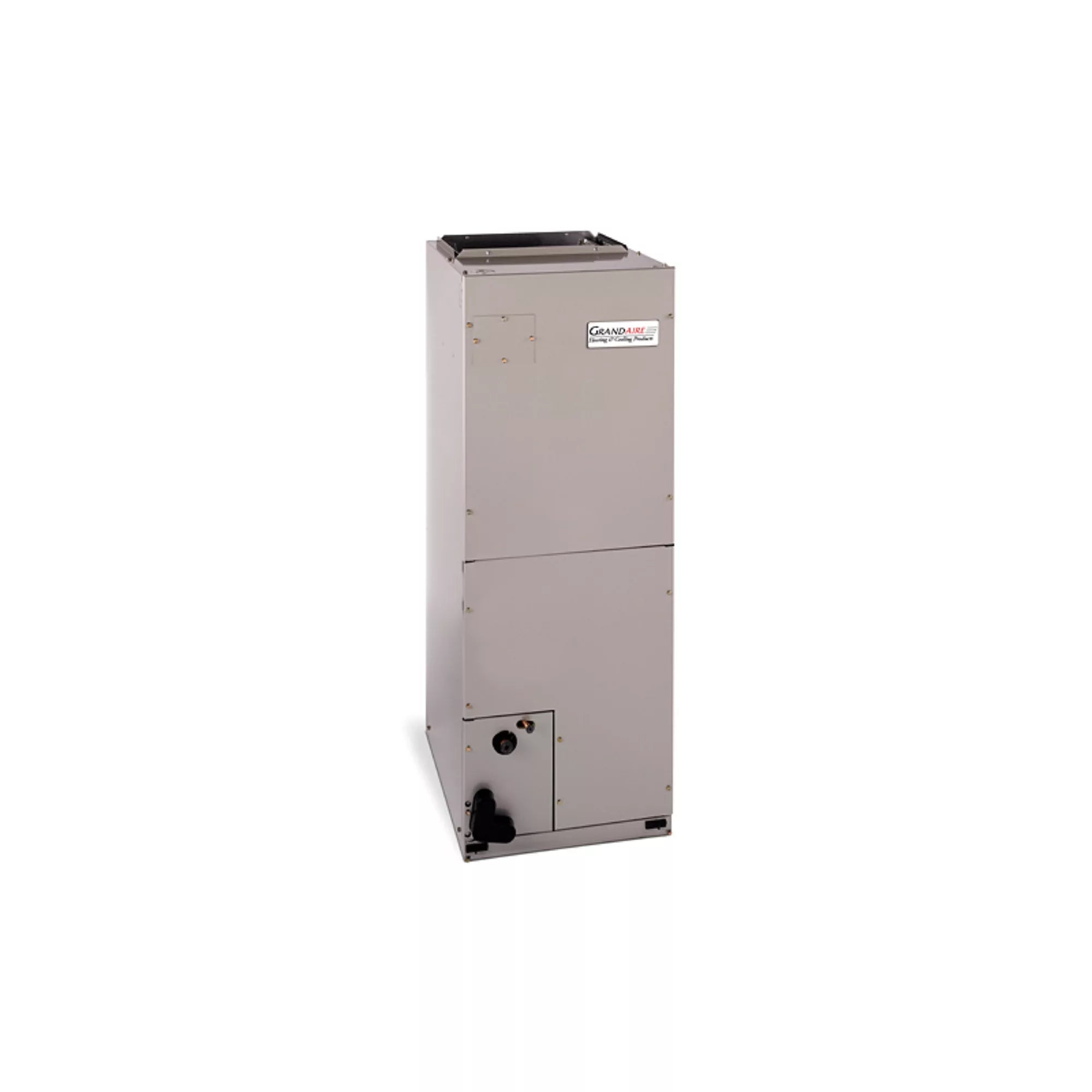

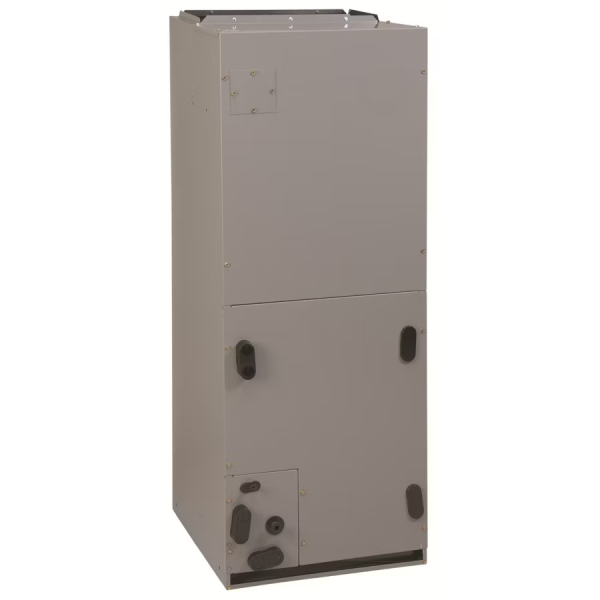

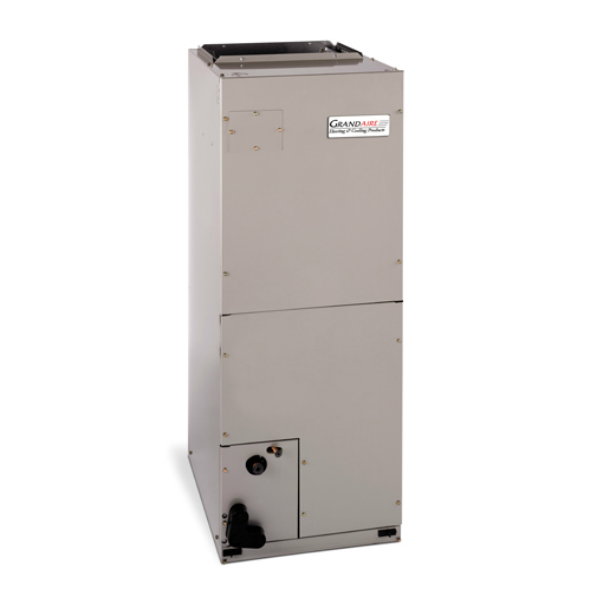

Grandaire WAXL244A Air Handler 2 Ton Multi-Position

Product Description

The GRANDAIRE WAXL244A air handler is designed for multi-position installation and utilizes environmentally sound R-410A systems. This 2 ton air handler features a TXV metering device factory installed and sweat connections. It also has primary and secondary drain fittings with brass inserts and a 3 amp automotive type fuse in wire harness.

• Environmentally Sound R-410A systems
• Multiposition installation - Upflow or horizontal left standard.-Horizontal right with minor modification.-Field convertible to downflow with available accessory kit.
• TXV metering device factory installed

Product Highlights

This GRANDAIRE air handler offers multiple electrical entry locations and a time delay relay programmed in motor. Field installed heater packages from 5 kW - 30 kW are available separately.

Product Information

Standard Information

• Brand: GRANDAIRE
• Manufacturer Part Number: WAXL244A

Technical Specifications

• CFM: 800
• UOM: EA
• Brand: GrandAire
• Phase: Single
• Stage: Single
• Width: 17.625
• Height: 49.625
• Length: 22.0625
• Prop 65: No
• Tonnage: 2
• Voltage: 208-230 VAC
• OPT Code: 1PWAXL244A
• UL Listed: Yes
• ETL Listed: No
• Cycle/Hertz: 60 Hz
• Filter Size: 16 3/8" x 21 1/2
• Refrigerant: R-410A
• AHRI - Usage: Indoor AHU
• Cabinet Width: 17.63
• Package Width: 17.625
• UL Recognized: Yes
• Equipment Type: Heat Pump
• Package Height: 49.625
• Package Length: 22.0625
• Package Weight: 122
• Product Family: WAXL
• Blower Motor HP: 1/3 HP
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Cooling Capacity: 24000
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Energy Star Rated: No
• Air Flow Direction: Multi-Position
• Blower Motor Speeds: 5 (Five)
• Includes Filter Rack: Yes
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 5/8"
• Electric Heat Range [kW]: 5-20
• Liquid Line Fitting Type: Sweat or Braze
• Drain Connection Quantity: 2
• Suction Line Fitting Type: Sweat or Braze
• Maximum Overcurrent Protection (MOCP): 15
• Model: WAXL244A
• Product Height (in): 49.625
• Configuration: Floor Mounted
• Product Width (in): 17.625
• Blower Motor: Variable Speed
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 15 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Suction Line Size: 5/8 inch
• System Application Type: Central Split Systems
