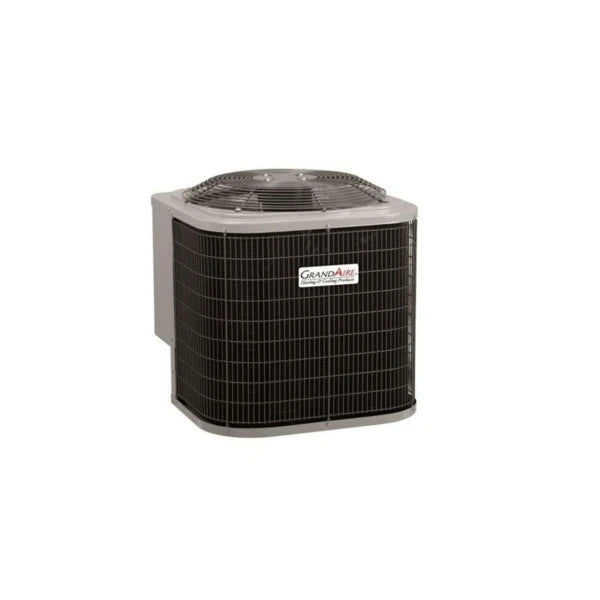

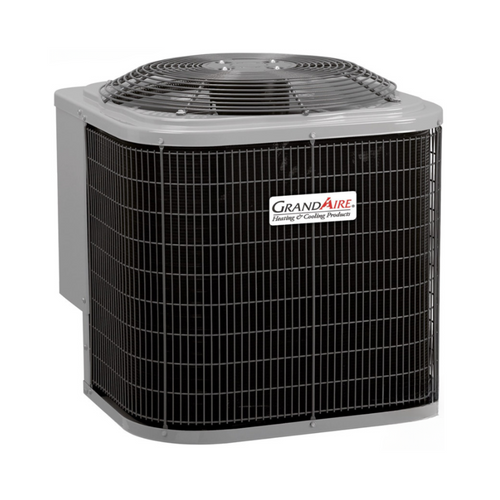

Grandaire W5A5S60AKAWA Condenser 5 Ton

Product Description

The GrandAire W5A5S60AKAWA Condenser is a 5 Ton straight cool outdoor unit built for powerful cooling performance and durability. Operating at 15 SEER2, this condenser is an excellent choice for energy efficiency. Designed for use with R-454B refrigerant, it meets the latest environmental regulations. The W5A5S60AKAWA features a scroll compressor for smooth, quiet operation and high durability.

• 5 Ton straight cool condenser
• 15 SEER2 performance
• R-454B refrigerant

Product Highlights

The W5A5S60AKAWA pairs with compatible GrandAire air handlers or coils to complete a full system. Installation and servicing are made easy with accessible service valves and contractor-friendly wiring access.

Product Information

Standard Information

• Brand: GRANDAIRE
• Manufacturer Part Number: W5A5S60AKAWA

Technical Specifications

• Brand: GrandAire
• Model: W5A5S60AKAWA
• Cooling Capacity: 5 Ton (60,000 BTU)
• SEER2 Rating: 15
• Refrigerant: R-454B
• Compressor Type: Scroll
• Motor Type: PSC (Permanent Split Capacitor)
• Voltage: 208-230V
• Airflow: 3,890 CFM
• Sound Level: 76 dBA
• Phase: Single
• Operation: Cooling Only
• Low GWP: A2L Compatible
• Tonnage: 5.0 Ton
• System Type: Air Conditioning
• Category: Condensers
• Electrical Phase: 1-Phase
