Grand Canyon EIS Electronic Ignition System 200K BTU

Product Description

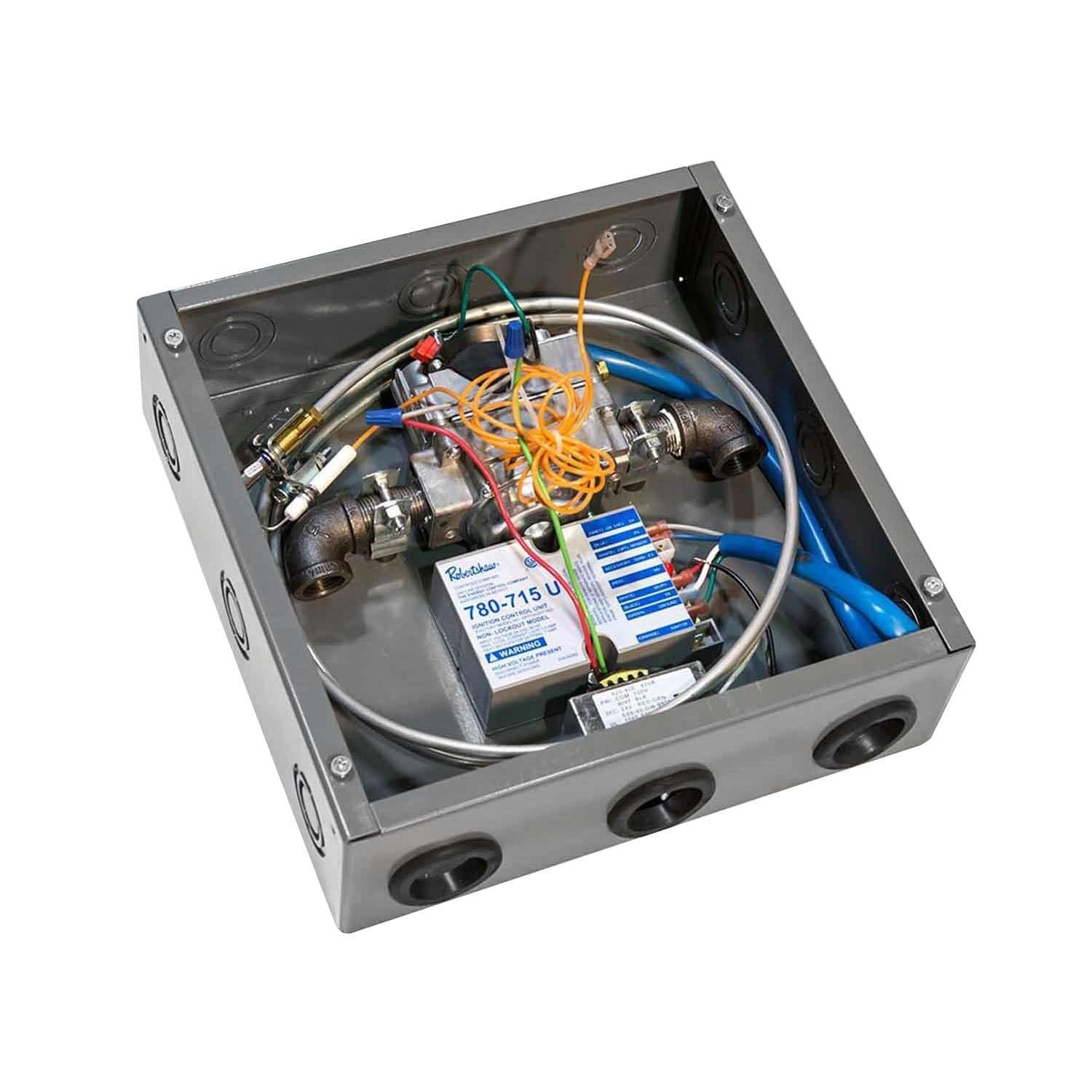

The Grand Canyon EIS 110V Indoor Electronic Ignition System provides a premium standard capacity electronic ignition system for your gas appliance. Designed to mount within three feet of the firebox, it's ideal for new builds and remodels. Includes either a 6-foot or 10-foot pilot assembly lead and a 200K BTU valve for premium performance. A transformer and control module are located inside the metal box.

• Fuel Type - Natural Gas or Propane
• Pilot Assembly Lead Length - 6-foot or 10-foot
• Electronic Ignition System - Safely light your burner and control your flame height with the turn of a knob

Product Highlights

Electronic ignition system with 200,000 max BTU, designed for Grand Canyon Jumbo sets and other larger front view and see-through burners. Features a non-standing pilot and in-wall design.

Product Information

Standard Information

• Brand: GRAND CANYON
• Manufacturer Part Number: EIS

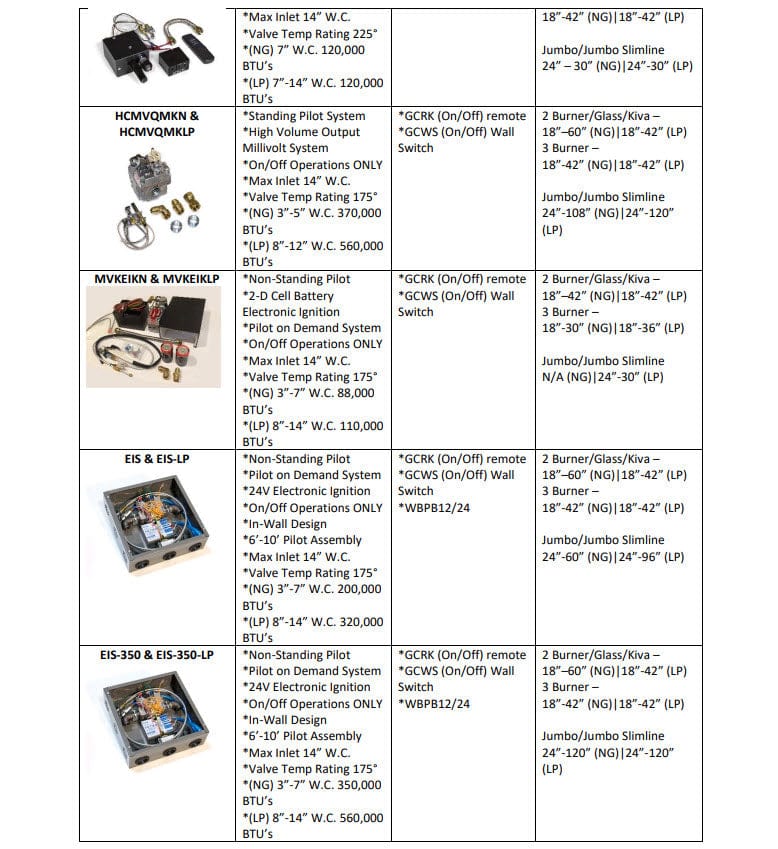

Technical Specifications

• Manufacturer: Grand Canyon
• SKU Number: EIS-LP and EIS-LP-10
• Max Inlet: 14” W.C.
• Valve Temp: 175°
• BTU: 200,000
• For Use With (Burner Model): 2-Burner / Glass / Kiva - 18" to 42", 3-Burner - 18" to 42" and Jumbo / Jumbo Slimline - 24" - 96" (LP)
• Pilot Type: Non-Standing Pilot, Pilot on Demand
• Ignition: 24V Electronic Ignition
• Operations: On/Off Operations ONLY
• Design: In-Wall Design
• Pilot Assembly: 6’-10’
