GRACE ENGINEERED PRODUCTS R-3W-L Voltage Vision Indicator

Product Description

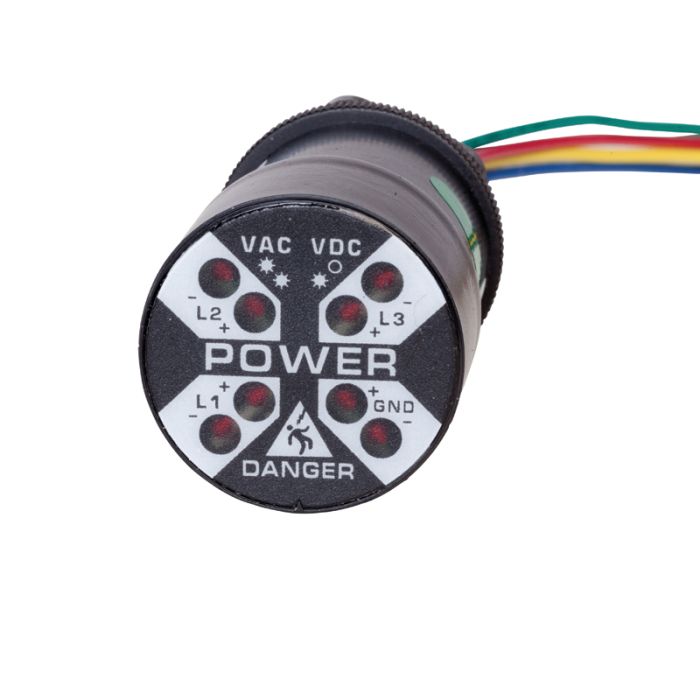

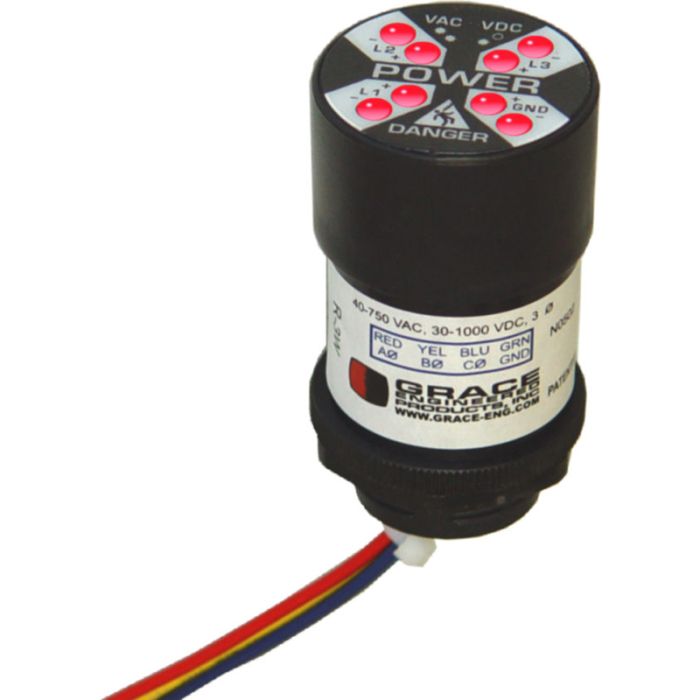

The GRACE ENGINEERED PRODUCTS R-3W-L Voltage Vision Indicator is designed to detect AC or DC voltage. This indicator features flashing LEDs that signal voltage presence within a range of 40-750VAC and 30-1000VDC. It is built with potted components and redundant circuitry, ensuring resistance against surges and phase insensitivity. With a design that encourages external mounting on a door or flange, it uses a 30mm pushbutton or pilot hole for installation. Its UL type 4X listing makes it suitable for diverse environments. Included in the kit are the voltage indicator and a warning label.

• Indicates voltage with flashing LEDs in the ranges of 40-750VAC and 30-1000VDC.
• Facilitates external mounting through a 30mm pushbutton or pilot hole.
• Offers environmental protection with UL type 4X certification.

Product Highlights

This voltage indicator is ideal for those needing reliable voltage detection in various applications.

Product Information

Standard Information

• Part Number: R-3W-L-KIT

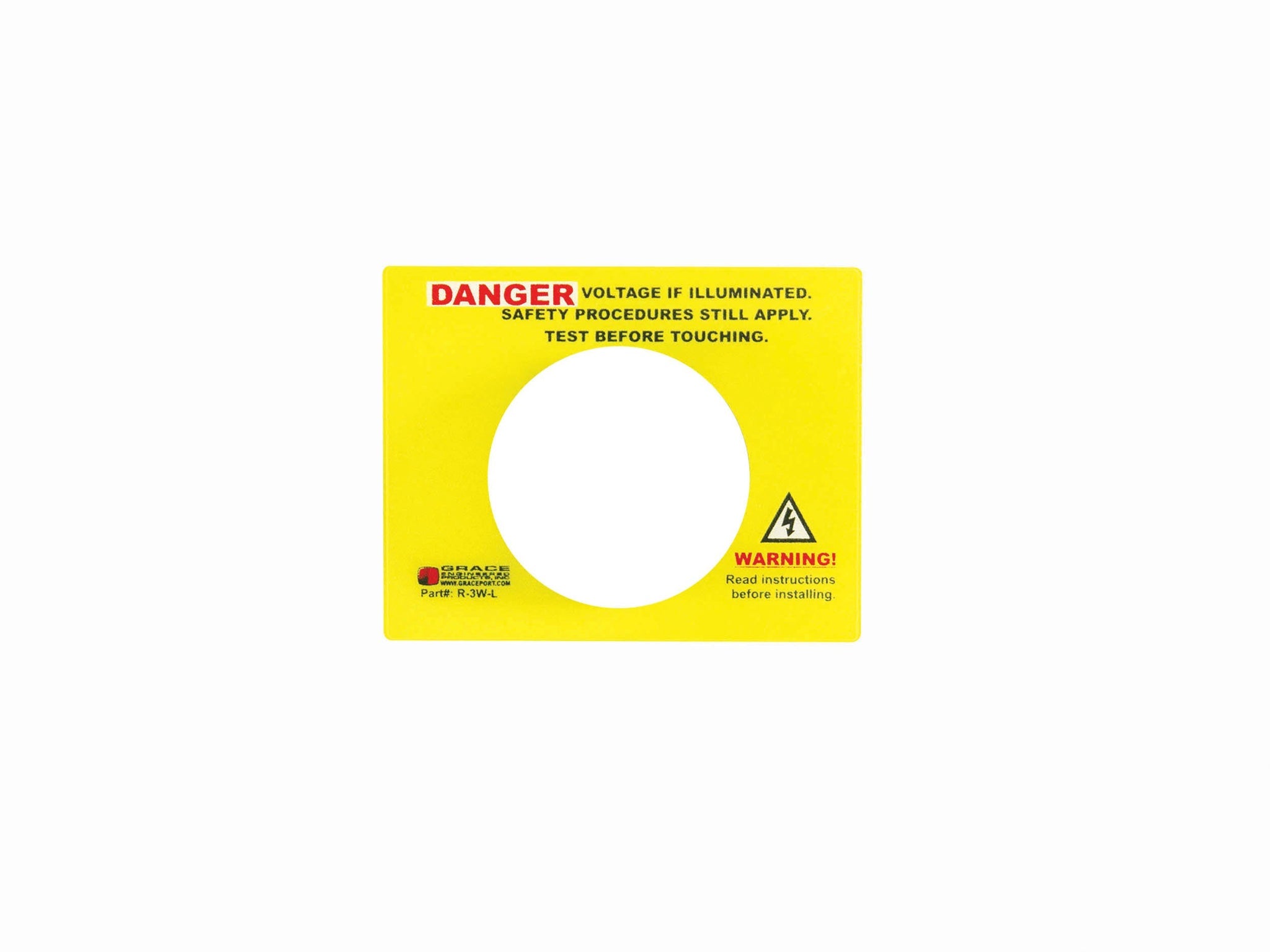

• Includes: Voltage Indicator with Flashing LEDs and Warning Label

Technical Specifications

• Voltage Type: AC and DC
• Operational Voltage Range: 40-600VAC 50/60Hz, 30-1000VDC
• Storage Temperature Range: -45 degrees Celsius to +85 degrees Celsius
• Operational Temperature Range: -20 degrees Celsius to +55 degrees Celsius
• Lead Connections: 3 Phase, 4 Wire
• Installation: 30mm Pushbutton Hole
• Mounting Location: External (Door/Flange Mounted)
• Country of Origin: Taiwan
• Width: 3 inches
• Height: 2.35 inches
