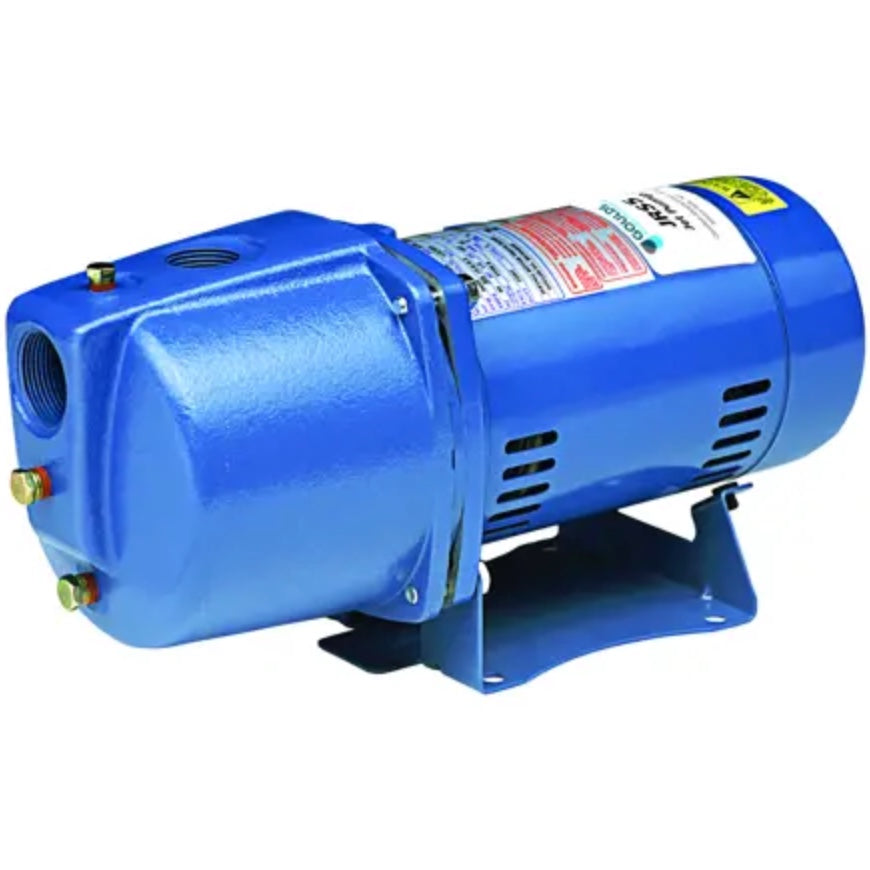

Goulds Pumps Inc JRS10 JRS Series Shallow Well Jet Pump 1 HP

Product Description

The Goulds Pumps Inc JRS10 JRS Series Shallow Well Jet Pump is designed for boosting water in residential homes and cottages. This pump features a back pullout design for easy service and an integral shallow well jet built directly into the casing.

• Back pullout design allows disassembly without disturbing piping.
• Integral shallow well jet (nozzle and venturi) built into the casing.
• Designed specifically for shallow well applications.

Product Highlights

Ideal for residential and cottage use, this pump offers robust performance with a suction lift capability of up to twenty-five feet.

Product Information

Standard Information

• Brand: Goulds
• MPN: JRS10

Technical Specifications

• Housing Material: Cast Iron
• Rated Power: 1 hp
• Pump Body: Cast iron casing with Stainless Steel wear ring
• Motor: 1 HP, Nema service factors
• Voltage: 115/230V
• Phase: Single
• Hertz: 60
• Shaft: Stainless Steel
• Shaft Seal: Standard Mech. Seal is Buna/Carbon/Ceramic
• Impeller Type: F.D.A. compliant, glass filled Noryl
• Ports: 1-1/4 inch NPT suction, 1 inch NPT discharge
• Rotation: Clockwise when viewed from motor end
• Maximum Temperature: 140 degrees Fahrenheit
• Width: 9.15 inches
• Height: 8 inches
• Certifications: CSA certified
• Pump Casing Material: Cast Iron
• Impeller Material: Glass-Filled Engineered Composite (FDA Compliant)
• Maximum Operating Flow Rate: 27 gpm
• Maximum Water Temperature: 140 Degrees F
• Duty Cycle: Continuous
• Speed: 3500 rpm
• Frequency: 60 Hz
• Suction: 1-1/4 inch NPT
• Discharge: 1 inch NPT
• Pressure switch preset: 30-50 PSI
