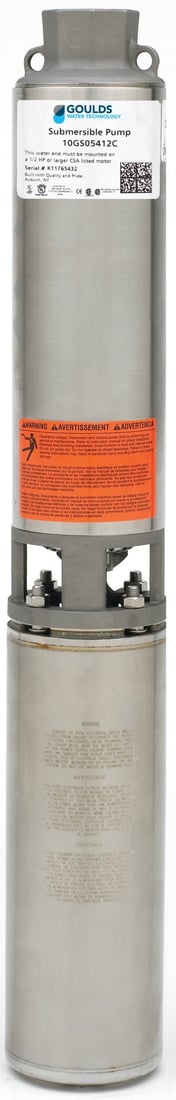

Goulds Pumps Inc 10CS07422C 4 CS Series Submersible Well Pump

Product Description

The Goulds Pumps Inc 10CS07422C is a four-inch submersible well pump ideal for wells with a diameter of four inches or larger. It is powered by a CentriPro motor and constructed with stainless steel for durability and corrosion resistance. This pump is engineered to handle sand efficiently and can operate continuously without risking motor damage. Key features include:

• AISI 304 stainless steel construction for superior strength
• A two-wire PSC motor design
• Built-in check valve for improved functionality

Product Highlights

The Goulds Pumps Inc 10CS07422C is suitable for water systems and ensures reliable performance across a range of applications.

Product Information

Standard Information

• Brand: Goulds
• MPN: 10CS07422C

Technical Specifications

• Series: GS
• Product Type: Submersible well pump
• Motor Horsepower: 0.75 HP
• Input Voltage: 230V
• Pump Phase: 1
• Frequency: 60 Hz
• Speed: 3450 rpm
• Stages: 10
• Minimum Well Size: 4 inches
• Discharge Connection: 1-1/4 NPT
• Flow Rate: 10 gpm
• Best Efficiency Flow: 10 gpm
• Pump Body Material: Stainless Steel
• Impeller Material: Noryl
• Cable Guard: AISI 304 stainless steel
• Thermal Protection: Yes
• UL Listed: Yes
