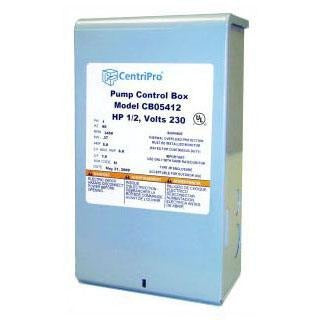

Goulds cb05412 Pump Control Box 0.5 Hp 230V Quick Disconnect

Product Description

The GOULDS cb05412 is a quick-disconnect pump control box rated at 0.5 HP and 230 volts, designed for use with three-wire submersible pump installations. The NEMA 3R enclosure suits both indoor and outdoor mounting locations. Internal components include a start capacitor and a voltage relay, which provide motor starting assistance and protect the pump from voltage irregularities. The quick-disconnect cover design allows fast access during service calls and retrofits with other Q-D style control boxes already in the field. Licensed pump installers and water-system service technicians are the primary installers of this unit.

The cb05412 is used on submersible pump applications where a three-wire motor circuit requires a separate control box to house the run and start capacitor components. It is suited to residential and light commercial well water systems. The unit is compatible with CentriPro submersible pumps and is built to UL standards for both the United States and Canada, making it appropriate for installations on either side of the border. Its compact overall footprint keeps panel and pump house installations clean and organized.

Key Features

• Quick-disconnect cover design retrofits with other Q-D control boxes already installed in the field
• NEMA 3R enclosure rated for indoor or outdoor mounting
• Voltage relay included for installer convenience and motor protection
• Start capacitor included — no separate component sourcing required
• Dual knockouts and two ground terminals included for field wiring flexibility
• UL listed to both Canadian and US standards

Compatibility

Designed for use with CentriPro submersible pumps requiring a three-wire, 230-volt, 0.5 HP control box. The quick-disconnect cover will retrofit with other Q-D style control boxes.

Installation Notes

Installation should be performed by a licensed pump installer or qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out power at the breaker before opening any existing control box or beginning wiring work. Verify that fuse or breaker sizing matches the 20-amp fuse clip rating of this box. Do not exceed the 0.5 HP and 230-volt ratings of this control box when selecting a replacement application.
