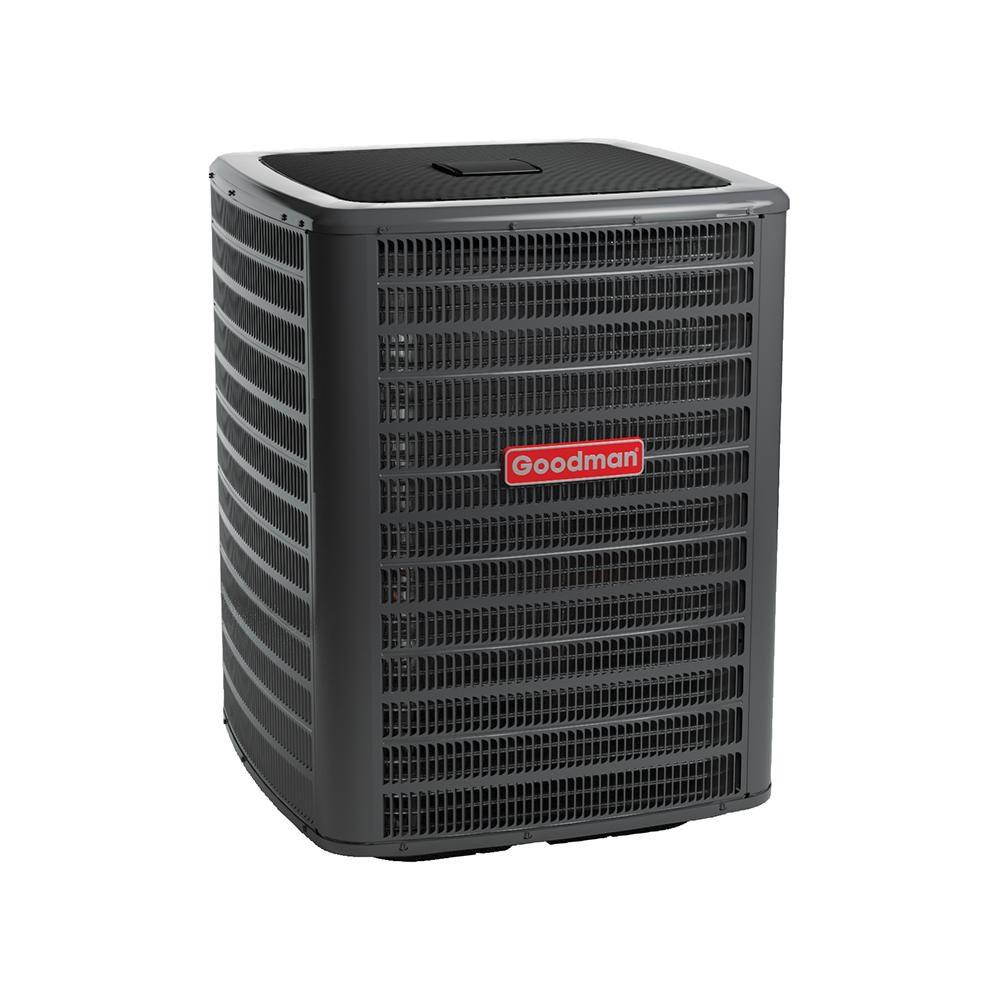

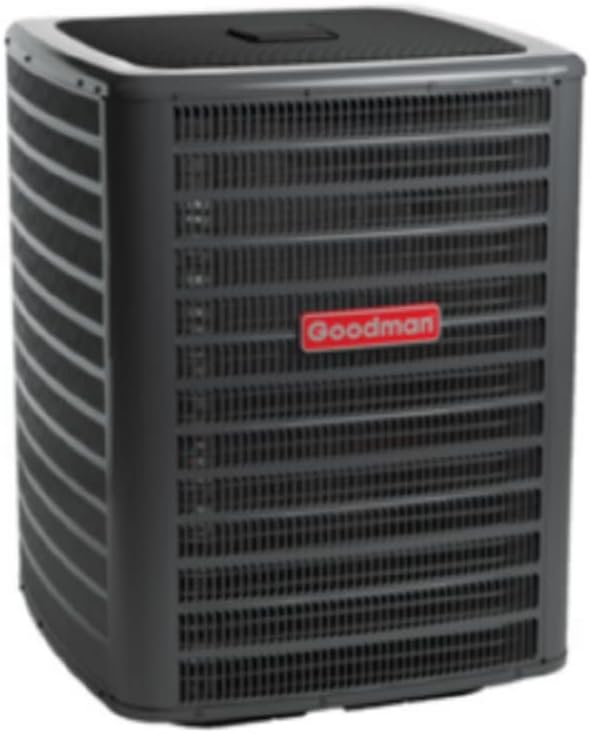

High-Efficiency Split System Two-Stage Heat Pump Up to 19 SEER & 10 HSPF

• High-efficiency two-stage scroll compressor
• High-efficiency two-speed ECM condenser fan motor
• ComfortBridgeô Communications System compatible
• Factory-installed filter drier
• Factory-installed suction line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed high and low-pressure switches
• High-density foam compressor sound blanket
• Factory-installed sensors monitoring coil and ambient temperature
• 1CopelandÆ ComfortAlertô built in diagnostics
• 1SmartShiftÆ technology with short-cycle protection to ensure quiet, reliable defrost
• 1In communicating mode, only two low voltage wires to the outdoor unit are required
• 1Contactor with lug connection
• 1Customized control algorithms
• 1Fully charged for fifteen feet of tubing length
• 1AHRI Certified-ETL Listed
• 1Color-coded terminal strip for non-communicating set-up
• 1Copper tube & enhanced aluminum fin coil.

• The two-stage scroll compressor runs at either 65% or 100% capacity, depending on cooling/heating demand. This operational flexibility provides a great energy-efficient option when compared to a traditional, single-stage unit.
• The top performance of an electronically commutated motor (ECM) allows for two levels of operation depending on your airflow needs. It is a great energy-efficient option when compared to a traditional, single-speed motor.
• Designed to regulate and communicate with your ComfortBridgeô Controls System so you can remotely monitor and manage your heating and cooling system ñ at any time, from anywhere with just an internet connection.
• Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter's residual system contaminants and moisture.
• Ensures refrigerant is ready even in extreme external temperatures.
• Prevents condensation of refrigerant in the crankcase of a compressor.
• Reduces pass-through vibration noise from compressor operation.
• A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the designated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
• High-density foam compressor blanket provides noise reduction when the compressor is in operation.
• Consistent and concise monitoring helps to ensure that the system is operating efficiently, regardless of the weather.
• 1Assists contractors in troubleshooting the system with improved diagnostic accuracy by utilizing indicator lights, seven-segment LED display, and fault code storage.
• 1Time-delay defrost technology allows for a reliable, quiet, and smooth transition when units enter defrost mode.
• 1By simplifying the communication connection to two low voltage wires to the outdoor unit, technicians may eliminate the need to run additional thermostat wiring.
• 1Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
• 1Proprietary, self-contained sequence of actions designed to help control system operation for energy efficient performance and enhanced reliability.
• 1Fully charged with refrigerant sufficient for 15í of tubing length to assist with easy installation of unit.
• 1Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
• 1A straight-forward, color-coded terminal strip for non-communicating set-up helps to simplify installation.
• 1Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.

• Heavy-gauge galvanized steel cabinet and louvered coil guards
• Service valves with sweat connections and easy-access gauge ports
• Engineered sound control top design
• Wire fan discharge grille
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Single-panel access to controls with space for field-installed accessories
• Service port and controls are accessible while unit is operating
• Compact footprint
• Rust-resistant screws
• When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
