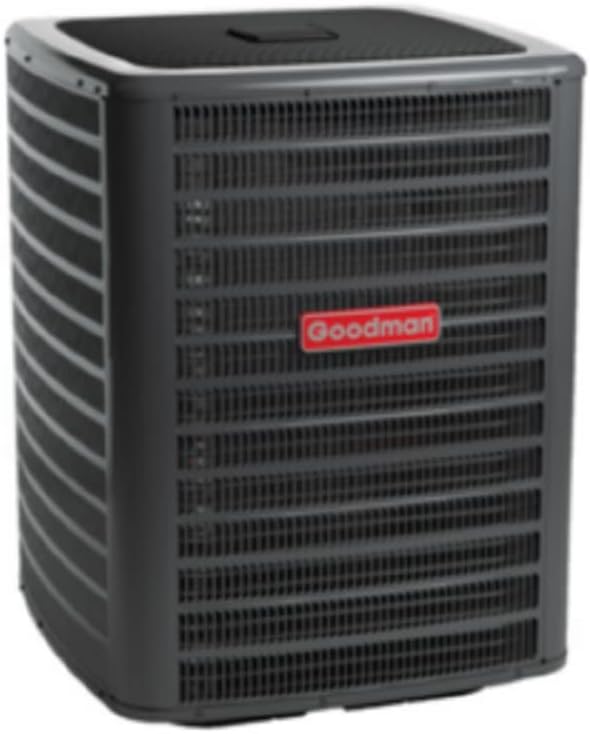

High-Efficiency Split System Two-Stage Heat Pump Up to 19 SEER & 10 HSPFFeatures:
- High-efficiency two-stage scroll compressor
- High-efficiency two-speed ECM condenser fan motor
- ComfortBridgeô Communications System compatible
- Factory-installed filter drier
- Factory-installed suction line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Factory-installed sensors monitoring coil and ambient temperature
- 1CopelandÆ ComfortAlertô built in diagnostics
- 1SmartShiftÆ technology with short-cycle protection to ensure quiet, reliable defrost
- 1In communicating mode, only two low voltage wires to the outdoor unit are required
- 1Contactor with lug connection
- 1Customized control algorithms
- 1Fully charged for fifteen feet of tubing length
- 1AHRI Certified-ETL Listed
- 1Color-coded terminal strip for non-communicating set-up
- 1Copper tube & enhanced aluminum fin coil.
- The two-stage scroll compressor runs at either 65% or 100% capacity, depending on cooling/heating demand. This operational flexibility provides a great energy-efficient option when compared to a traditional, single-stage unit.
- The top performance of an electronically commutated motor (ECM) allows for two levels of operation depending on your airflow needs. It is a great energy-efficient option when compared to a traditional, single-speed motor.
- Designed to regulate and communicate with your ComfortBridgeô Controls System so you can remotely monitor and manage your heating and cooling system ñ at any time, from anywhere with just an internet connection.
- Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter's residual system contaminants and moisture.
- Ensures refrigerant is ready even in extreme external temperatures.
- Prevents condensation of refrigerant in the crankcase of a compressor.
- Reduces pass-through vibration noise from compressor operation.
- A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the designated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
- High-density foam compressor blanket provides noise reduction when the compressor is in operation.
- Consistent and concise monitoring helps to ensure that the system is operating efficiently, regardless of the weather.
- 1Assists contractors in troubleshooting the system with improved diagnostic accuracy by utilizing indicator lights, seven-segment LED display, and fault code storage.
- 1Time-delay defrost technology allows for a reliable, quiet, and smooth transition when units enter defrost mode.
- 1By simplifying the communication connection to two low voltage wires to the outdoor unit, technicians may eliminate the need to run additional thermostat wiring.
- 1Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
- 1Proprietary, self-contained sequence of actions designed to help control system operation for energy efficient performance and enhanced reliability.
- 1Fully charged with refrigerant sufficient for 15í of tubing length to assist with easy installation of unit.
- 1Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
- 1A straight-forward, color-coded terminal strip for non-communicating set-up helps to simplify installation.
- 1Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.
- Heavy-gauge galvanized steel cabinet and louvered coil guards
- Service valves with sweat connections and easy-access gauge ports
- Engineered sound control top design
- Wire fan discharge grille
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Single-panel access to controls with space for field-installed accessories
- Service port and controls are accessible while unit is operating
- Compact footprint
- Rust-resistant screws
- When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
