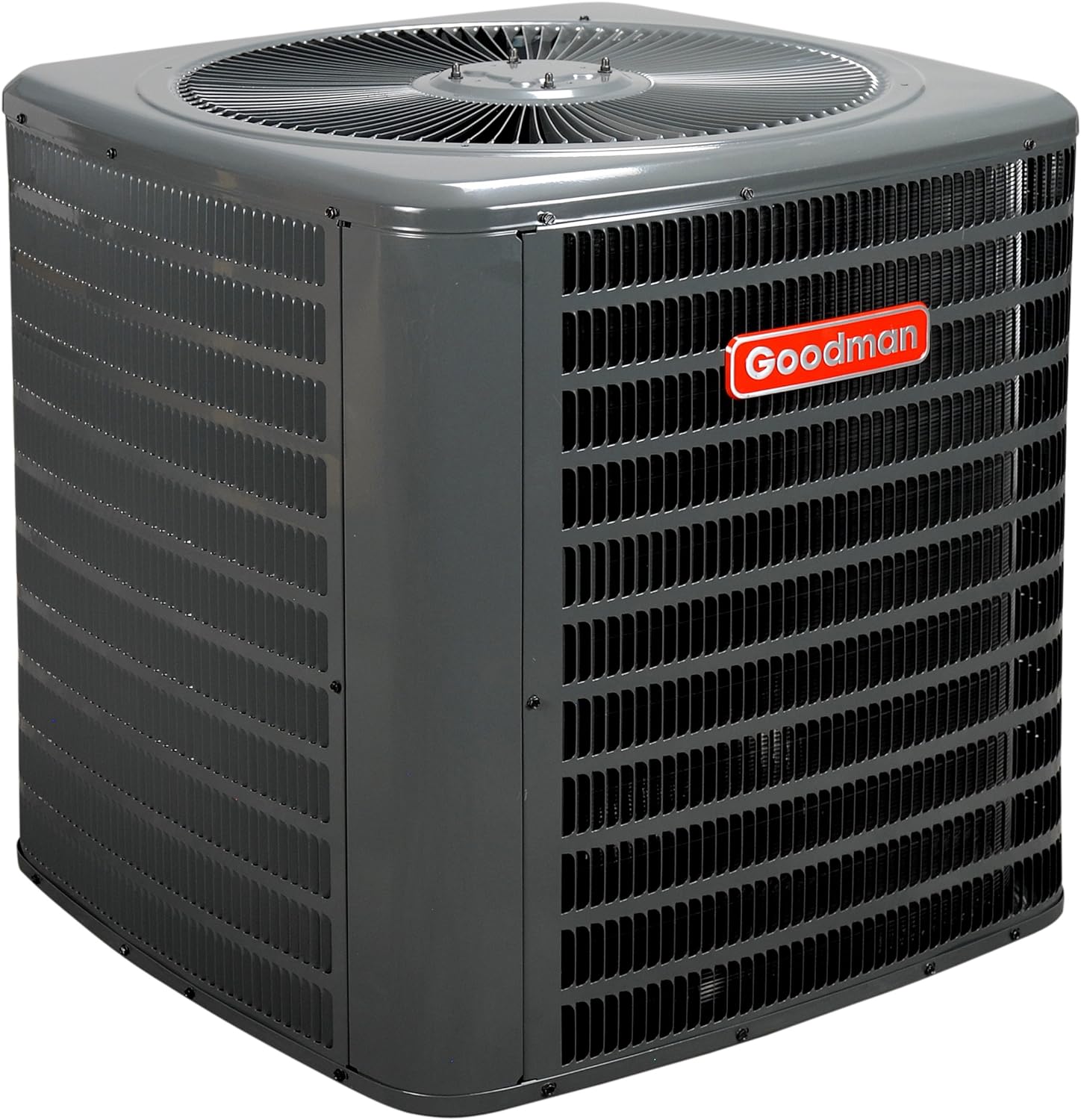

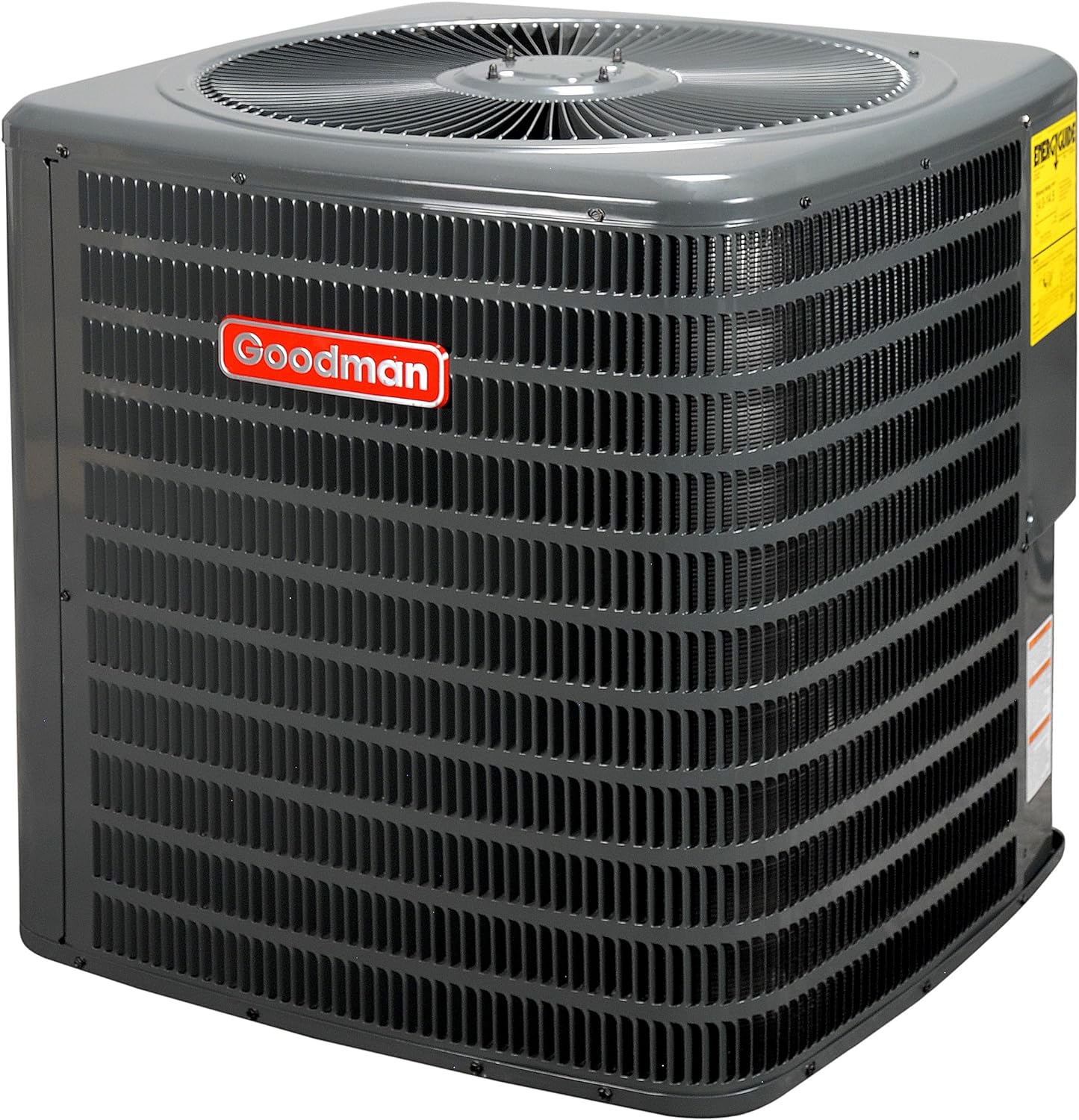

Energy-Efficient Split System Heat Pump Up to 15 SEER & 9.0 HSPF 1Ω to 5 Tons

• Energy-efficient compressor
• Single-speed PSC condenser fan motor
• Factory-installed filter drier
• Factory-installed suction line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed high and low-pressure switches
• SmartShiftÆ technology with short-cycle protection to ensure quiet, reliable defrost
• Contactor with lug connection
• Fully charged for fifteen feet of tubing length
• 1AHRI Certified-ETL Listed
• 1Copper tube & enhanced aluminum fin coil.

• Energy-efficient compressors are designed to efficiently deliver indoor comfort, possibly saving on monthly energy costs.
• A single-speed permanent split capacitor (PSC) condenser fan motor is designed to provide consistent airflow for optimum system performance.
• Filter-driers play a pivotal role in the operation of air conditioning and refrigeration systems. A factory installed filter-drier absorbs and filter's residual system contaminants and moisture.
• Ensures refrigerant is ready even in extreme external temperatures.
• Prevents condensation of refrigerant in the crankcase of a compressor.
• Reduces pass-through vibration noise from compressor operation.
• A high-pressure switch prevents the system from operating at extremely high pressures by shutting off the compressor circuit if the pressure exceeds the designated rating. When a refrigeration system operates at lower than normal pressures, the low-pressure switch prevents freezing from working its way to the compressor.
• Time-delay defrost technology allows for a reliable, quiet, and smooth transition when units enter defrost mode.
• Contractors can securely connect wires with large screw lugs, allowing for quick and solid wiring.
• Fully charged with refrigerant sufficient for 15í of tubing length to assist with easy installation of unit.
• 1Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
• 1Copper coil tubing with enhanced aluminum fins increases the area for heat absorption, providing outstanding, energy-efficient heat transfer performance.

• Heavy-gauge galvanized steel cabinet and louvered coil guards

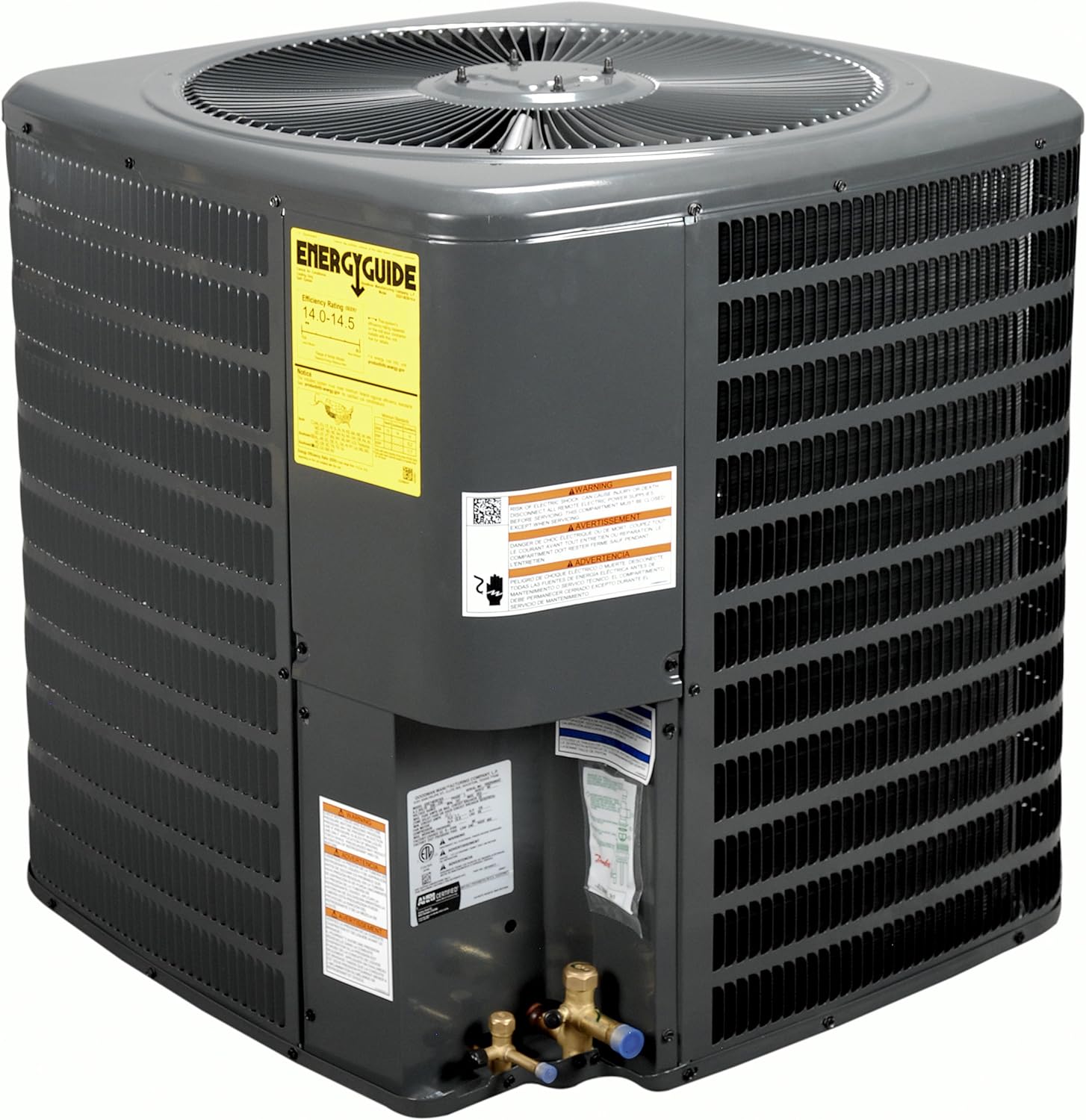

• Service valves with sweat connections and easy-access gauge ports
• Engineered sound control top design
• Baked-on powder-paint finish with 500-hour salt-spray approval

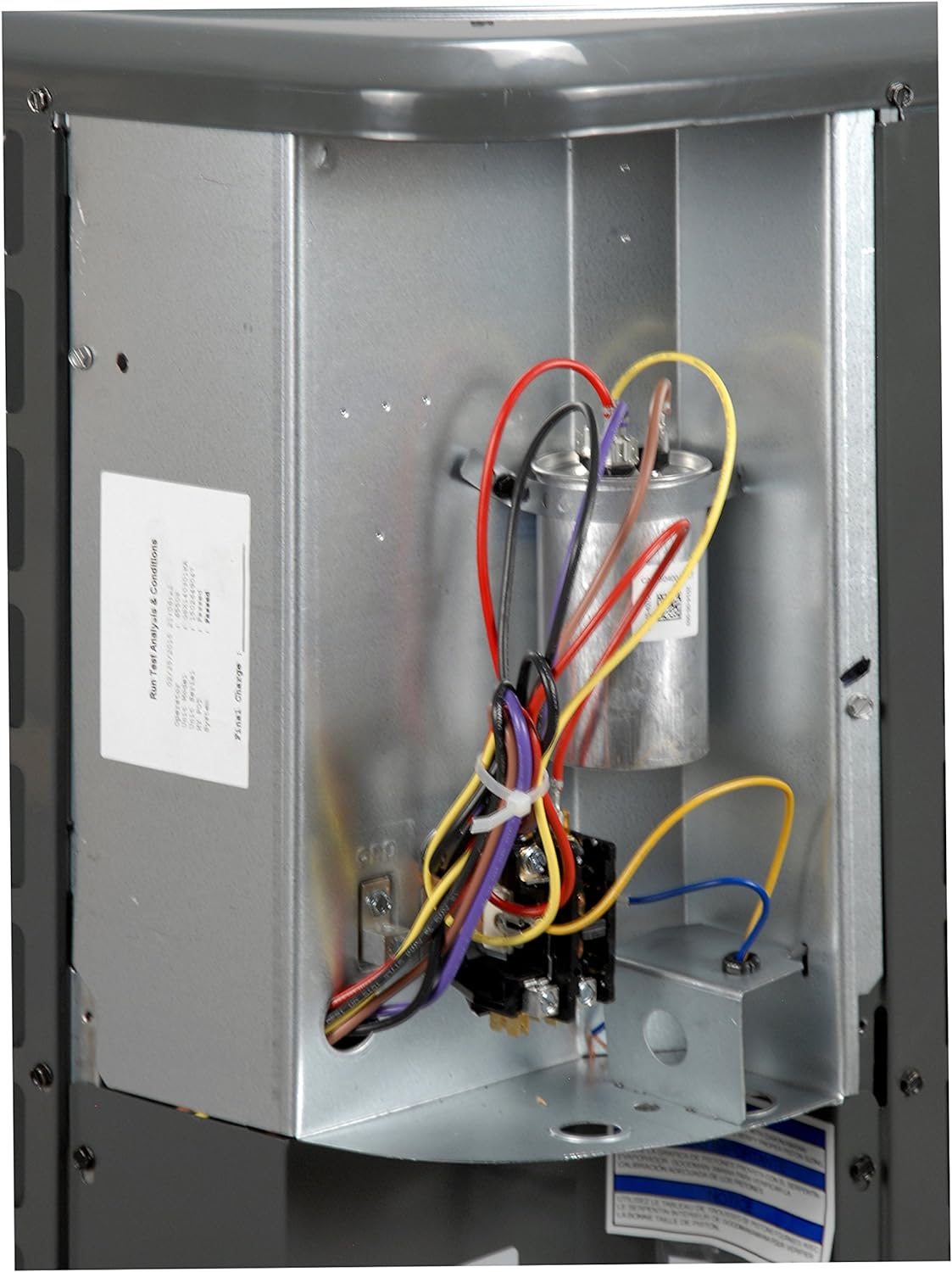

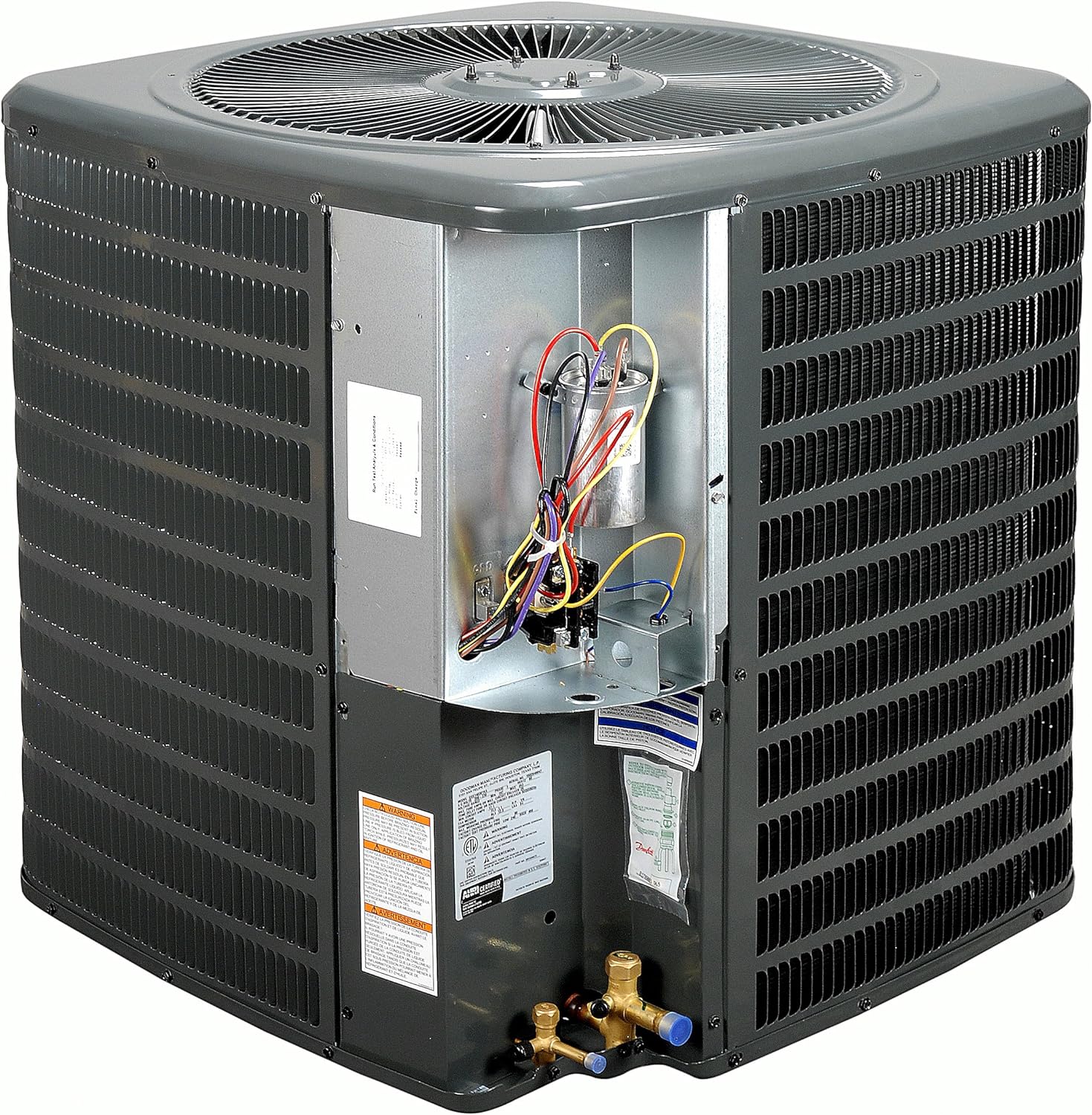

• Single-panel access to controls with space for field-installed accessories
• Service port and controls are accessible while unit is operating
• Compact footprint
• Rust-resistant screws
• When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
