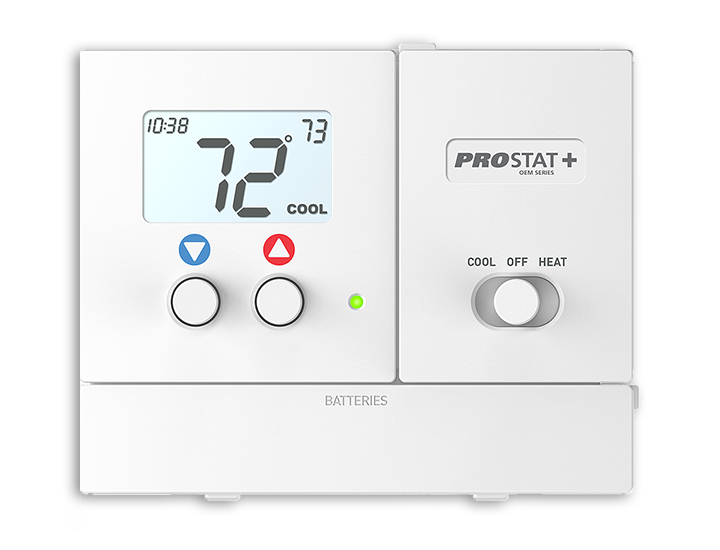

GOODMAN PSP1152 Prostat+ Programmable Thermostat

Product Description

The GOODMAN PSP1152 is a programmable thermostat designed for 1 heat and 1 cool systems. This thermostat works well with gas, electric, heat pump without AUX heat, and hydronic heat systems. It includes a features 5+2 day programmable schedule allowing up to 4 time periods per day. The thermostat can be powered by a 20-28VAC system or two AA batteries, providing flexibility for different setups.

• Compatible with various heating systems including gas and electric.
• Offers 5+2 day programming with multiple time settings.
• Easy installation with RC and RH terminals.

Product Highlights

The GOODMAN PSP1152 offers versatility in heating system compatibility and user-friendly programming features suitable for residential and light commercial use.

Product Information

Standard Information

• Brand: GOODMAN
• Model Number: PSP1152

Technical Specifications

• Thermostat Type: Programmable
• Electric Rating: 20-28VAC, 5 VA Max or (2) AA batteries
• Output Rating: Y1, W1, G, O/B - 500 mA
• Control Range: 35 degrees - 99 degrees F (2 degrees - 36 degrees C)
• Control Accuracy: +/- 2 degrees F (+/- 1 degrees C)
• Outputs: Y1, G, W 1, O/B
