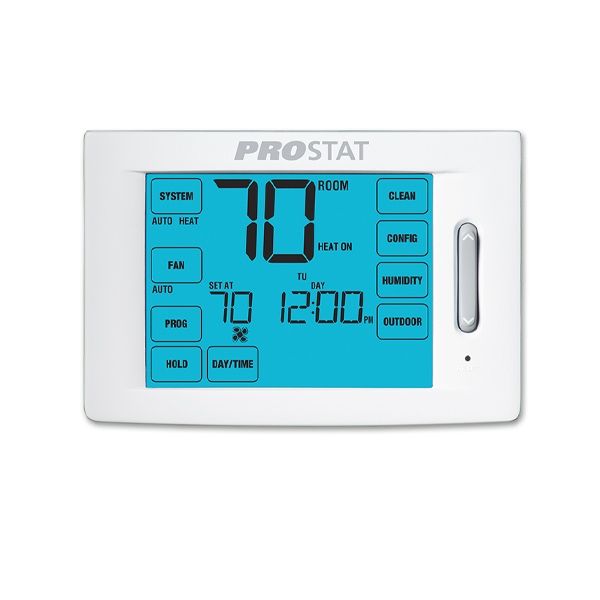

GOODMAN PRS6420 ProStat Premier Universal Programmable Touchscreen Thermostat

Product Description

The GOODMAN PRS6420 is a ProStat Premier universal programmable touchscreen thermostat suitable for multi-stage heating and cooling systems. This thermostat supports four stages of heating and two stages of cooling. It operates on twenty-four volts AC or can use two AA alkaline batteries. In case of power failure, it maintains all settings. The device includes a bright blue backlight and an easy-to-use touchscreen interface.

• Compatible with multi-stage conventional or heat pump systems.
• Features a touchscreen with a bright blue backlight display.
• Retains settings during power outages.

Product Highlights

The GOODMAN PRS6420 provides reliable temperature management for residential systems, making it ideal for both HVAC professionals and homeowners.

Product Information

Standard Information

• Brand: Goodman
• Model Number: PRS6420

Technical Specifications

• Heating Stages: 4
• Cooling Stages: 2
• Programmable: Yes
• Digital: Yes
• Dimensions: 3.70 inches x 5.16 inches x 1.38 inches
• Input Voltage: 24 Volt AC (18-30 Volt AC)
• Power Source: 3.0 Volts DC
• Compatibility: Heat pump systems up to 3 heat/2 cool, Conventional systems up to 2 heat/2 cool
• Wi-Fi Communication: 802.11
• Temperature Control Range: 45°F to 90°F (7°C to 32°C)
• Display Range: 40°F to 99°F (5°C to 37°C)
• Accuracy: +/- 1°F (+/- 0.5°C)
• Electric Rating: 1 amp maximum load per terminal, 5 amp total maximum load (all terminals)
• Terminations: Rh, Rc, C, W2, W1/E/W3, O/B, G, Y2, Y1, K
