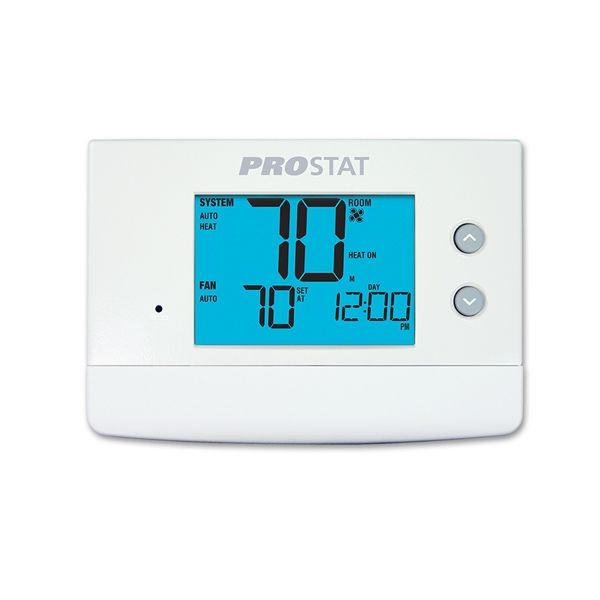

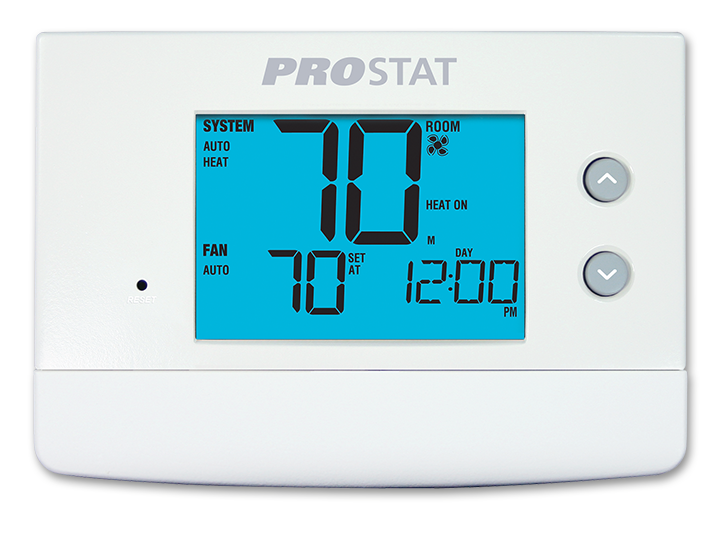

GOODMAN PRS6320 Universal Programmable Thermostat

Product Description

The Goodman PRS6320 is a universal auto changeover thermostat suitable for various systems. It works with low voltage single-stage or multi-stage gas, oil, or electric heating and cooling systems. The thermostat supports up to two stages of heating and cooling and heat pump systems with three stages of heating and two stages of cooling.

• Compatible with millivolt heating and hydronic zone systems.
• Powered by 24 Volt AC or two AA batteries.
• Includes a bright blue backlight and multi-level keypad lockout.

Product Highlights

This thermostat offers separate installer and user setup modes for residential or commercial use. It retains user settings with permanent non-volatile memory.

Product Information

Standard Information

• Brand: Goodman
• Model Number: PRS6320

Technical Specifications

• Heating Stages: 3
• Cooling Stages: 2
• Programmable: Yes
• Input Voltage: 18-30 Volt AC
• Electric Rating: 24 Volt AC, 1 amp maximum load per terminal
• Control Range: 45°F to 90°F
• Display Range: 40°F to 99°F
