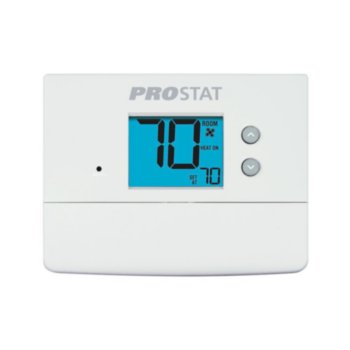

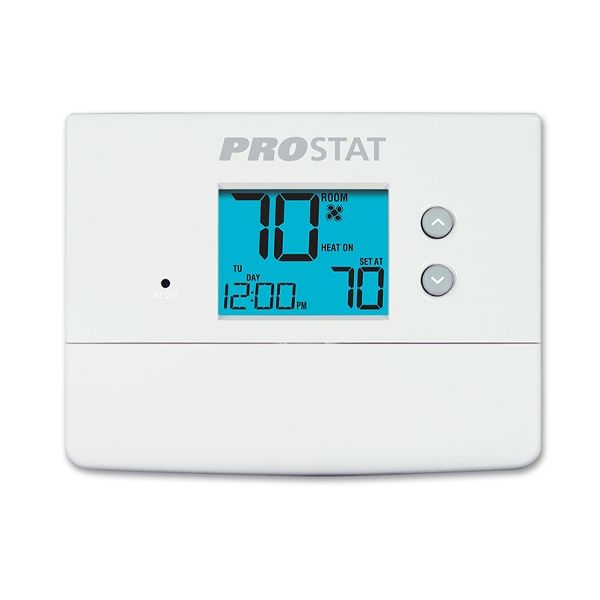

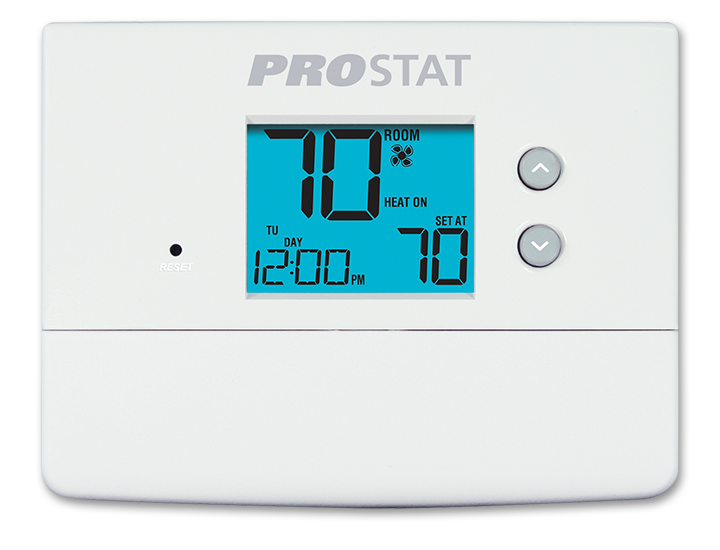

Goodman PRS4210 Universal Programmable Thermostat

Product Description

The Goodman ProStat PRS4210 is a universal thermostat designed for compatibility with multi-stage conventional and heat pump systems. This model supports two heating stages and one cooling stage, as well as heat pump systems with one compressor and one auxiliary stage. It operates using either twenty-four volts alternating current or two AA batteries.

• Compatible with various heating and cooling systems.
• Includes adjustable temperature limits and filter check monitor.
• Features a front access reset button for easy default reset.

Product Highlights

The Goodman ProStat PRS4210 provides effective control over temperature settings in residential and commercial settings. Its user-friendly interface and functional design make installation straightforward and operation simple.

Product Information

Standard Information

• Brand: Goodman
• Model Number: PRS4210

Technical Specifications

• Heating Stages: 2
• Cooling Stages: 1
• Programmable: No
• Mounting Type: Horizontal
• Input Voltage: 24 VAC (18-30 Volt AC)
• DC Power: 3.0 Volts DC
• Maximum Amperage: 4 A
• Temperature Control Range: 45 to 90 degF (7 to 32 degC)
• Display Range: 40 to 99 degF (5 to 37 degC)
• Accuracy: +/- 1 degF (+/- 0.5 degC)
• Temperature Differential: 1st Stage: 0.5, 1, or 2 degF (0.2, 0.5, or 1 degC); 2nd Stage: 2, 3, 4, 5, or 6 degF (1, 1.5, 2, 2.5, or 3 degC)
• Storage Temperature: 14 to 140 degF (-10 to 60 degC)
• Operating Humidity: 5% to 95% Relative Humidity
• Dimensions: 3.62 inches x 4.72 inches x 1.38 inches
• Terminations: Rc, Rh, B, O, Y1, E/W1, G, C, W2
