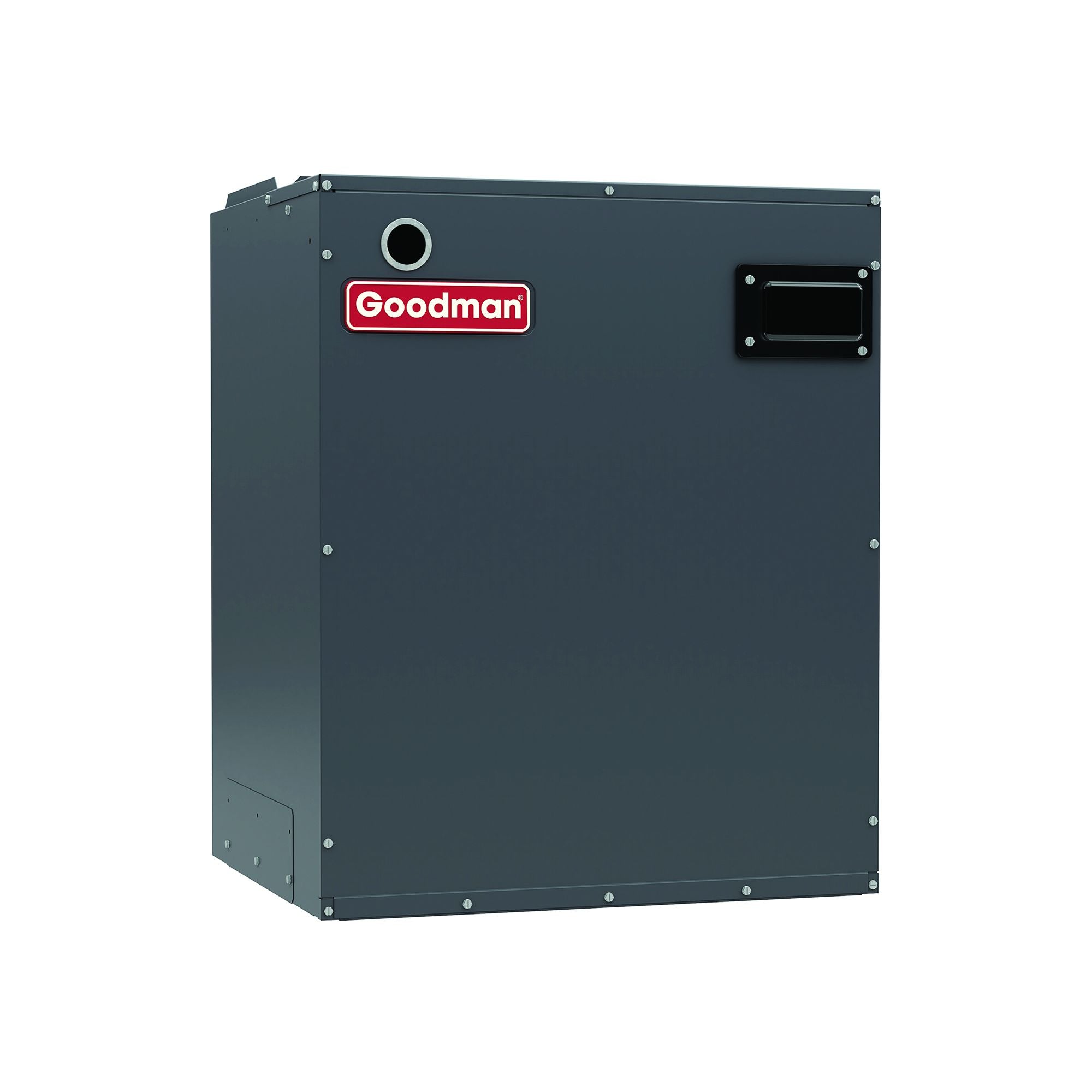

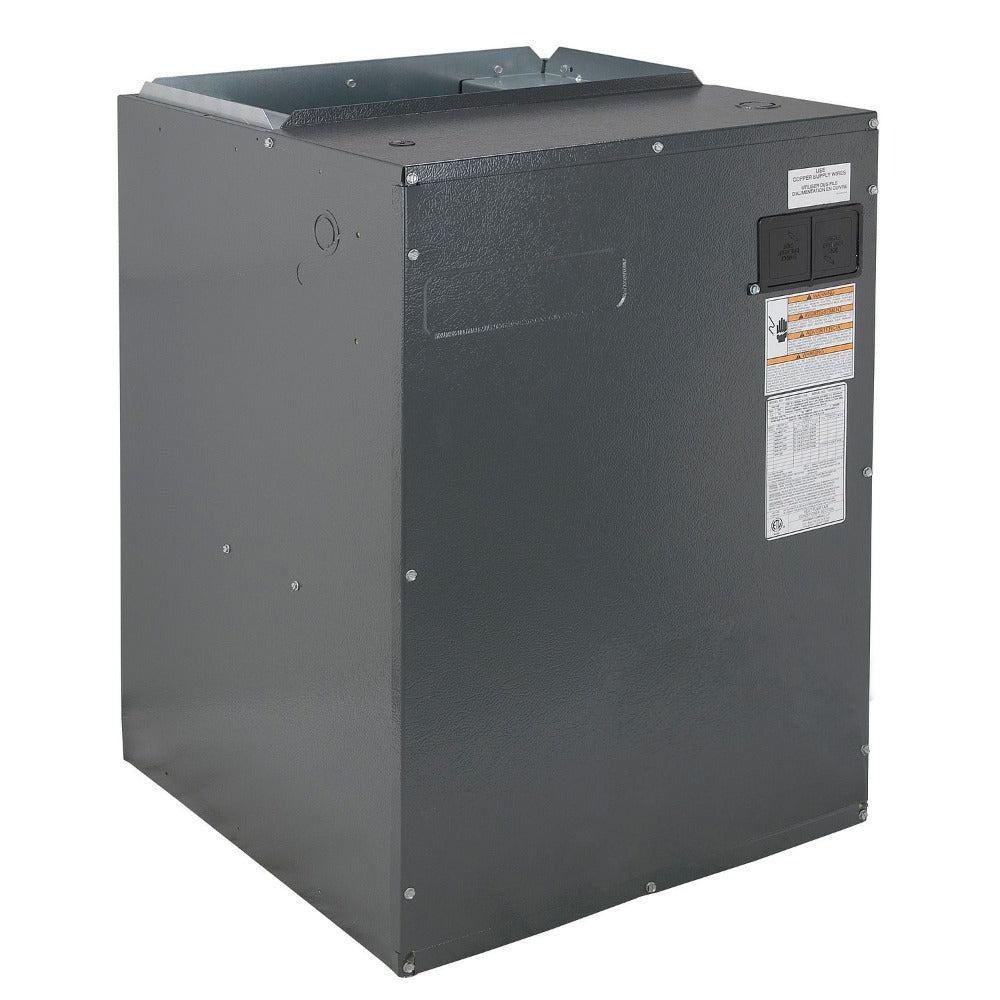

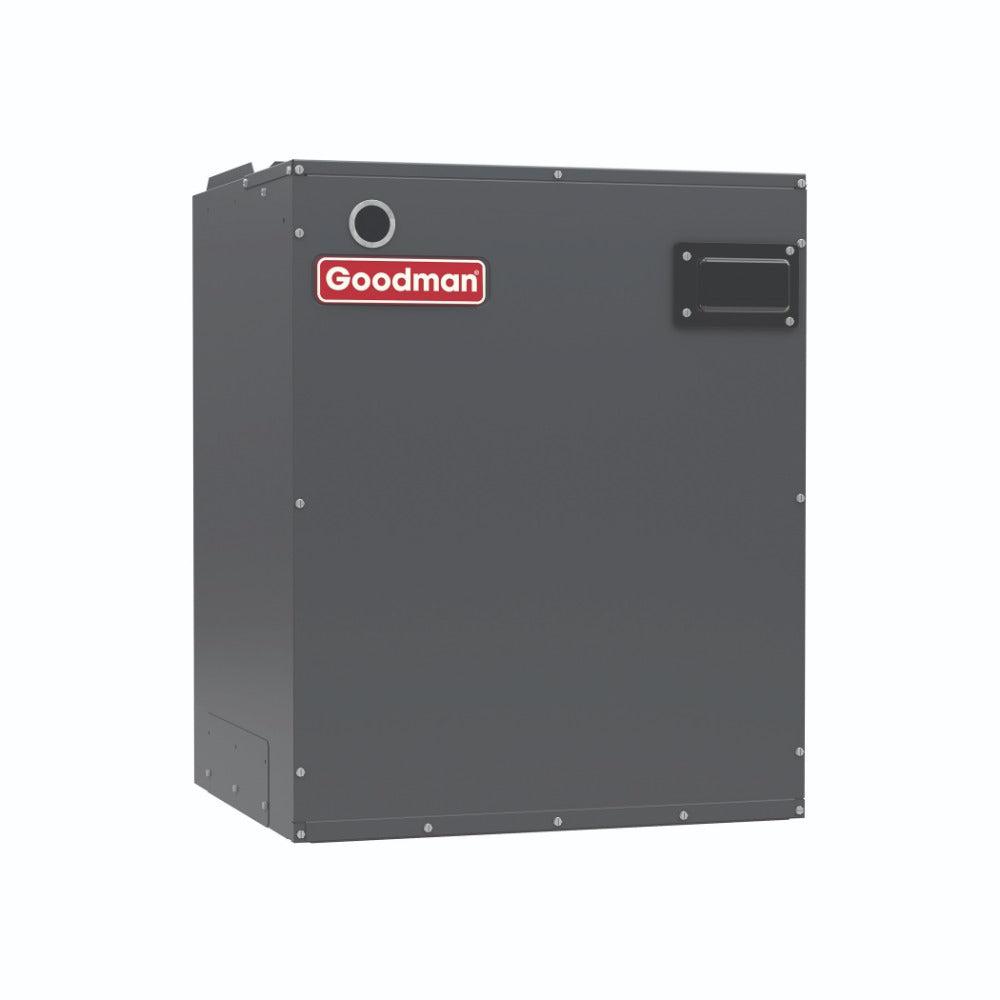

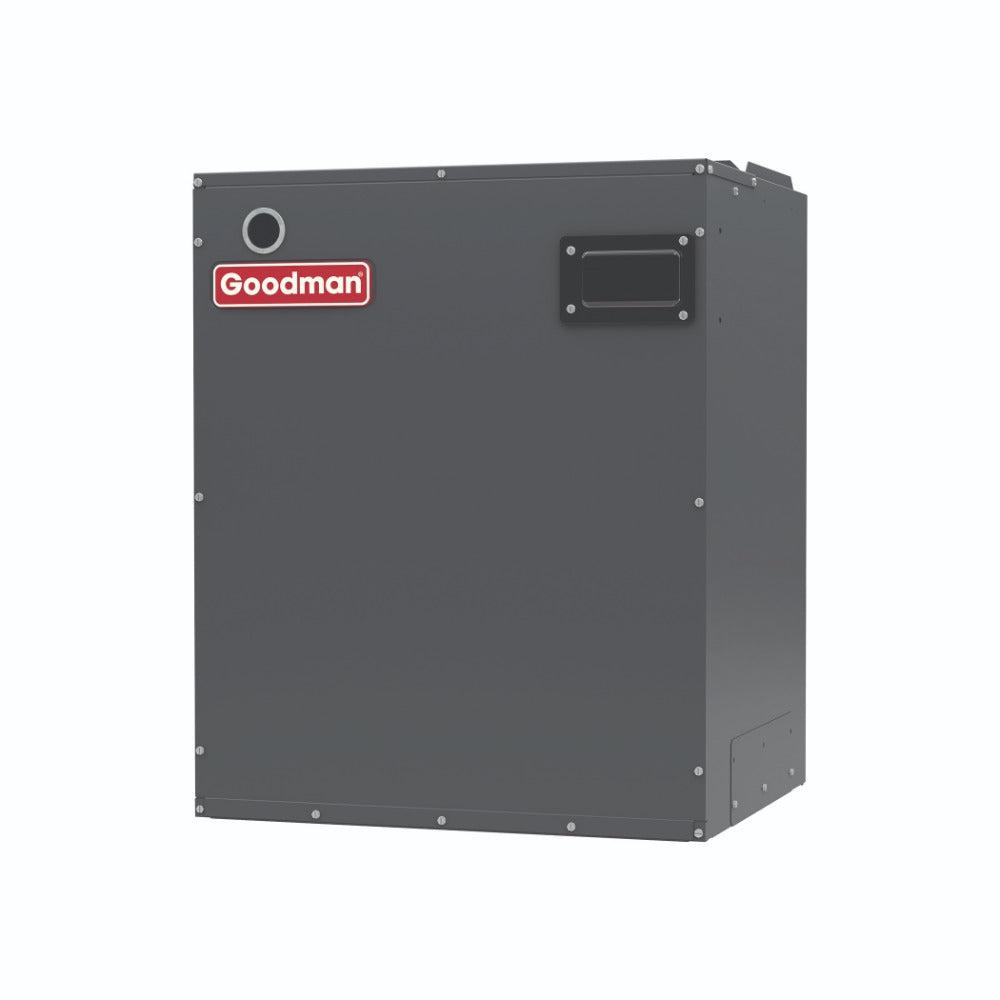

Goodman MBVK20DP1X00 Variable Speed Communicating Modular Blower

Product Description

The Goodman MBVK20DP1X00 is a modular blower that works with R-32 refrigerant air handlers and coils. This unit has a variable-speed ECM blower motor that ensures efficient operation. It features integrated ComfortBridge technology for seamless communication with compatible systems. The blower delivers constant airflow across various static pressure levels. It is suitable for multi-stage heat pump and cooling applications and allows for both horizontal and vertical installation. Additionally, the blower can serve as an electric heater when paired with the appropriate electric heat kits.

• Variable-speed ECM blower motor
• Integrated ComfortBridge technology
• Compatible with multi-stage heat pump and cooling systems

Product Highlights

This modular blower is efficient for diverse heating and cooling needs.

Product Information

Standard Information

• Brand: Goodman
• Model Number: MBVK20DP1X00

Technical Specifications

• Type: Air Handler
• Product Category: Forced Air Blower
• Equipment Type: Modular Blower
• Blower Motor Type: Variable Speed
• Motor Type: ECM
• Maximum Air Flow: 2000 CFM
• Capacity: 5.0 Tons
• Refrigerant Type: R-32

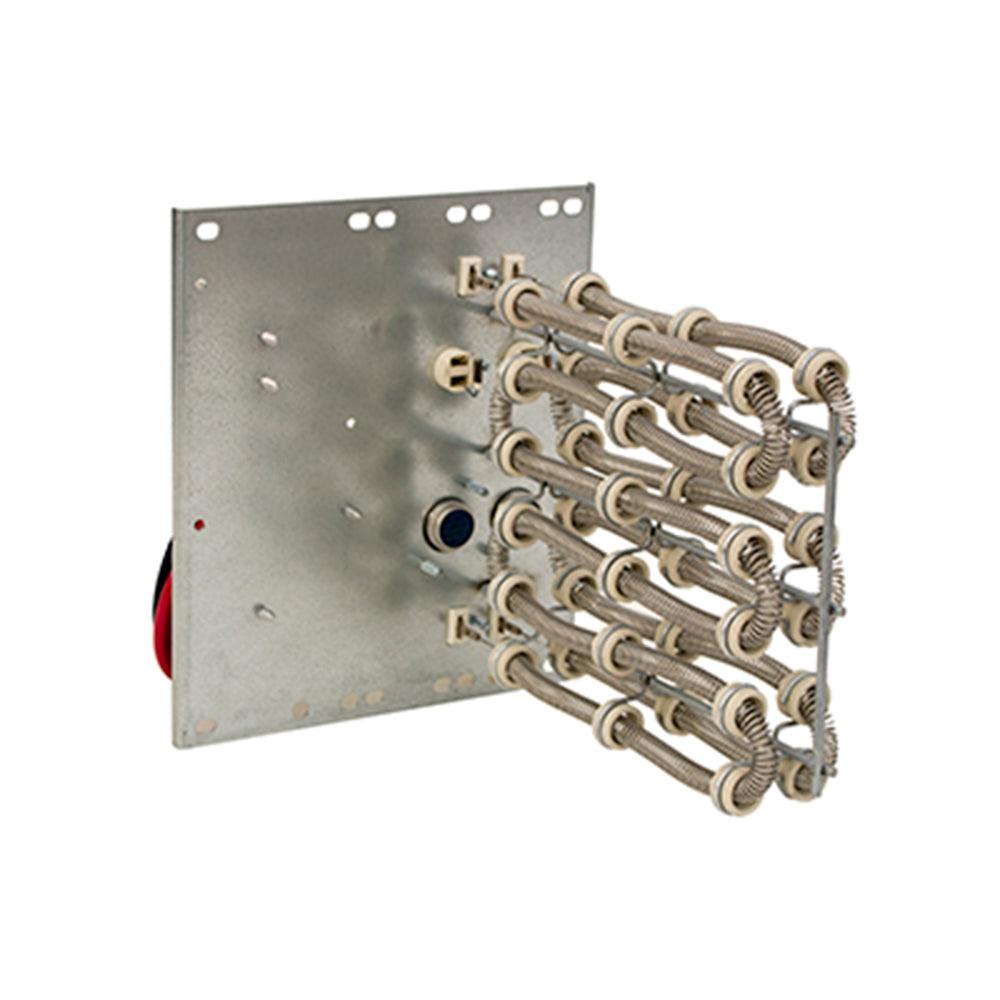

• Electric Heat: Available
• Mount Type: Multi-Position
• Installation Location: Indoor
• Configuration: Multi-Position
• Voltage: 208/230 Volts
• Electrical Phase(s): 1-Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Product Height: 30 Inches
• Product Width: 24.5 Inches
• Product Depth: 21 Inches
• Product Weight: 86 Pounds
• Parts Warranty: 10 Years
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
