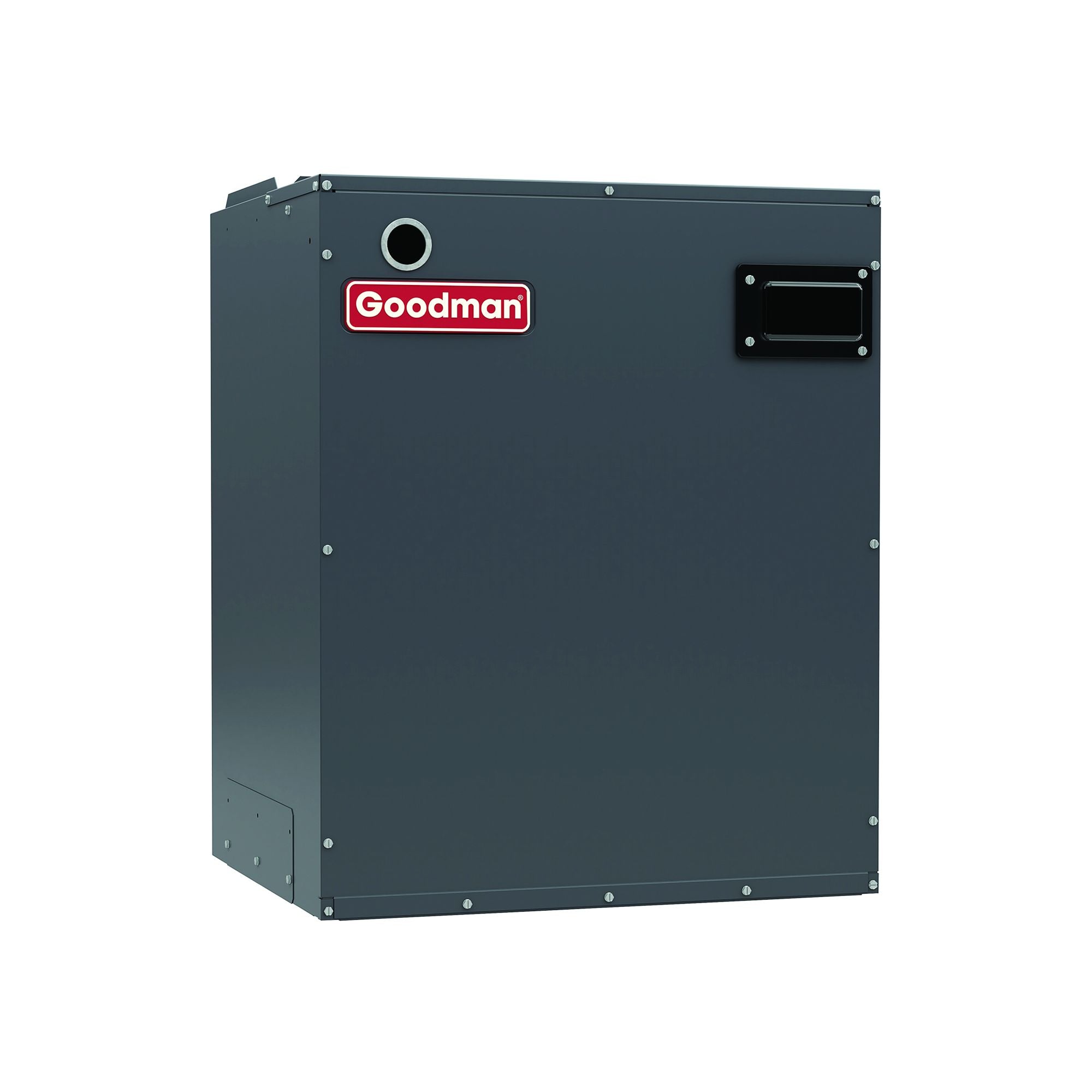

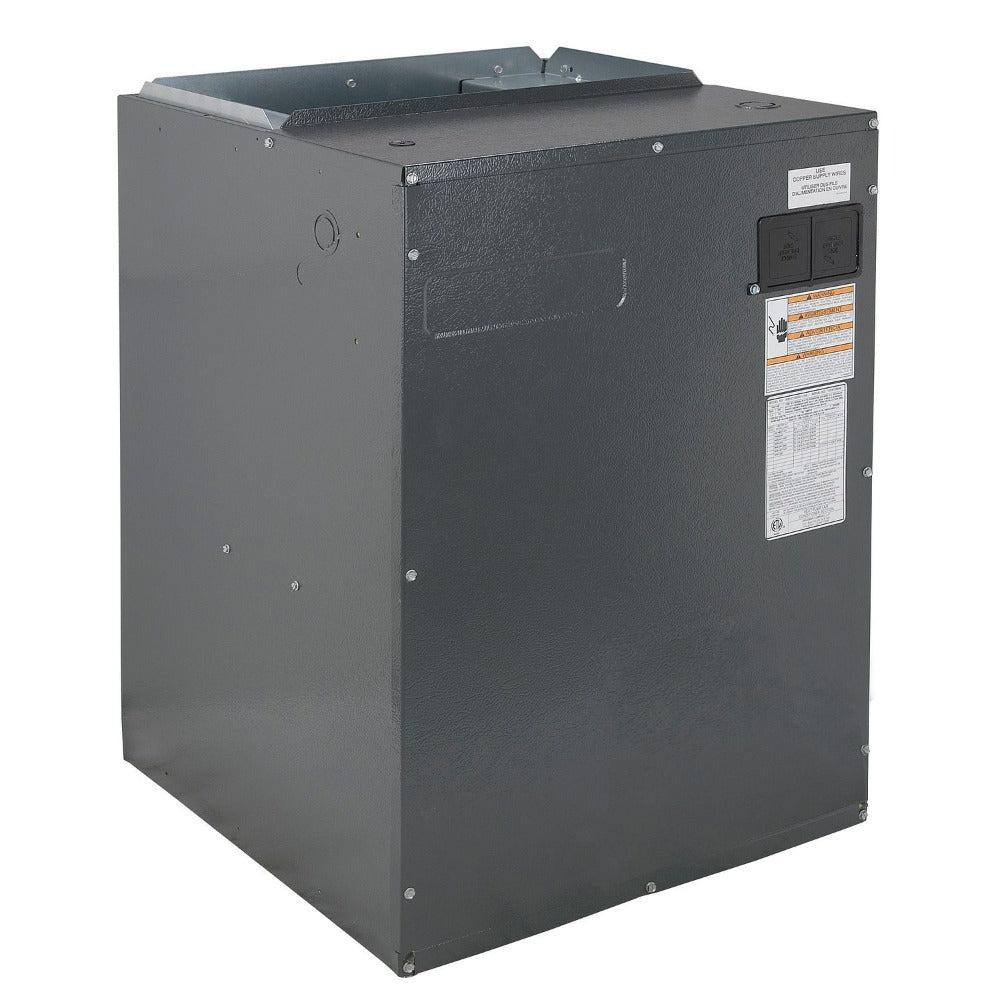

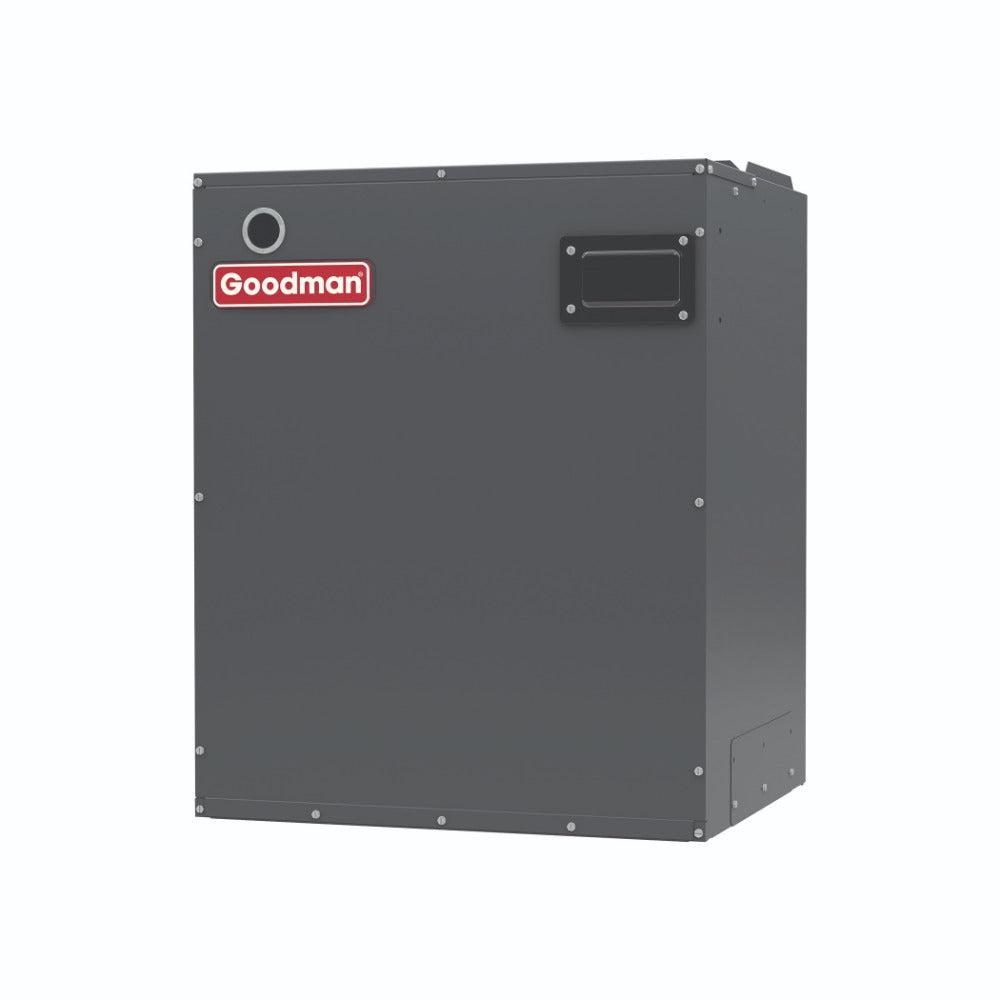

Goodman MBVK16CP1X00 Modular Blower

Product Description

The Goodman MBVK16CP1X00 is a modular blower made for indoor use. This blower features a variable-speed ECM motor, enhancing its compatibility with R-32 refrigerant systems. It allows for installation in upflow, downflow, or horizontal positions, providing flexibility depending on the application. The unit's cabinet is made from galvanized steel and has foil-faced insulation to help minimize noise and condensation.

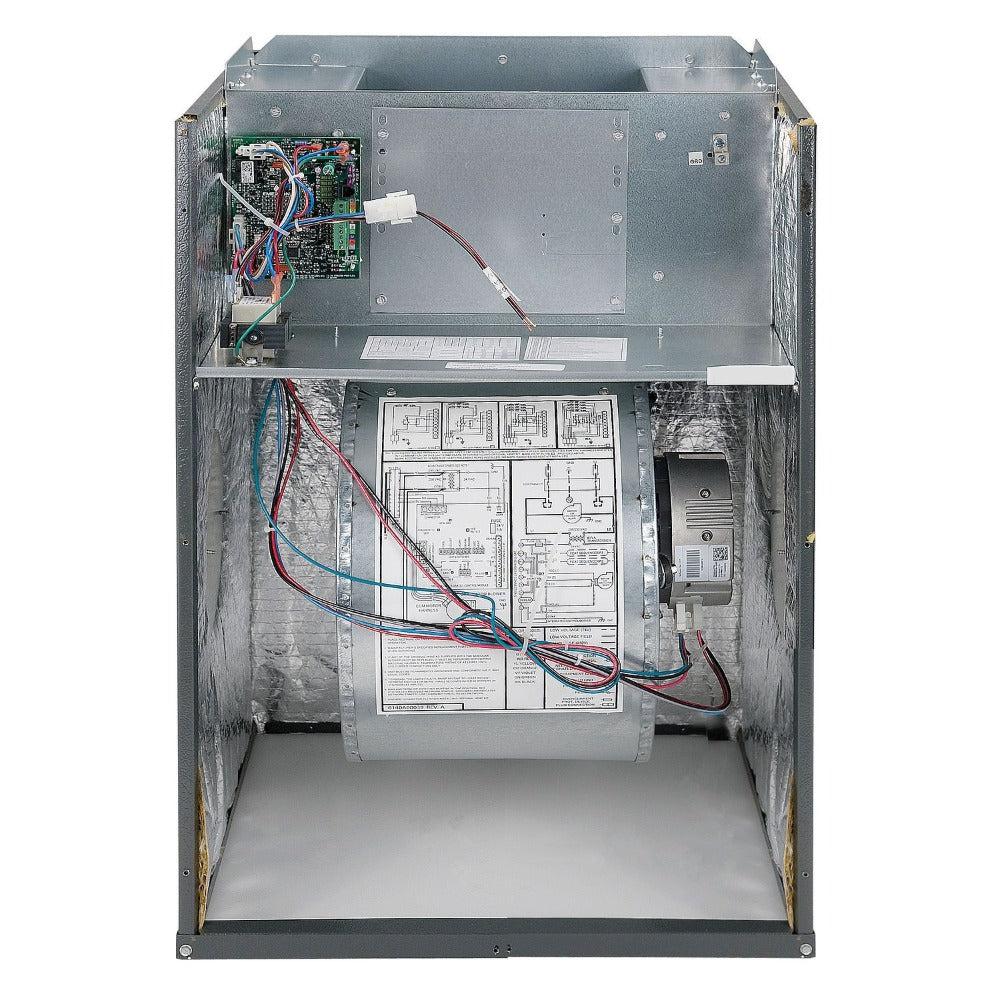

• Variable speed ECM blower motor
• Maximum airflow capacity of 1600 CFM
• Compatible with multiple Goodman evaporator coils

Product Highlights

This blower is ideal for multi-stage heating and cooling systems, designed to provide efficient performance in various configurations.

Product Information

Standard Information

• Brand: Goodman
• MPN: MBVK16CP1X00

Technical Specifications

• Product Line: MBVK Series
• Type: Air Handler
• Blower Motor Type: Variable Speed
• Motor Type: ECM
• Mount Type: Multi-Position
• Installation Location: Indoor

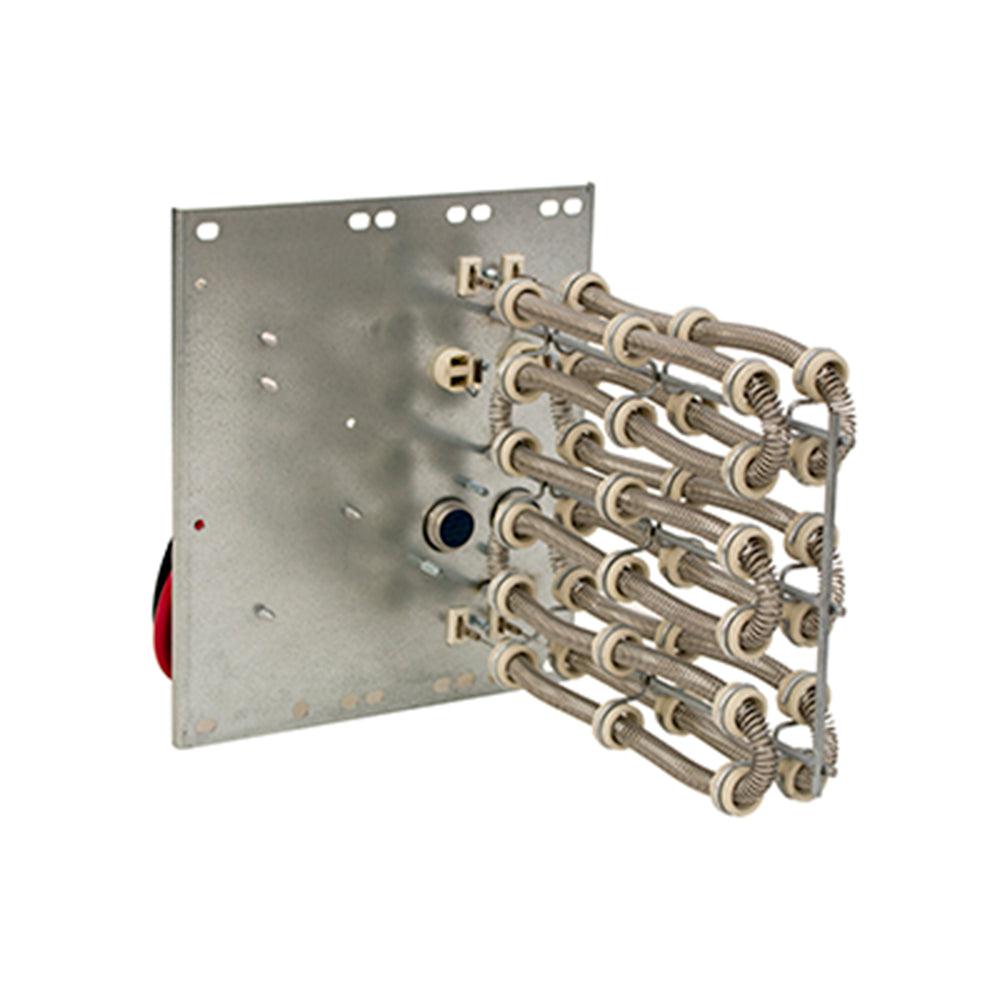

• Electric Heat: Available
• Capacity: 4.0 Tons
• Maximum Air Flow: 1600 CFM
• Minimum Air Flow: 575 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Product Width: 21 Inches
• Product Height: 30 Inches
• Product Depth: 21 Inches
• Product Weight: 80 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Refrigerant Type: R-32
