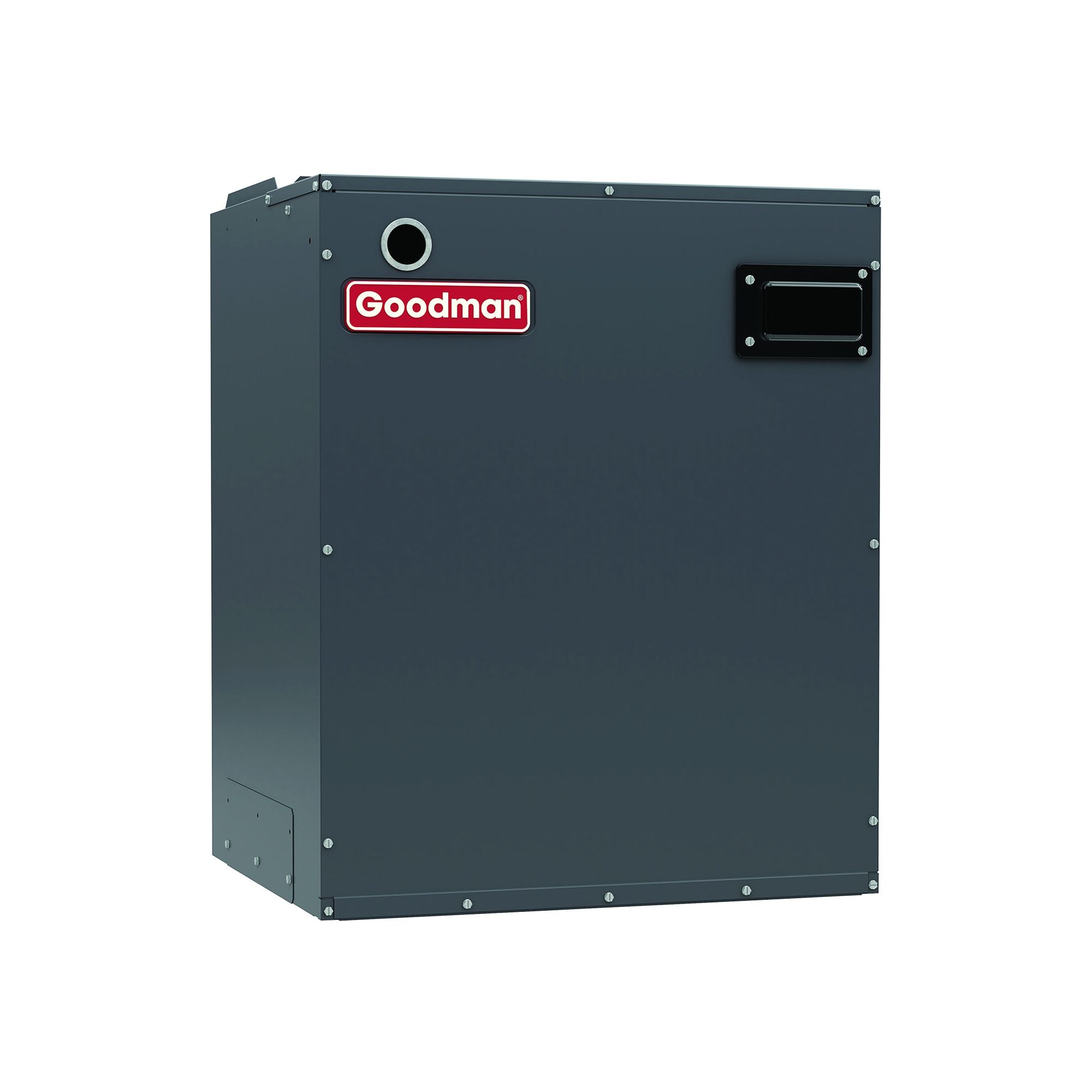

Goodman MBVK12BP1X00 1200 CFM Variable Speed Modular Blower R-32

Product Description

The Goodman MBVK12BP1X00 is a modular blower designed for efficient use in systems utilizing R-32 refrigerant. This unit features a variable-speed ECM blower motor, enhancing performance in multi-stage heat pump and cooling setups. It maintains consistent air flow, measured at twelve hundred CFM, across varying static pressures. Installation options include both horizontal and vertical orientations, making it adaptable for different environments. The compact design, with a depth of twenty-one inches, facilitates attic access. Optional electric heat capability is available.

• Variable-speed ECM blower motor
• Compatible with multi-stage heat pump and cooling applications
• Horizontal or vertical configuration capabilities

Product Highlights

This modular blower ensures efficient performance while providing flexibility in installation and usage.

Product Information

Standard Information

• Brand: Goodman
• MPN: MBVK12BP1X00

Technical Specifications

• Product Line: MBVK
• Type: Air Handler
• Product Category: Forced Air Blower
• Blower Motor Type: Variable Speed
• Motor Type: ECM
• Maximum Air Flow: 1200 CFM
• Refrigerant Type: R-32
• Capacity: 3.0 Tons
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 4.9 Amps
• Recommended Breaker Size: 15 Amps
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• TXV Installed: No
• Unit Width: 17.5 inches
• Cabinet Width: 17.5 inches
• Unit Height: 26 inches
• Unit Depth: 21 inches
• Product Weight: 67 Pounds
• Certifications: AHRI Certified, ETL Listed, ISO Certified
• Parts Warranty: 10 Years
