GOODMAN MBVB16CP1X00 Goodman MBVB16CP1X00 1600 CFM Variable Speed Modular Blower

Product Description

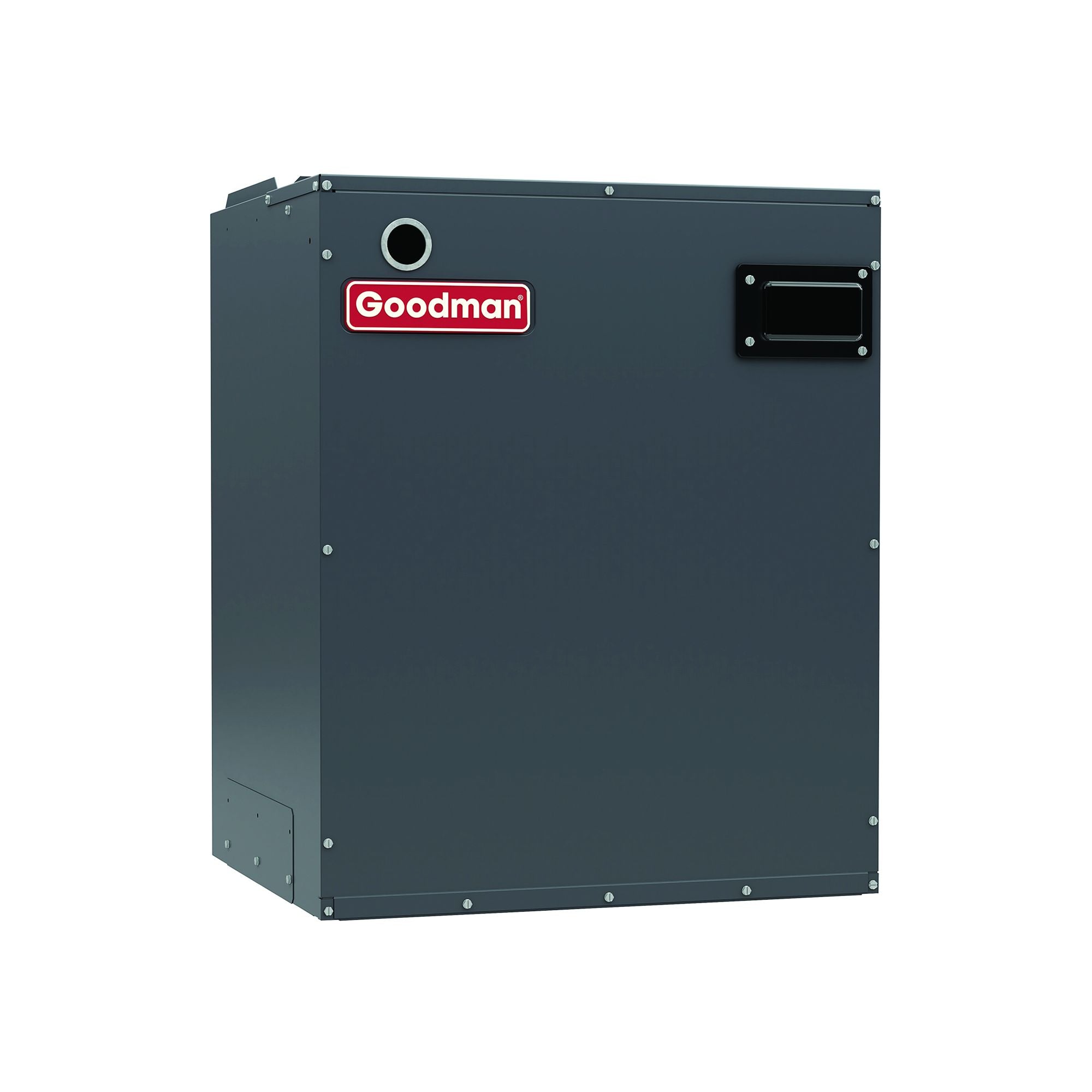

The Goodman MBVB16CP1X00 is a modular blower suitable for indoor installation. It comes with a variable-speed ECM blower motor and is compatible with R-32 refrigerant. This blower maintains constant airflow across various static pressure situations. It can be set up for both horizontal and vertical installations, making it ideal for multi-stage heating and cooling systems.

• Variable-speed ECM blower motor enhances efficiency.
• Compatible with Goodman R-32 'A' coils.

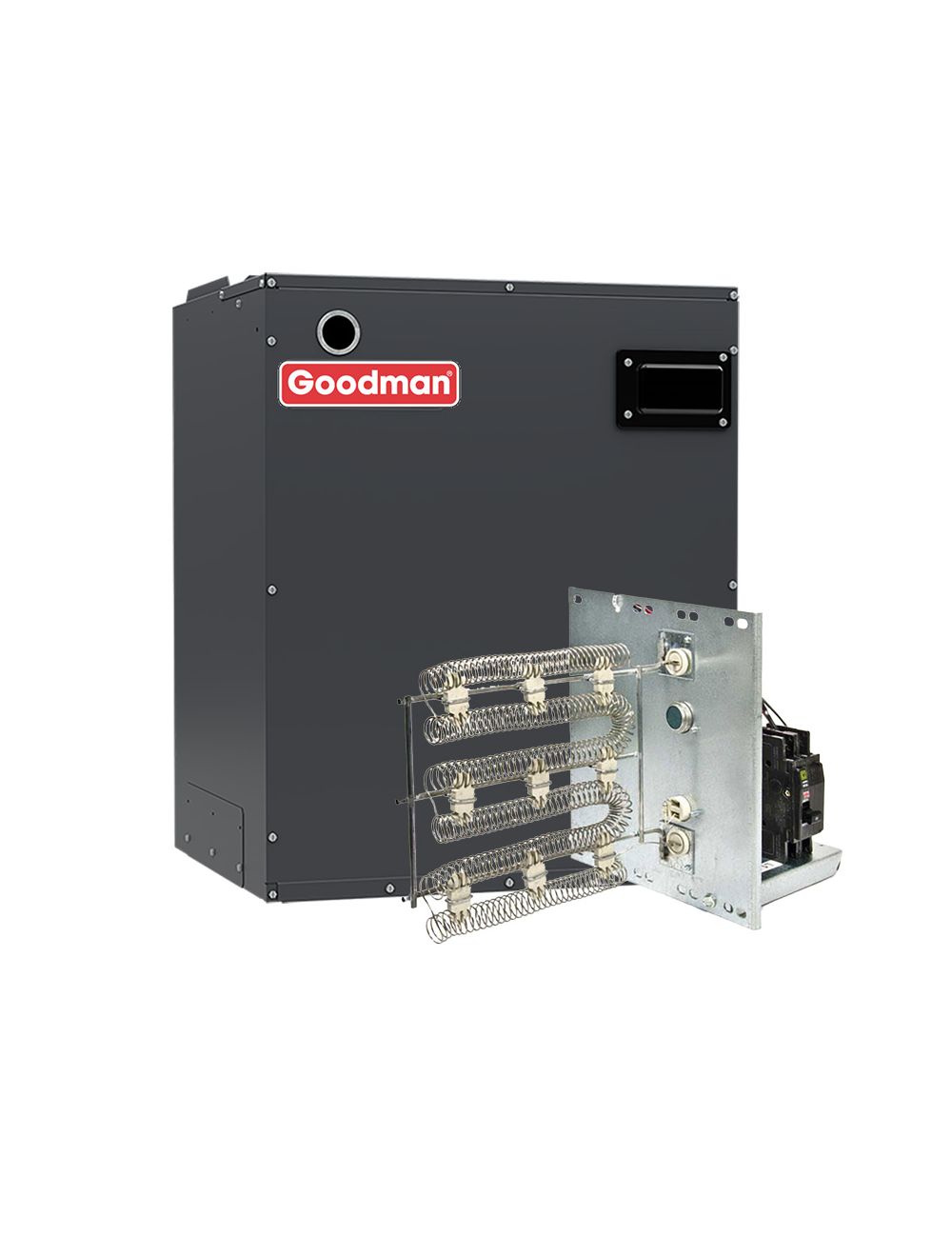

• Can function as an electric heater with field-installed kits.

Product Highlights

This product is designed with a cabinet that minimizes condensation and promotes durability. The Goodman MBVB16CP1X00 is both AHRI certified and ETL listed, ensuring compliance with high industry standards.

Product Information

Standard Information

• Brand: Goodman
• Model Number: MBVB16CP1X00

Technical Specifications

• Maximum Air Flow: 1600 CFM
• Capacity: 4.0 Tons
• Motor Type: ECM
• Blower Motor Type: Variable Speed
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• Refrigerant Type: R-32
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Cabinet Width: 21 Inches
• Product Height: 30 Inches
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Product Weight: 80 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: Limited 10 Years
