Goodman ls14381265dmsf Mini Split Lineset 65 Ft Flared

Product Description

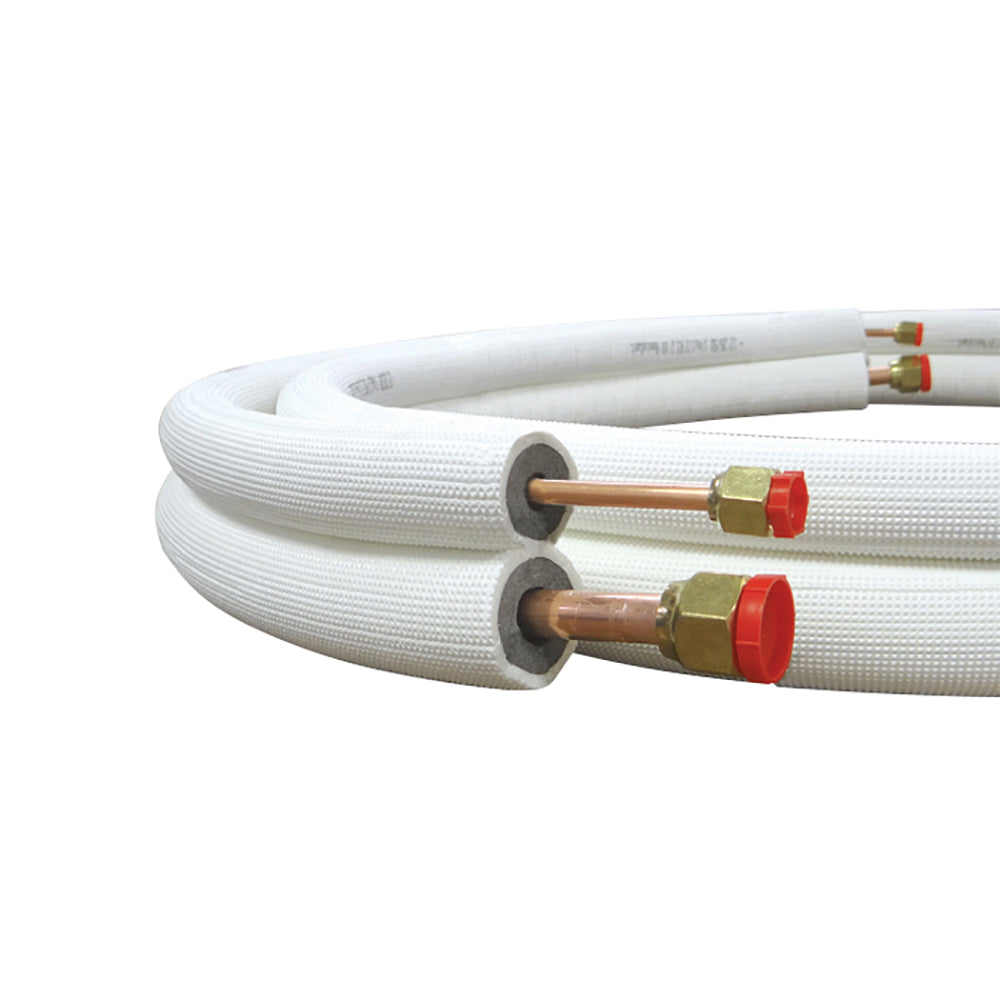

The Goodman ls14381265dmsf is a pre-flared mini split lineset designed to connect the indoor air handler to the outdoor condensing unit in ductless mini split systems. Constructed from insulated copper with 1/2 inch wall insulation, this lineset features a 1/4 inch liquid line OD and a 3/8 inch suction line OD over a total coil length of 65 feet. The DMS flared end connections are factory-formed, eliminating the need for field flaring on both lines. HVAC technicians and mini split installers working on residential and light commercial jobs will find this lineset ready to connect directly to compatible DMS flared service valve ports.

This lineset is suited for ductless mini split installations where a longer lineset run is required, such as units mounted on upper floors, in tight utility chases, or across wider building footprints. The 65 foot length provides flexibility for a range of installation layouts without field splicing. The black insulation jacket resists UV exposure and moisture intrusion, making it appropriate for exposed exterior routing as well as concealed interior runs. It ships as a coiled assembly for manageable transport to the job site.

Key Features

• Factory DMS flared ends on both liquid and suction lines for direct connection to compatible mini split service valves
• 1/4 inch liquid line OD and 3/8 inch suction line OD sized for standard mini split refrigerant circuits
• 1/2 inch insulation wall thickness on the suction line reduces heat gain and condensation
• 65 foot coil length accommodates longer runs without field splicing
• Insulated copper construction provides both thermal performance and structural durability
• Manufactured in the USA by JMF Manufacturing LLC

Compatibility

Designed as an OEM-style accessory lineset for ductless mini split systems requiring DMS flared connections with a 1/4 inch liquid line and 3/8 inch suction line.

Installation Notes

Installation should be performed by a licensed HVAC technician following the system manufacturer's guidelines and applicable mechanical codes. Recover and isolate all refrigerant before disconnecting any existing lineset. When routing, avoid sharp bends that could kink the copper tubing, and support the lineset at regular intervals per local code requirements. Do not braze or solder the factory-formed flare fittings; use only proper flare wrenches to achieve a leak-free connection.

Technical Specifications

• Lineset Type: Mini Split
• Flare Type: DMS Flared
• Liquid Line OD: 1/4 inches
• Suction Line OD: 3/8 inches
• Coil Length: 65 ft
• Insulation Thickness: 1/2 inches
• Material: Insulated Copper
• Country of Origin: USA
• UPC: 0-94913-03686-7

Standard Information

• Brand: Goodman
• Manufacturer Part Number: ls14381265dmsf
