Goodman GPHM56041AA Packaged Heat Pump 15.2 SEER2 5 Ton

Product Description

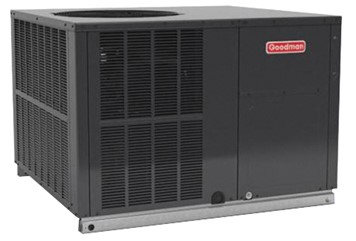

The Goodman GPHM56041AA is a 5-ton packaged heat pump designed for downflow and horizontal installations in residential and light commercial applications. Rated at 15.2 SEER2, it delivers two-stage cooling for more consistent temperature control and improved efficiency compared to single-stage units. A multi-speed blower supports both cooling and heating modes. The unit runs on R410A refrigerant and ships as a fully packaged system, meaning the compressor, coil, and air handler are housed in a single cabinet — reducing installation time and rooftop or ground-level footprint. HVAC technicians familiar with packaged rooftop or ground-set installations will find this unit consistent with standard equipment in that class.

The GPHM56041AA is suited for residential replacement jobs and new construction where a single-cabinet system is preferred over split-system components. Its downflow and horizontal airflow configurations make it compatible with through-the-wall duct connections or rooftop curb mounting. Two-stage operation reduces short cycling, improves humidity control during cooling season, and supports more even heat distribution in heating mode. This unit is an appropriate fit for applications where zoning, consistent comfort, and equipment footprint are priorities.

Key Features

• 15.2 SEER2 efficiency rating meets current federal minimum efficiency standards
• Two-stage cooling compressor reduces short cycling and improves humidity control
• Multi-speed blower supports variable airflow for both heating and cooling modes
• Downflow and horizontal configuration options for flexible duct and curb mounting
• R410A refrigerant — fully packaged, self-contained cabinet design
• 5-ton nominal cooling capacity suited for larger residential and light commercial spaces

Compatibility

Designed as an OEM packaged heat pump unit in the Goodman GPHM5 product family, configured for downflow and horizontal multi-position installations using R410A refrigerant.

Installation Notes

Installation of this packaged heat pump should be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing. Refrigerant handling requires EPA Section 608 certification. Verify that the existing curb or ground pad dimensions, duct connections, and electrical service match the unit's requirements before installation.

Technical Specifications

• Cooling Capacity: 5 Ton (nominal)
• Efficiency Rating: 15.2 SEER2
• Compressor Stages: Two Stage
• Blower Type: Multi-Speed
• Refrigerant: R410A
• Airflow Configuration: Downflow / Horizontal
• UPC: 663051668997

Standard Information

• Brand: Goodman
• Manufacturer Part Number: GPHM56041AA
