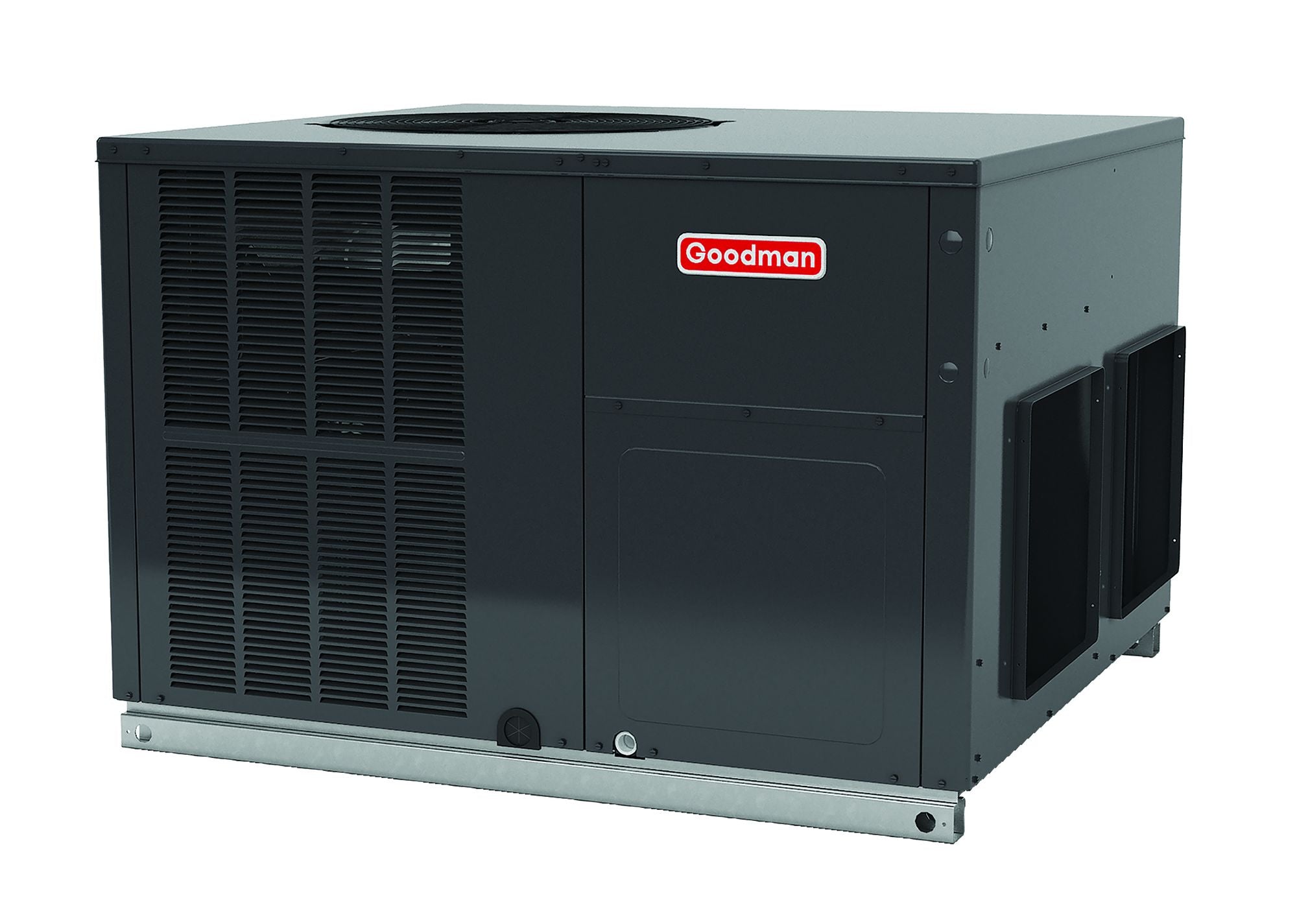

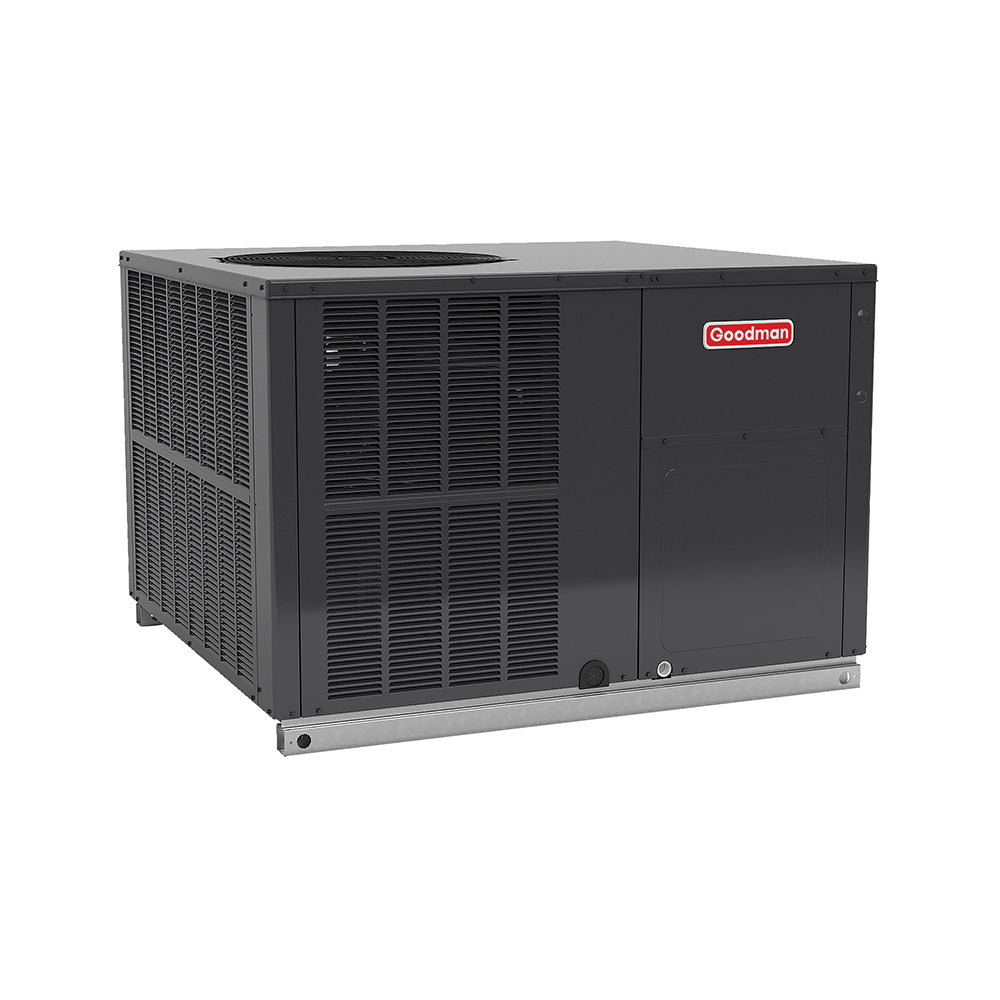

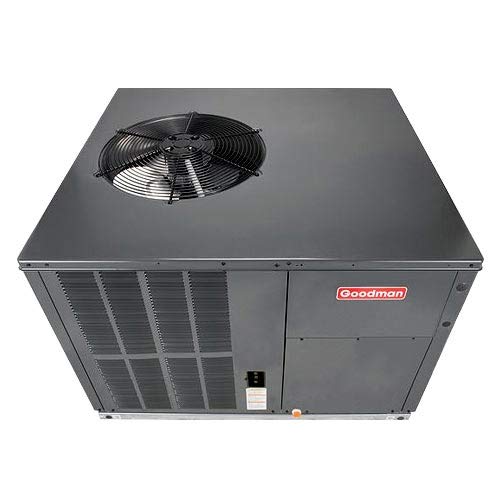

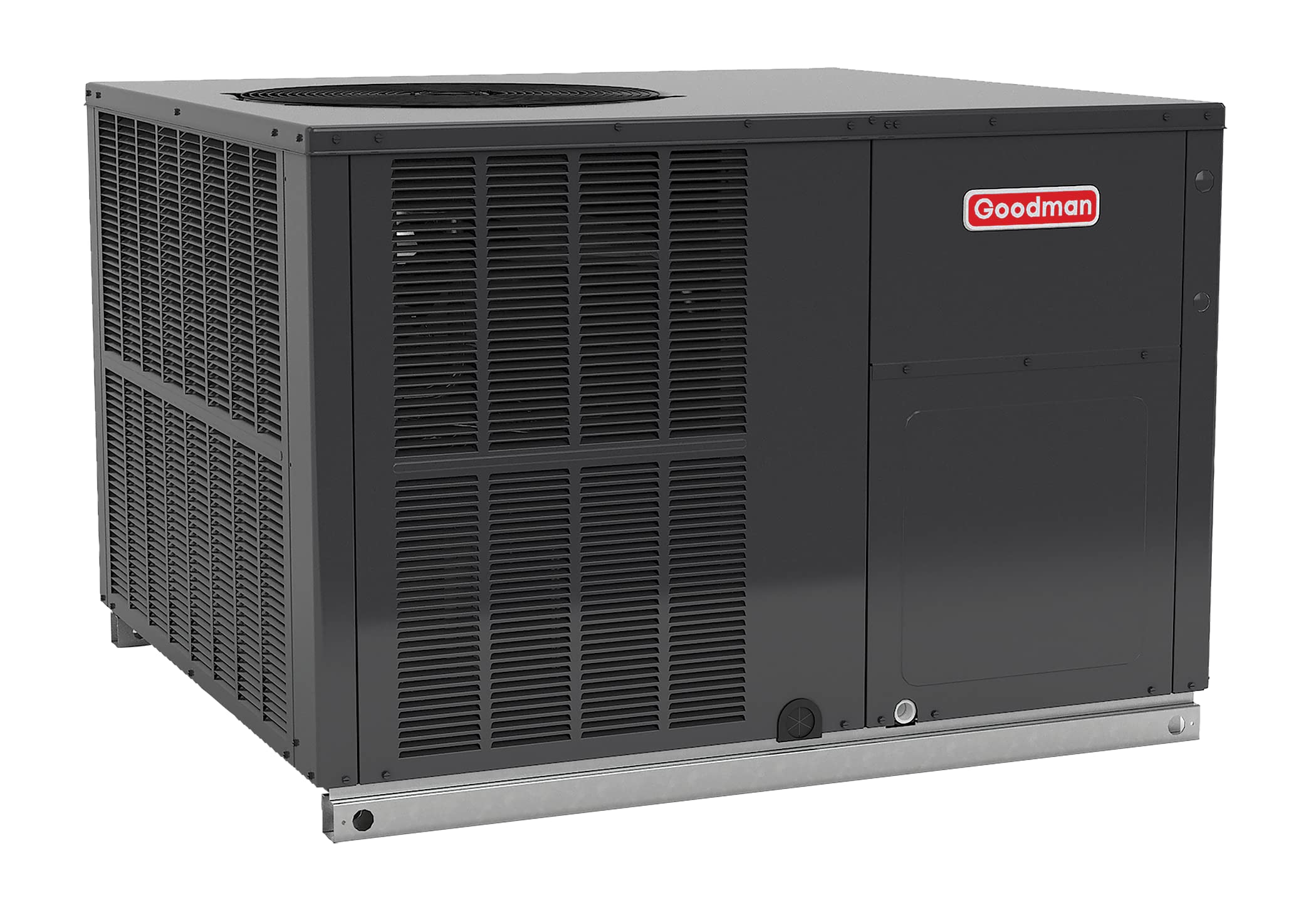

Goodman GPH1442M41 Packaged Heat Pump 3.5 Ton

Product Description

The Goodman GPH1442M41 packaged heat pump provides year-round comfort from a single, self-contained unit. This 3.5 ton unit combines a heat pump, evaporator coil, and ECM blower for efficient heating and cooling. Features a high-efficiency compressor and a convertible airflow for horizontal or downflow configurations.

• High-efficiency compressor
• ECM indoor blower motor
• Convertible airflow: horizontal or downflow
• All-Aluminum evaporator coil

Product Highlights

The Goodman GPH1442M41 is a 3.5 ton packaged heat pump with a multi speed ECM blower motor, suitable for outdoor installation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GPH1442M41
• Country of Origin: United States

Technical Specifications

• Class: Packaged Heat Pump
• Family: GPH14_M
• Tonnage: 3.5 tons
• Category: Packaged Heat Pump
• Keywords: GPH1442M41
• Unit Type: Outdoor
• Unit Depth: 51-1/2
• Unit Width: 47-1/2
• Power Phase: 1
• Refrigerant: R-410A
• Unit Height: 35
• Max. Voltage: 253
• Min. Voltage: 197
• Power Voltage: 208/230
• Compressor Type: Scroll
• Power Frequency: 60
• Model Efficiency: 14 SEER
• Motor Speed Type: Multi Speed ECM
• Compressor Stages: Single Stage
• Family Description: Packaged Heat Pumps 2 to 5 Tons 14 SEER & 8.0 HSPF
• Prop65 Label Required: TRUE
• SEER Rating: 14
• MPN: GPH1442M41
• Product Category: Unitary
• Product Class - (PIM): Packaged Heat Pump
• System Family: Unitary Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Market Type: Residential-Single Family
• Product Family: GPH14_M
• Series Name: GPH14M
• Installation Type: Ducted
• Communication Feature: No
• DOE Regional Compliance: Southwest;Southeast;North
• Installation Configuration: Downflow/Horizontal
• Evap Coil Metal Type: Aluminum
• Number of Speeds: 5
• Max Overcurrent Protection: 45 A
• Min. Circuit Amps: 29.6 A
• Compressor LRA: 112 A
• Compressor RLA: 17.9 A
• Outdoor Fan FLA: 1.4 A
• Outdoor Fan LRA: 2.9 A
• SEER (HSVTC): 14.0
• HSPF (HSVTC): 8.0
• EER (HSVTC): 11.0
• COP47 (HSVTC): 3.6
• COP17 (HSVTC): 2.2
• Total BTU/h: 41000 Btu/H
• Condenser Fan Diameter: 22 in
• Condenser Fan RPM: 1075 r/min
• Condenser Fin Density - (Fins Per Inch): 16.0
• Evap Motor RPM: 1050 r/min
• Condenser Coil Rows: 2.0
• Evap Coil Rows: 4.0
• Dimensions - (Evap Wheel Diameter): 10 in
• Dimensions - (Evap Wheel Width): 9 in
• Sound Pressure (High) - Cooling: 80 dBA
• Factory Std. Refrigerant Charge: 133 oz
• Condensate Drain Outlet: 3/4 in
• System Configuration: Downflow, Horizontal
• Coolant: R-410A
• Voltage: 208/230
• Air Conditioner Phase: 1 Phase
• Motor Type: Multi-speed blower
• Size: 40.5K BTU (Heating), 41K BTU (Cooling)
• Heating Btu: 40,600
• Cooling Btu: 41,000
• Decibel Level (dB): 80
• Maximum CFM: 1,300
• BtuH Cooling: 41,000
• BtuH Heating Input: 40600
• COP: 3.6
• Depth: 51"
• EER: 11
• HSPF: 8.0
• Height: 34-3/4"
• Nom. CFM: 1,300
• Nom. Tons: 3-1/2
• Phase: Single
• Volts: 208/230
• AHRI Certificate: Yes
• AHRI Number: 201629787
• SEER2: 14
• Operating Mode: Heat Pump
• Airflow Direction: Downflow/Horizontal
• Capacity: 3.5 Tons
• Cooling Capacity: 42000 BTU
• Heating Capacity: 40600 BTU
• Maximum Air Flow: 1750 CFM
• Minimum Air Flow: 1030 CFM
• Maximum Sound Level: 80 dB
• Recommended Breaker Size: 45 Amps
• Product Height: 34 3/4 Inches
• Product Width: 47 Inches
• Product Depth: 51 Inches
• Product Length: 34 3/4 Inches
• Product Weight: 390 Pounds
• Shipping Weight: 410 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• UPC Listed: Yes
• ISO Certified: Yes
• AHRI Reference Number: 7470165
