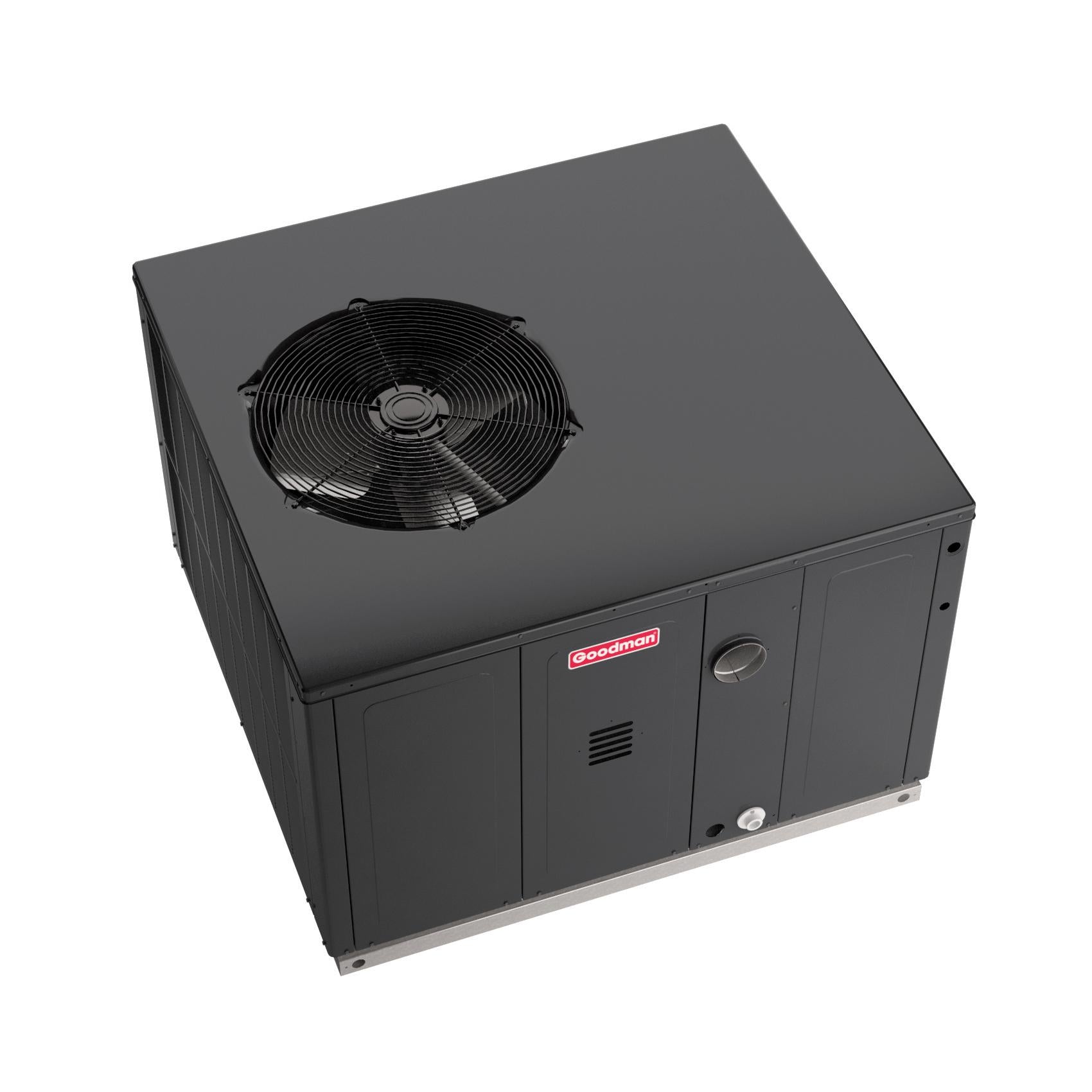

Goodman gpgm36010031 Gas Electric Package Unit 5 Ton

Product Description

The Goodman gpgm36010031 is a multi-position gas and electric package unit designed for commercial and residential rooftop or ground-level installations. It delivers 100,000 BTU/h of gas heating input and 56,000 BTU/h of cooling capacity at 5 tons, achieving a 13.4 SEER2 efficiency rating. The unit operates on 208/230 volts single-phase power at 60 Hz and uses R-32 refrigerant with a two-stage scroll compressor. HVAC technicians install this unit as a self-contained system where separate indoor equipment is not practical or desired.

This package unit suits commercial and light-commercial applications requiring a single-cabinet solution for both heating and cooling. Its multi-position configuration allows flexible installation on rooftops or ground pads. The unit moves 1,700 CFM of conditioned air and carries an EER rating of 10.6. It is appropriate for retrofit and new-construction projects where a 5-ton, gas/electric package system is specified.

Key Features

• 56,000 BTU/h cooling capacity at 5 tons with 13.4 SEER2 rating
• 100,000 BTU/h gas heating input for high-demand heating loads
• Two-stage scroll compressor for part-load efficiency and humidity control
• R-32 refrigerant with 4-row evaporator coil at 14 FPI and 8.81 sq-ft face area
• 2-row condenser coil at 27 FPI for efficient heat rejection
• Multi-position configuration supports rooftop and ground-mount installs
• Powder-painted cabinet finish for corrosion resistance in outdoor environments

Compatibility

Designed as an OEM gas and electric package unit within the Goodman GPGM3 model series, suitable for single-phase 208/230-volt applications requiring a 5-ton self-contained heating and cooling system.

Installation Notes

A licensed HVAC technician should perform installation in accordance with local mechanical codes and the manufacturer instructions. Disconnect and lock out all electrical power and shut off the gas supply before making any connections or performing service. Verify that the supply circuit is rated for the 42.8-amp draw and protected by a fuse no larger than 60 amps. Confirm duct connections, refrigerant line integrity, and gas pressure at the unit before startup.

Technical Specifications

• Model Series: GPGM3
• Cooling Capacity: 56,000 BTU/h
• Heating Input: 100,000 BTU/h
• Tonnage: 5 ton
• SEER2 Rating: 13.4
• EER Rating: 10.6
• Voltage: 208/230 volts
• Amperage: 42.8 amps
• Fuse Rating: 60 amps
• Phase: 1 phase
• Frequency: 60 Hz
• Refrigerant: R-32
• Compressor Type: 2-stage scroll
• Airflow (CFM): 1,700 CFM
• Configuration: Multi-position
• Evaporator Coil: 4-row, 14 FPI, 5.68 sq-ft coil rating, 8.81 sq-ft face area
• Condenser Coil: 2-row, 27 FPI
• Outdoor Airflow: 2,975 CFM
• Temperature Rating: 35 to 65 degrees F
• Finish: Powder-painted

Standard Information

• Brand: Goodman
• Manufacturer Part Number: gpgm36010031
