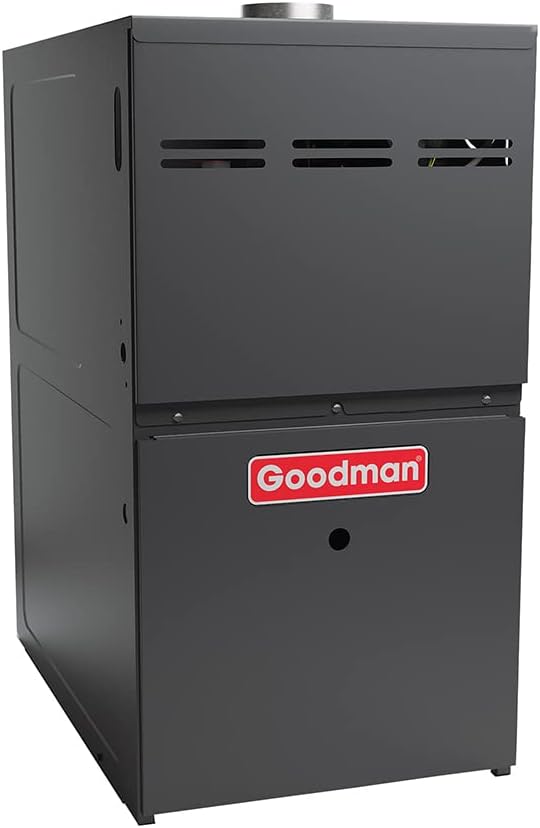

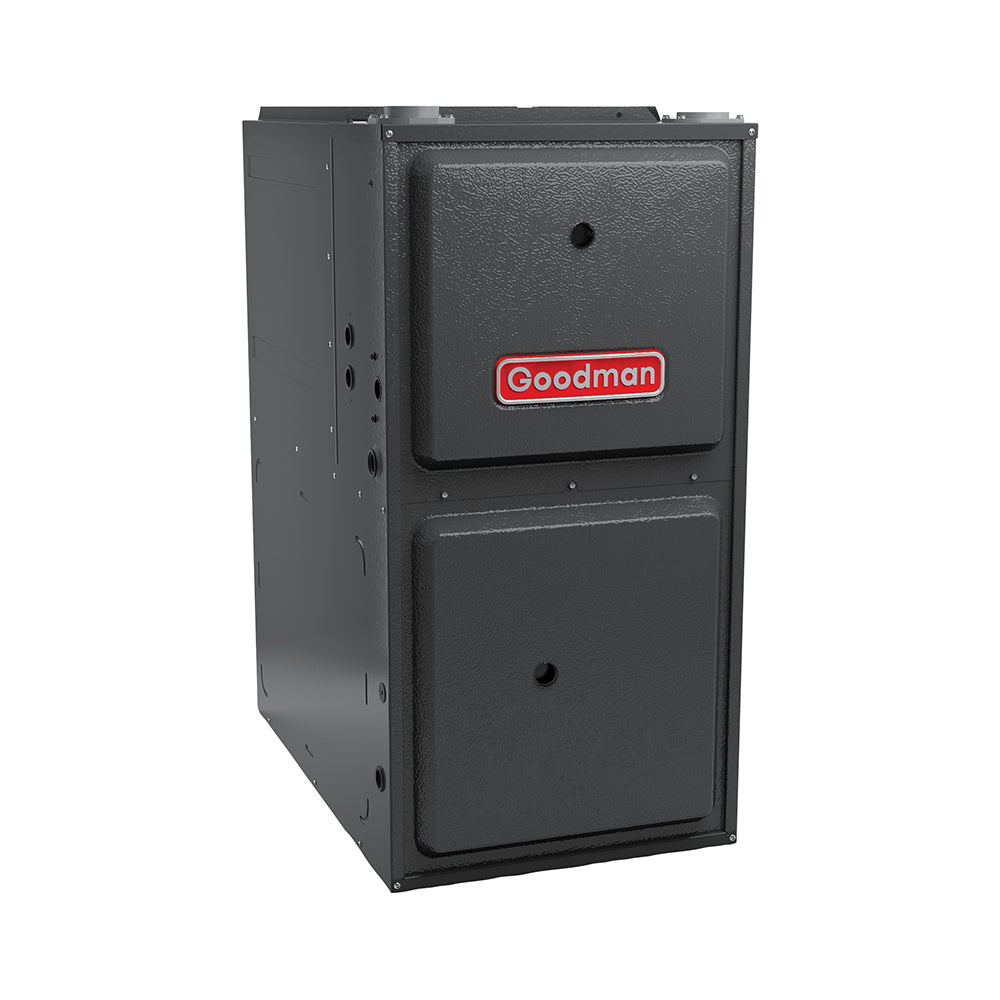

Goodman GMES960603BN Gas Furnace 60000 BTU

Product Description

The Goodman GMES960603BN is a gas furnace with 96% AFUE, multi-speed ECM, and single-stage convertible operation. Designed for upflow or horizontal installation, it delivers 60000 BTUH/H. The furnace features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger.

• Equipped with a multi-speed ECM blower motor for continuous fan speed.
• Features a self-diagnostic control board with constant memory.
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe) configurations.

Product Highlights

This Goodman gas furnace offers efficient heating and versatile installation options, suitable for various indoor applications.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: GMES960603BN
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• Class: Gas Furnace
• Family: GMES96
• Category: Gas Furnace
• Keywords: GMES960603BN
• Unit Type: Indoor
• Unit Depth: 29 in
• Unit Width: 17-1/2 in
• Power Phase: 1 Ph
• Unit Height: 34-1/2 in
• Min. Circuit: 10.3 A
• Power Voltage: 115 V
• Power Frequency: 60 Hz
• Model Efficiency: 0.96
• Motor Speed Type: Multi Speed ECM
• Prop65 Label Required: TRUE
• High-Fire Input Capacity: 60000 Btu
• Airflow Rate High Heating: 327 ft³/min
• High-Fire Output Capacity: 57660
• Installation Type: Ducted
• Heat Exchanger Type: Gas
• Fuel Type: Gas
• Installation Configuration: Upflow/Horizontal
• Gas Valve Type: Single Stage Convertible
• Max Overcurrent Protection: 15.0 A
• Temperature Rise Range High Fire: 35-65 °F
• Air Flow Rate (High) - Heating: 1155 ft³/min
• Blower Motor RPM: 1200 r/min
• Filter Quantity: 1.0
• Filter Size - (Min): 16 x 25
• Number Of Burners: 3.0
• Vent Diameter: 2 in;3 in
• Dimensions - (Blower Diameter): 11 in
• Dimensions - (Blower Width): 8 in
• Minimum Clearances to Combustible Materials: 1 ft
• Gas Furnace BTU: 60000
• Gas Furnace Efficiency: 96%
• Gas Valve: Single-Stage
• Indoor Fan Blower Motor: Multi-speed blower
• Vent Type: Direct Vent
• Modulating/Staging: Single Stage
• Blower Motor Type: ECM Multi-Speed
• Heating BTU: 60000
• Maximum Air Flow: 1200 CFM
• Ultra Low NOx Emissions: No
• Low NOx Emissions: Yes
• Minimum Circuit Ampacity: 9.6 Amps
• Recommended Breaker Size: 15 Amps
• Flue Connection Size: 2 or 3 Inches
• Cabinet Width: 17 1/2 Inches
• Product Height: 34 1/2 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 29 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• AHRI Reference Number: 203400980
• BtuH Input: 60000
• BtuH Output: 57,660
• CFM @ 0.5″ ESP: 958
• Stages: Single-Stage
• Vent Size: 2″ – 3″
• Width (in.): 17.5
• Height (in.): 34-1/2
• Depth (in): 28-3/4
• Heating Capacity: 3 to 5 Tons
• Fuel: Natural Gas
• Max CFM: 1200
• Low Nox: No
