Goodman GMEC961004CN Gas Furnace 100000 BTU

GOODMAN
Brand: GOODMAN
SKU: GMEC961004CN
Availability: In Stock

Ships via freight in 1-3 business days

Final Sale / No Returns
$1,276.40
$1,276.40

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 140 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

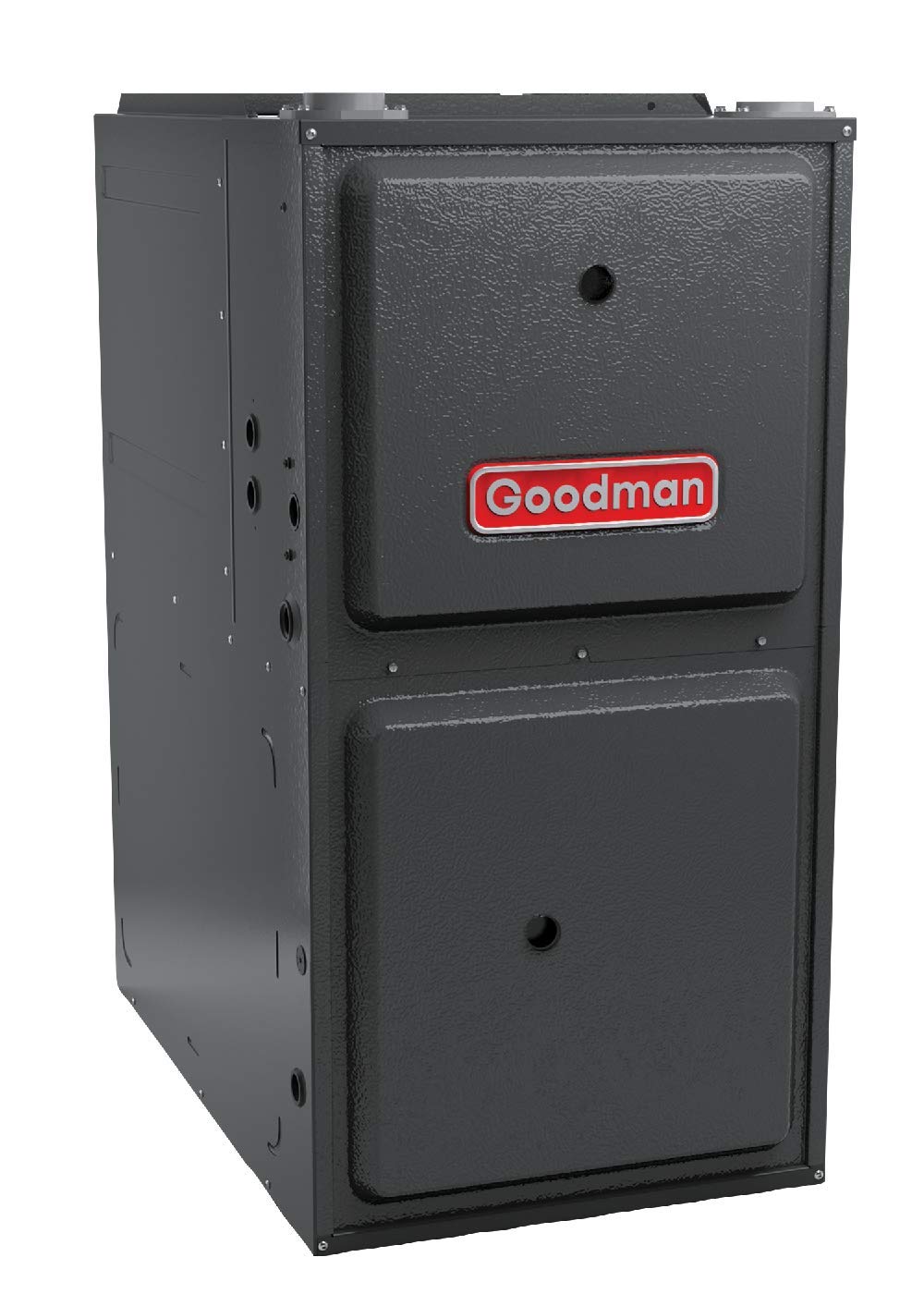

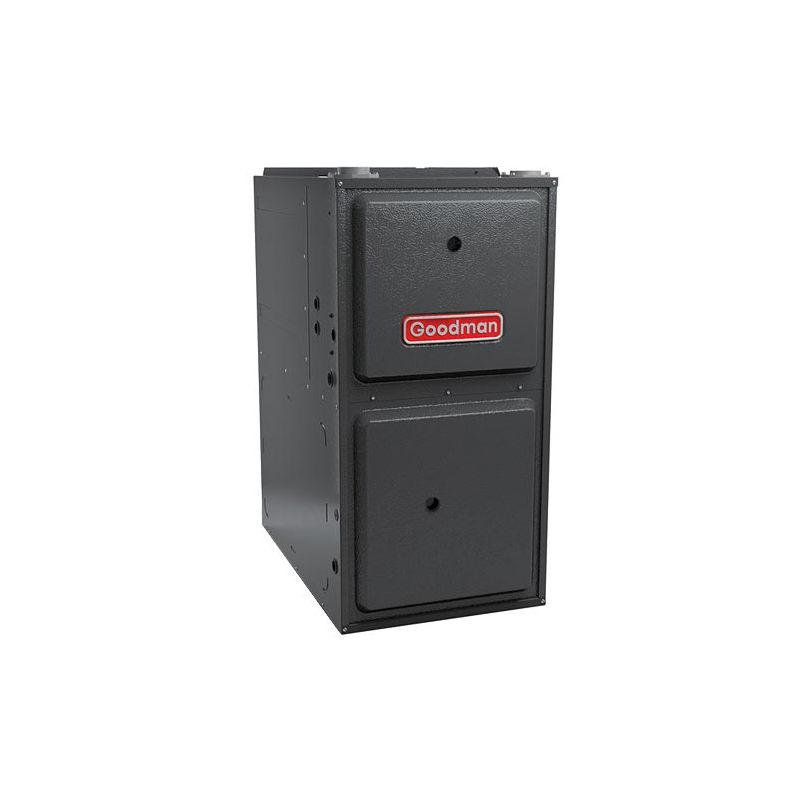

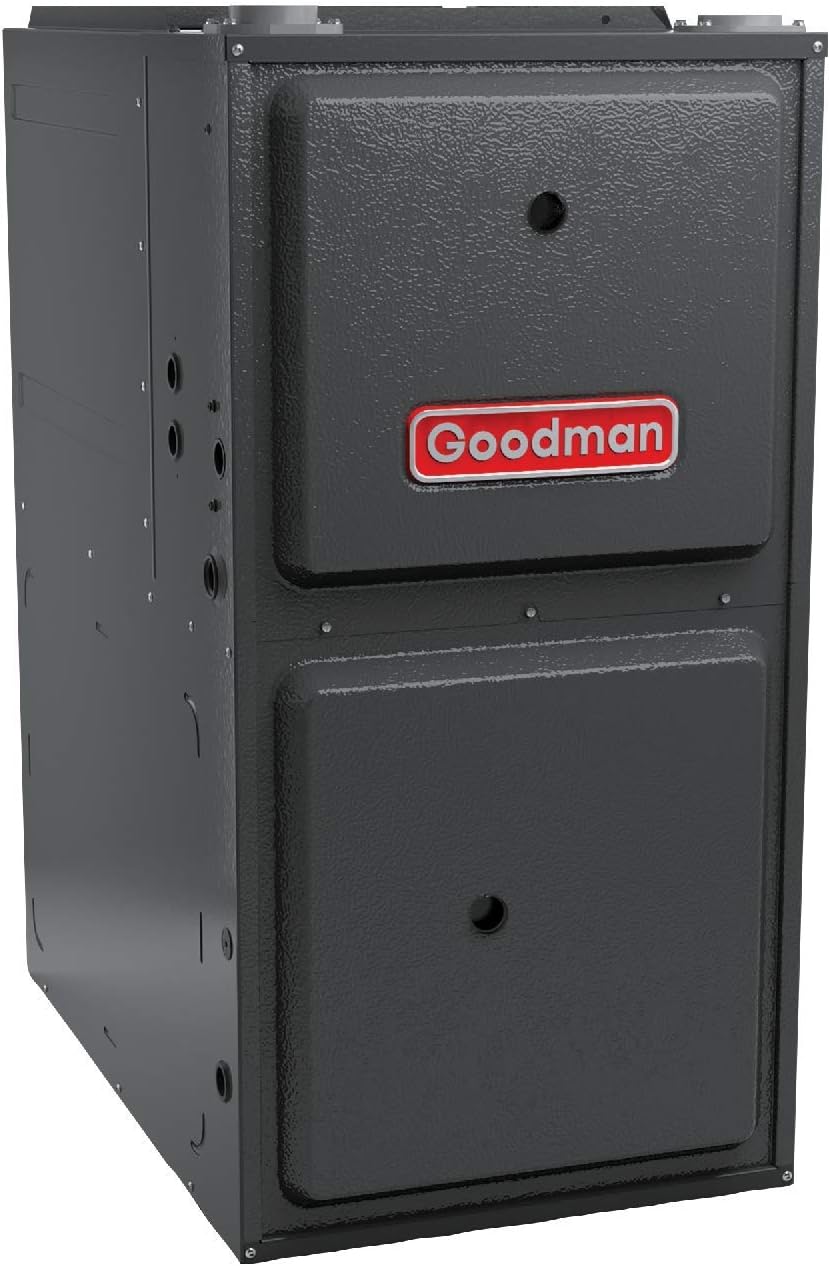

The Goodman GMEC961004CN gas furnace provides 96% AFUE. This multi-speed ECM, two-stage unit is designed for upflow or horizontal installation. The furnace features a heavy-duty aluminized-steel tubular heat exchanger and a stainless-steel sloped secondary heat exchanger. It is AHRI certified and ETL listed.

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel sloped secondary heat exchanger
  • Multi-speed ECM blower motor with continuous fan speed
  • Two-Stage gas valve

Product Highlights

The Goodman GMEC961004CN is a high-efficiency gas furnace with a two-stage valve and multi-speed ECM motor.

Product Information

Standard Information

  • Brand: GOODMAN
  • Manufacturer Part Number: GMEC961004CN
  • Country of Origin: USA
Technical Specifications
AFUE
96
Class
Gas Furnace
Family
GMEC96
Category
Gas Furnace
Keywords
GMEC961004CN
Unit Type
Indoor
Unit Depth
29"
Unit Width
21"
Power Phase
1
Unit Height
34-1/2"
Min. Circuit
14.1
Power Voltage
115 V
NOX Burner Type
Low NOx
Power Frequency
60 Hz
Model Efficiency
0.96
Motor Speed Type
Multi Speed ECM
High-Fire Input Capacity
100000 Btu
High-Fire Output Capacity
96000
Brand
Goodman
Manufacturer
Goodman
Item Model Number
GMEC961004CN
Heating Capacity
100,000 BTU
CFM
1600 CFM
Cabinet Width
21"
Voltage Rating
115 V
Phase
1 ph
Hertz
60 Hz
Installation Type
Ducted
Product Type
Equipment
System Family
Unitary Split System
Function Category
Heating Only
Market Type
Residential-Single Family
Heat Exchanger Type
Gas
Installation Configuration
Upflow/Horizontal
Gas Valve Type
Two Stage
Vent Diameter
2 in;3 in
Low-Fire Input Capacity
70000
Low-Fire Output Capacity
67200
Blower Available AC Tonnage High
4 Tonnage
Blower Available AC Tonnage Low
1.5 Tonnage
Temperature Rise Range High Fire
35-65 °F
Temperature Rise Range Low Fire
35-65 °F
Blower Motor HorsePower
1 metric hp
Core Material
Aluminium Alloy
Control Method
App
Special Feature
Air Purification Filter
Air Flow Efficiency
1200 Cubic Feet Per Minute Per Watt
Blower Motor
Multi-Speed - ECM
Maximum CFM
1600
Configuration
Upflow/Horizontal
Flue Location
Right
Energy Star
Yes
Electrical
115 V. 1 Phase 60 Hz
Burner Stages
Two
Fuel Type
Gas
Height
34.5"
Depth
28.75"
Airflow Direction
Upflow/Horizontal
Exhaust Flue Requirement
Plastic / PVC
Material
Heavy Gauge Steel
Tonnage
4 ton
Amperage Rating
13.3 A
HP Rating
1 hp at 1075 rpm
Input BTU Rating
100000 Btu/hr
Frequency Rating
60 Hz
Connection Type
1/2 in FPT
Number Of Burners
5.0
Max Overcurrent Protection
20 A
Prop65 Label Required
TRUE
