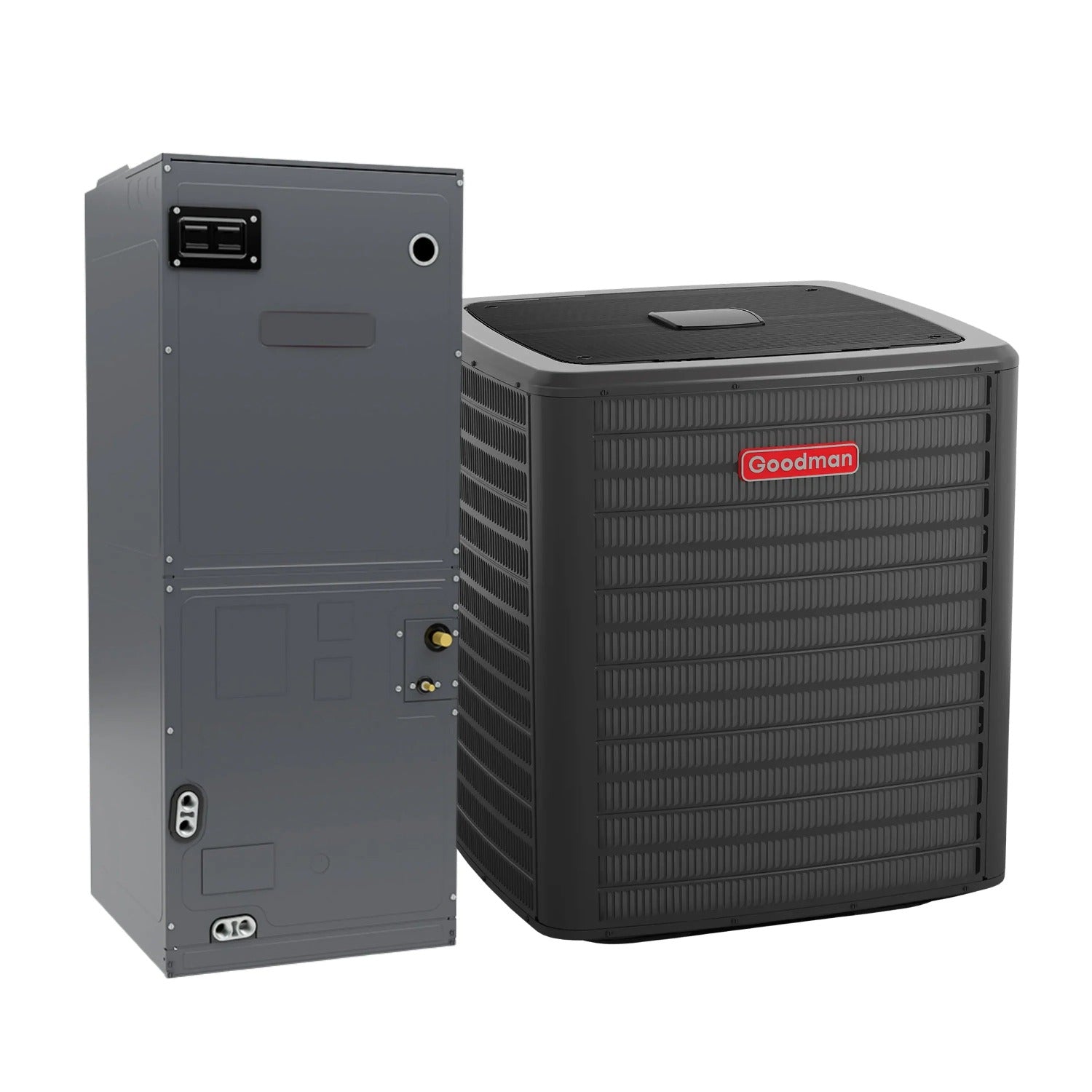

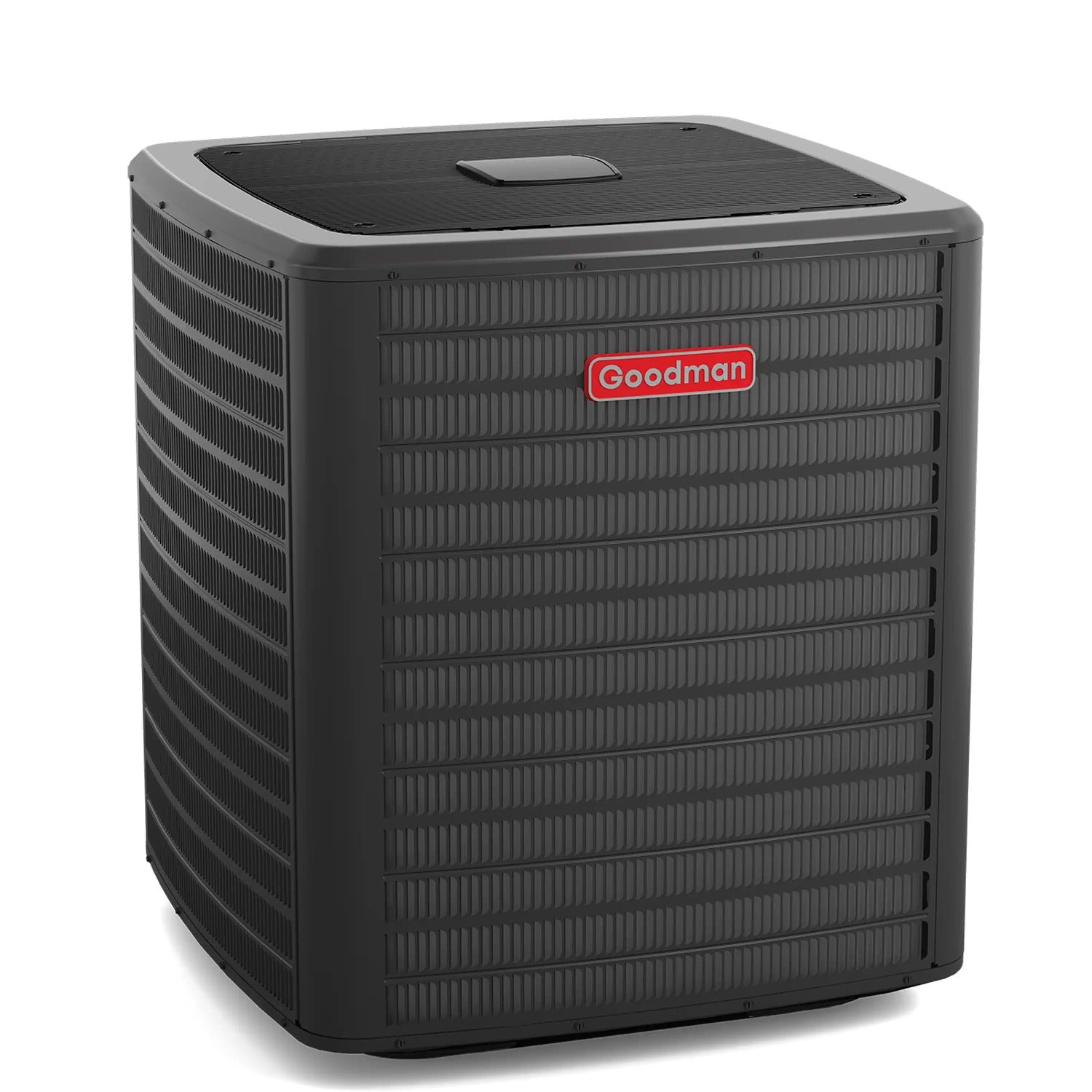

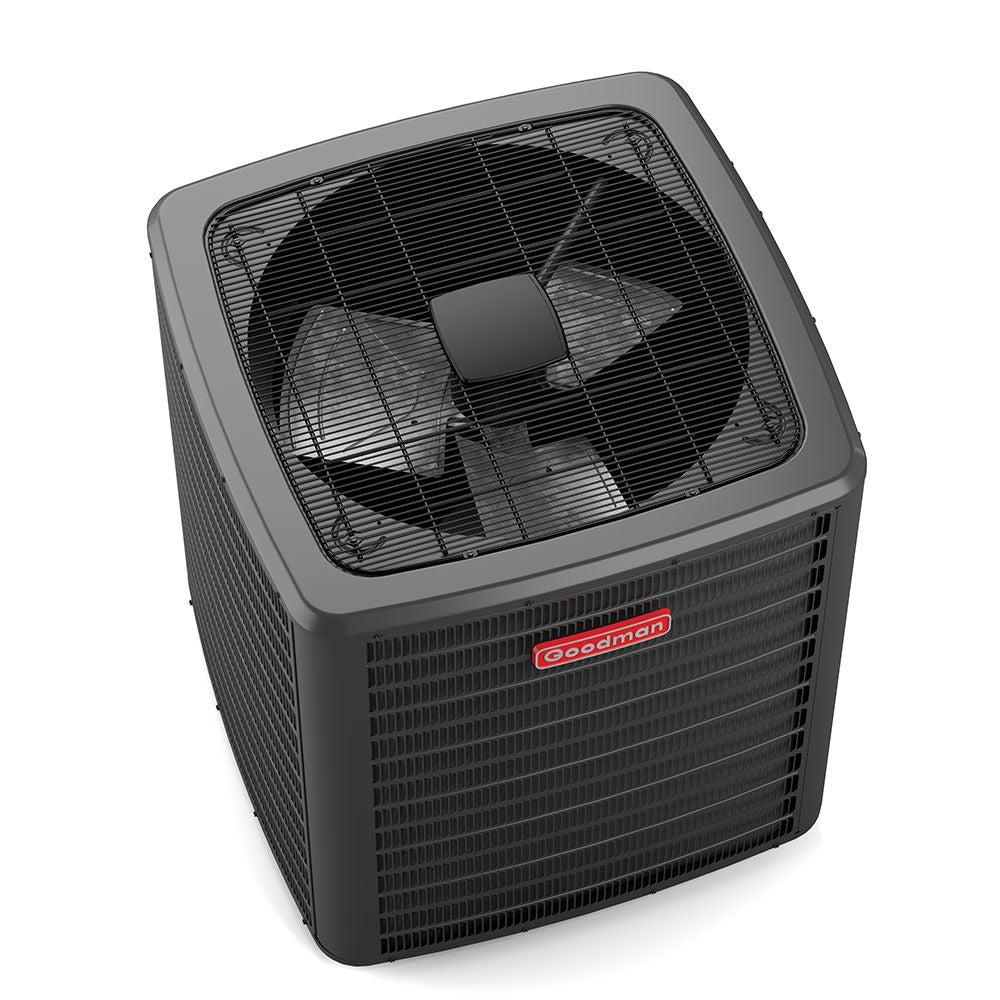

The Goodman GLZT7CA6010 is a GLZT7C series outdoor split heat pump featuring a two-stage scroll compressor and 17.2 SEER2 efficiency for a 5.0 ton capacity. It provides rated cooling of 57,000 Btu/h and rated heating of 58,000 Btu/h, operates on 208/240 V single-phase power, and uses R-32 refrigerant with a factory charge of 198 oz. Integrated ComfortBridge communication and Bluetooth commissioning support diagnostics and setup.
Two-stage Copeland UltraTech scroll compressor with two-speed ECM condenser fan motor and high-density foam compressor sound blanket
Integrated ComfortBridge communicating technology plus Bluetooth commissioning and diagnostic capability via the CoolCloud app
Factory-installed bi-flow liquid-line filter drier, suction-line accumulator, compressor crankcase heater, high-capacity muffler, and coil/ambient temperature sensors
Product Highlights
5.0 ton outdoor R-32 split heat pump, 17.2 SEER2, two-stage scroll compressor, ComfortBridge communication, factory-installed service components
Product Information
Standard Information
Brand: GOODMAN
Manufacturer Part Number: GLZT7CA6010
Country of Origin: United States
Technical Specifications
MPN
GLZT7CA6010
Brand
Goodman
Series
GLZT7C
Product Type
Split heat pump (outdoor unit)
Model Efficiency
17.2 SEER2
SEER2 (HSVTC)
16.2
EER2 (HSVTC)
11.7
HSPF2 (HSVTC)
8.2
Cooling Capacity (Rated)
57,000 Btu/H
Heating Capacity (Rated)
58,000 Btu/H
Tonnage
5.0 Ton
Compressor Type
Copeland UltraTech scroll
Compressor Stages
Two stage
Refrigerant Type
R-32
Factory Standard Refrigerant Charge
198 oz
Power Voltage
208/240 V
Power Phase
1 Ph
Power Frequency
60 Hz
Rated Load Amps
27.1 A
Min. Circuit Amps
36.4 A
Max Overcurrent Protection
60 A
Sound Pressure (High) - Cooling
75 dBA
Dimensions (Height x Width x Depth)
35.5 in x 35.5 in x 41.625 in
Weight (Unit)
306 lb
Max Line Set Length
150 ft
Standard Line Set Length (Vertical Max)
80 ft
Liquid Line Size
3/8 in
Suction Valve Size (O.D.)
1-1/8 in
Rated Cooling Condition (Ambient DB)
95 F
Rated Heating Condition (Ambient DB)
47 F
Installation Configuration
Top discharge
Fan Motor
Two-speed ECM condenser fan motor
Coil Construction
Copper tube / enhanced aluminum fin coil (7mm for 4.0-5.0T)
Factory-installed Components
Bi-flow liquid-line filter drier; suction-line accumulator; compressor crankcase heater; high-capacity muffler; coil and ambient temperature sensors
Communication/Controls
Integrated ComfortBridge communicating technology; commissioning and diagnostics via indoor board Bluetooth with CoolCloud app
