Product Description

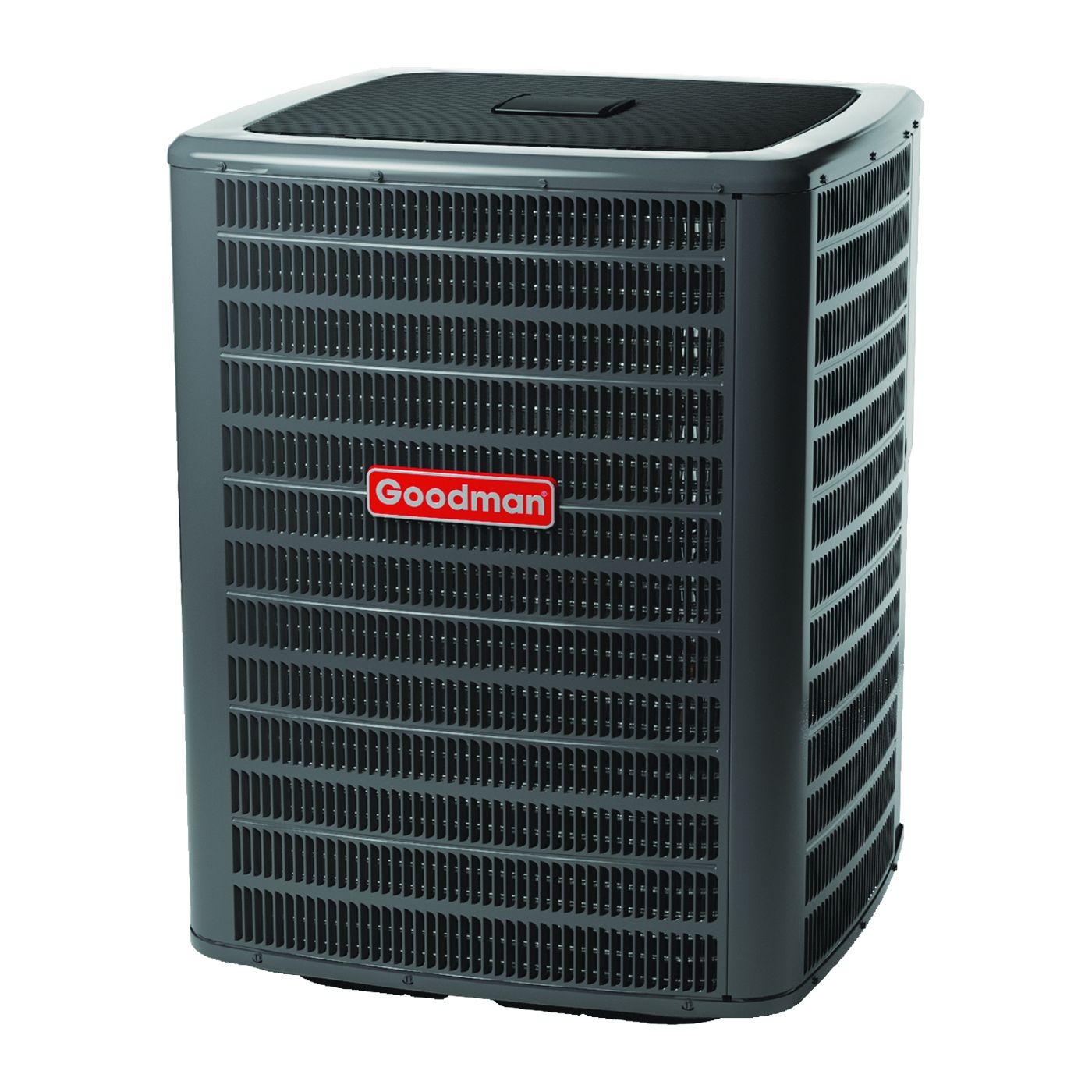

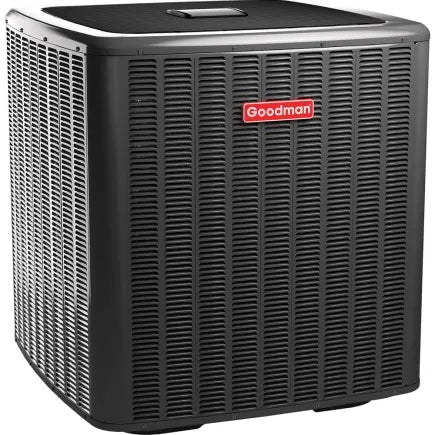

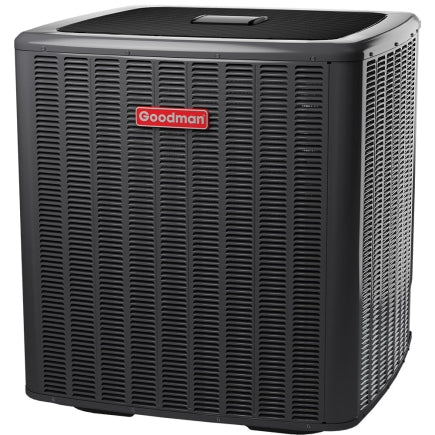

The GOODMAN DSXC180601 is a 5 ton 18 SEER air conditioner. This unit features a two-stage, high-efficiency Copeland scroll compressor for improved temperature and humidity control. It uses the environmentally friendly refrigerant R-410A and operates at 230 Volts. Designed for superior comfort and quiet operation, this air conditioner is a reliable choice for your cooling needs.
- High-efficiency two-stage scroll compressor
- ComfortNet Communications System compatible
- Factory-installed filter drier
Product Highlights
The GOODMAN DSXC180601 air conditioner provides efficient cooling with its two-stage compressor and R-410A refrigerant.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: DSXC180601
Technical Specifications
-
Color: Gray
-
Voltage: 230 Volts
-
Department: HVAC
-
Model Name: DSXC180601
-
Refrigerant: R 410A
-
Power Source: Corded Electric
-
Number of Speeds: 2
-
Batteries required: No
-
Seasonal Energy Efficiency Ratio (SEER): 18
-
Phase: 1
-

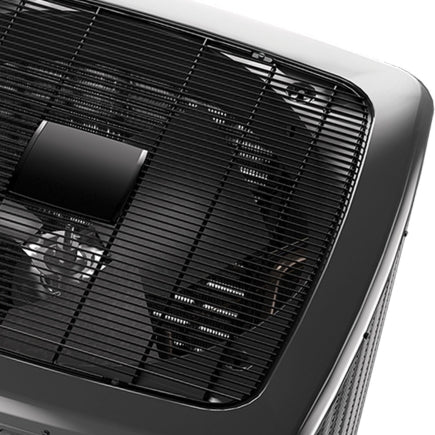

Motor: High-efficiency two-speed ECM condenser fan motor
-
Liquid Line Valve Connection: 3/8
-
Suction Line Valve Connection: 7/8
-
SKU: DSXC180601
-
Brand/Manufacturer: Goodman
-
Blower Motor: Variable Speed - ECM
-
Maximum CFM: 2,000
-
Electric Backup Heat Capabilities (Optional): 3 Kilowatts, 5 Kilowatts, 6 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
-
Max Breaker Size: 60 amps
-
Tonnage: 5 Ton
-
Configuration: Upflow / Downflow
-
Liquid Line: 3/8"
-
Suction Line: 7/8"
-
Style: A-Coil
-
Cooling BTU: 57,000
-
Decibel Level (dBA): 74
-
Energy Star: No
-
SEER1 (Efficiency): 18
-
Condenser Stages: Two Stage
-
Compressor Type: Scroll
-
Liquid Valve Size: 3/8"
-
Suction Valve Size: 7/8"
-
Electrical: 208 / 230 V. 1 Phase 60 Hz
-
Min. Breaker Size: 36.7 amps
-
Valve Type: Sweat
-
UPC: 663051504028
-
Product Height (in): 38.25
-
Avg Coverage Area: 2,500 - 3,000 Sq Ft
-
Product Length (in): 35.5
-
Compressor: Two Stage
-
Product Width (in): 35.5
-
Cooling Capacity: 5 Ton
-
Electrical Phase: 1-Phase
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 3/8 inch
-
Max Overcurrent Protection: 60 amps
-
Cooling Efficiency: 18 SEER
-
Suction Line Size: 1 1/8 inch
-
System Application Type: Central Split Systems
-
Voltage Rating: 208/230VAC
-
Noise Rating: 74dB
-
Refrigerant Type: R-410A
-
Amp(s): 60
-
Height (Inches): 38 1/4
-
Width (Inches): 35 1/2
-
Depth (Inches): 35 1/2
-
Region Compatibility: Nationwide
