DAIKIN Daikin DAT12043 Air Handler Two-Speed PSC Motor 10 Ton 208-230 V 3-Phase (48.5 in)
DAIKIN Daikin DAT12043 Air Handler Two-Speed PSC Motor 10 Ton 208-230 V 3-Phase (48.5 in)

Daikin DAT12043 Air Handler Two-Speed PSC Motor 10 Ton 208-230 V 3-Phase (48.5 in)

DAIKIN
Brand: DAIKIN
SKU: DAT12043
Availability: In Stock

Ships via freight in 1-3 business days

Final Sale / No Returns
$3,390.32
$3,390.32

This is a Final Sale item and cannot be returned or refunded. Exceptions apply for damaged or defective items.

LTL Delivery

This product weighs 430 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

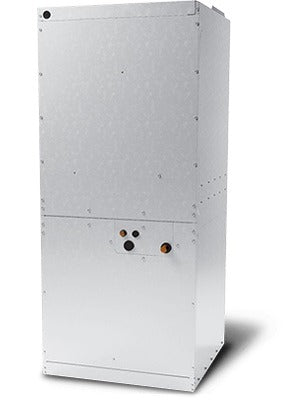

The Daikin DAT12043 is a 10-ton indoor air handler configured for cooling or heat pump applications, featuring a two-speed PSC blower motor and TXV expansion. It uses a belt-driven draw-thru centrifugal blower with copper tube/aluminum fin coils and supports upflow or horizontal (left side) installation. The unit is AHRI certified and ETL listed, housed in a reinforced galvanized-steel cabinet with a built-in 2" filter rack.

  • Two-speed PSC blower motor with belt-driven draw-thru centrifugal blower and TXV control (two thermal expansion valves).
  • Multi-position installation (upflow or horizontal left) for one 10-ton system or two 5-ton systems; 4000 CFM high cooling airflow.
  • Reinforced galvanized-steel insulated cabinet with removable access panels, horizontal and vertical condensate pans, and included 2" filter.

Product Highlights

Multi-position 10-ton air handler with two-speed PSC motor, TXV expansion, R-410A, and 4000 CFM high airflow

Product Information

Standard Information

  • Brand: DAIKIN
  • Manufacturer Part Number: DAT12043
Technical Specifications
Brand
Daikin
Manufacturer Part Number
DAT12043
Product Type
Air Handler
Model Family
DAT
Family Description
Multi-Position, Two-Speed Belt drive, Air Handler, 7.5 & 10 Tons
Tonnage
10 tons
Unit Type
Indoor
Dimensions
48.5 in (W) x 24 in (D) x 60.5 in (H)
Weight
430 lb
Phase
3
Input Voltage
208-230 V
Frequency
60 Hz
Min Voltage
187 V
Max Voltage
253 V
Min Circuit Amps
7.5 A
Refrigerant
R-410A
Motor Type
Two-speed PSC motor
Blower Type
Draw-thru centrifugal, belt driven
Airflow Rate (High Cooling)
4000 CFM
TXV
Two thermal expansion valves (TXV control)
Coil Material
Copper tube / aluminum fin
Condensate Pans
Horizontal and vertical
Filter Included
2 in filter
Cabinet Features
Heavy-gauge, reinforced galvanized-steel cabinet; fully insulated with fiberglass blanket; removable access panels; built-in 2" filter rack; top panel entry for low and high voltage
Certifications
AHRI certified; ETL listed
Prop65 Label Required
TRUE
