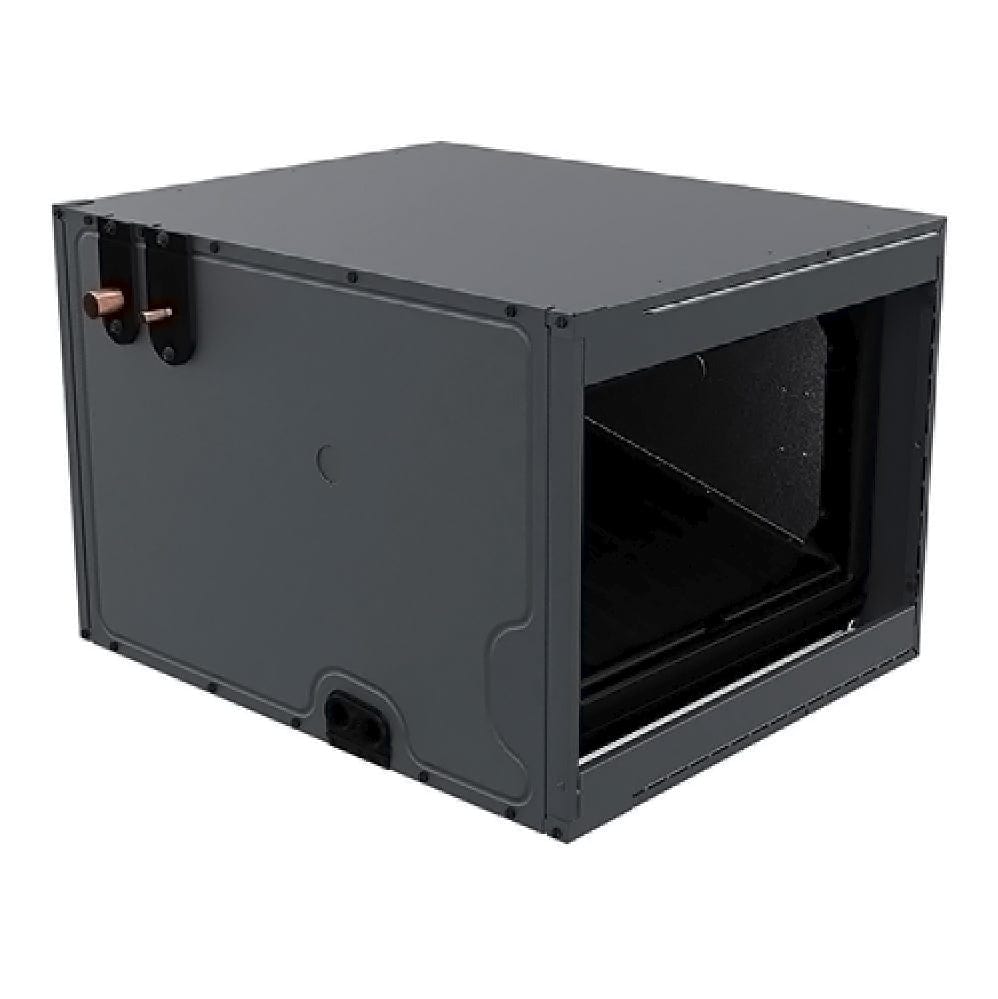

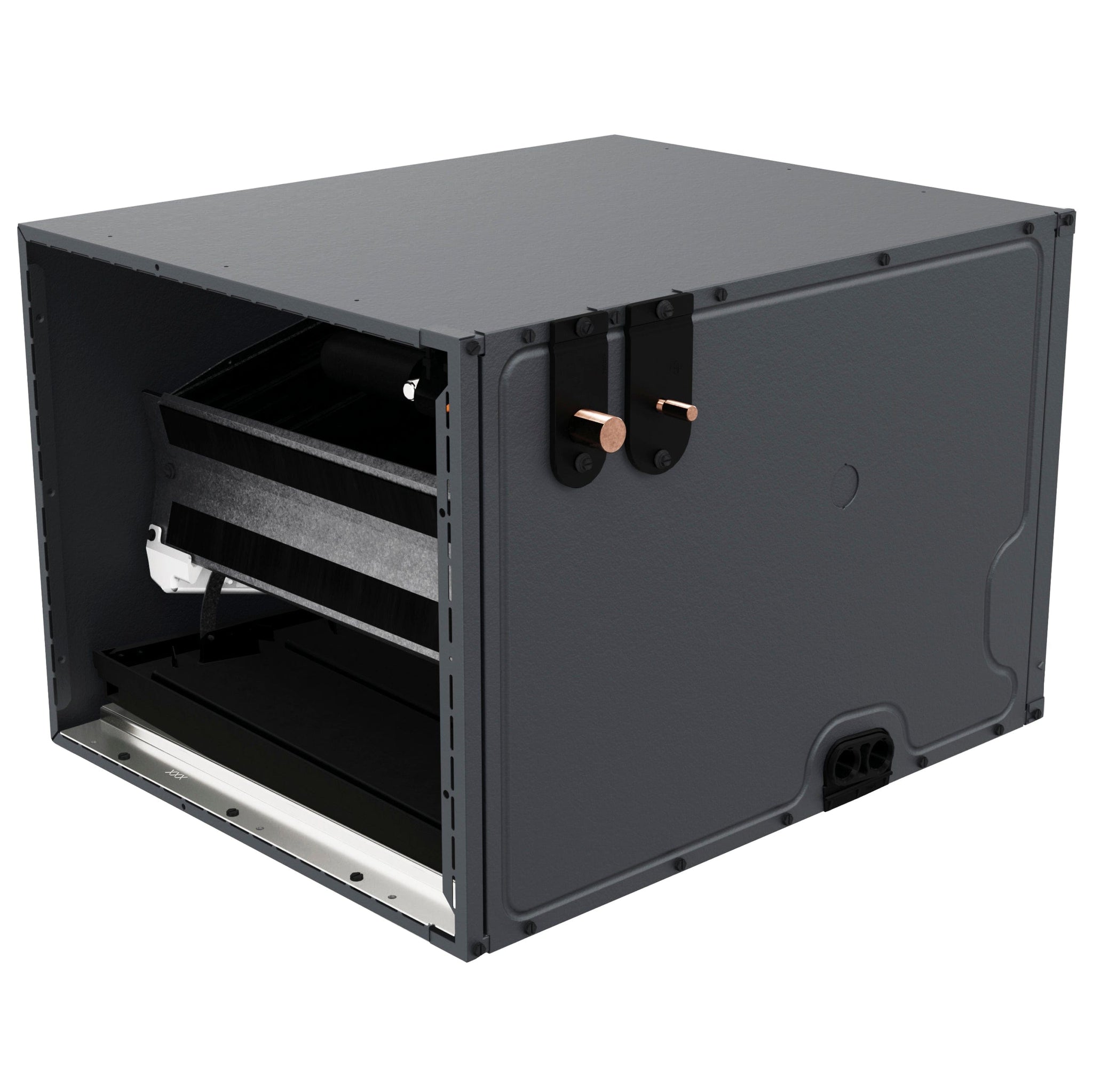

Goodman CHPTA6030D3 5 Ton Horizontal Evaporator Coil

Product Description

The Goodman CHPTA6030D3 is a five-ton horizontal evaporator coil designed to improve cooling applications. This unit is built with all-aluminum materials which enhance durability and promote efficient heat transfer. It is compatible with R-32 refrigerant, ensuring optimal performance within modern systems. The evaporator coil comes with a factory-installed thermal expansion valve (TXV) for ease of installation and reliability.

• All-aluminum evaporator coil for efficient heat transfer.
• Optimized for R-32 refrigerant.
• Factory-installed thermal expansion valve (TXV) included.

Product Highlights

The Goodman CHPTA6030D3 features a thermoplastic drain pan that includes secondary drain connections for better management of moisture. The cased design further supports secure installation within various HVAC systems.

Product Information

Standard Information

• Brand: Goodman
• MPN: CHPTA6030D3

Technical Specifications

• Product Line: CHPTA
• Product Category: Evaporator Coil
• Type: Evaporator Coil
• Cooling Capacity: 60000 BTU
• Refrigerant Type: R-32
• Configuration: Horizontal
• Coil Type: A Coil
• TXV Installed: Yes
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 24.5 Inches
• Product Height: 24.5 Inches
• Product Width: 30 Inches
• Product Depth: 21 Inches
• Product Weight: 67 Pounds
• Shipping Weight: 82 Pounds
• Certifications: AHRI, ETL, ISO
• Warranty: 10 Year Parts
• Parts Warranty: 10 Limited Years
