Goodman CHPTA1822A3 Horizontal Evaporator Coil 1.5 Ton Replacement MPN

Product Description

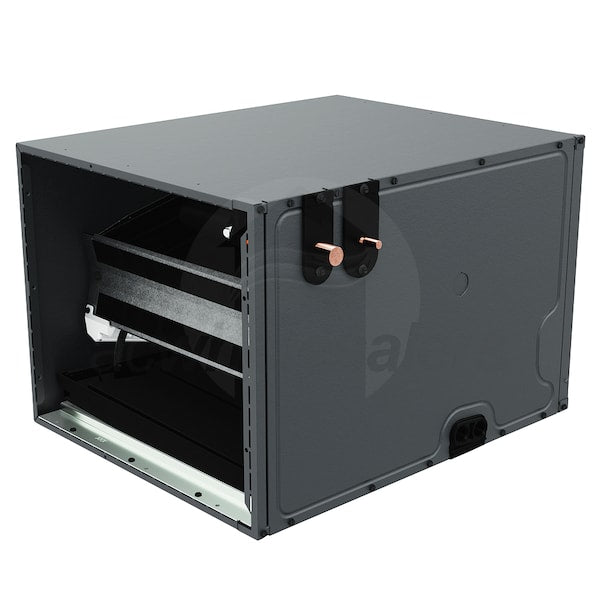

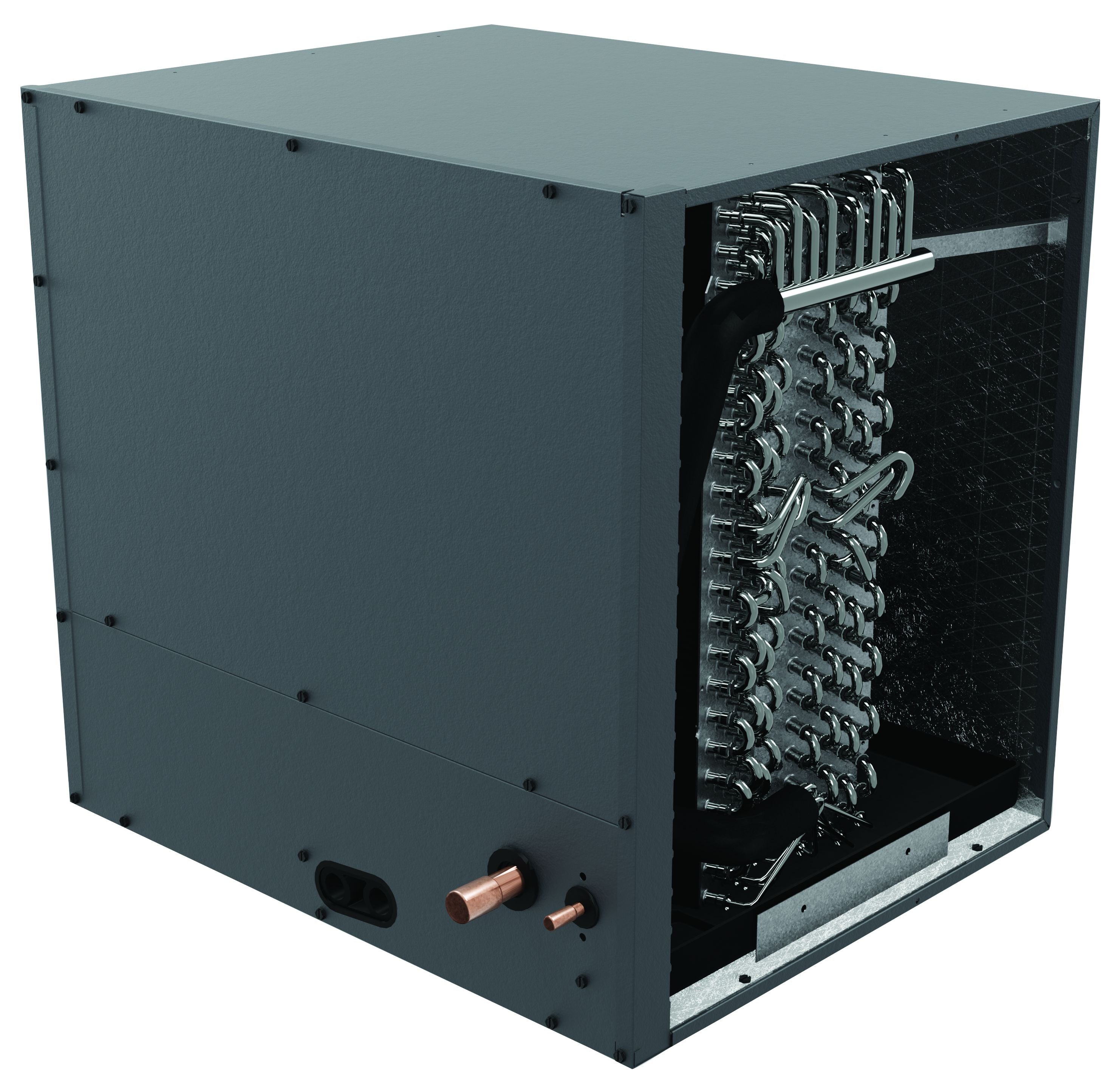

The Goodman CHPTA1822A3 is a durable evaporator coil designed for horizontal airflow used in split system air conditioners and heat pumps. It features an all-aluminum construction and is compatible with R-32 refrigerant. This unit comes with a thermal expansion valve (TXV) factory-installed and includes a thermoplastic drain pan to enhance functionality. The design allows for effective heat transfer and reliable performance.

• All-aluminum evaporator coil.
• Factory-installed thermal expansion valve (TXV).
• Optimized for R-32 refrigerant usage.

Product Highlights

This evaporator coil is essential for efficient cooling and heating in HVAC systems. Its robust design and specialized features make it suitable for various residential and commercial applications.

Product Information

Standard Information

• Model Number: CHPTA1822A3
• Product Line: CHPTA

Technical Specifications

• Type: Evaporator Coil
• Configuration: Horizontal
• Refrigerant Type: R-32
• Cooling Capacity: 1.5 Tons
• Cooling BTU: 18000 BTU
• Heating BTU: 30000 BTU
• Airflow Orientation: Horizontal
• TXV Installed: Yes
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 14 Inches
• Coil Width: 22 Inches
• Product Height: 14 Inches
• Product Width: 22 Inches
• Product Depth: 21 Inches
• Maximum Air Flow: 1200 CFM
• Product Weight: 46 lbs
• Shipping Weight: 46 lbs
• Warranty: 10 Year Parts
• Certifications: AHRI, ETL, ISO
