Goodman CAUTA3626B3 3 Ton R-32 Upflow/Downflow Uncased A Coil with TXV

Product Description

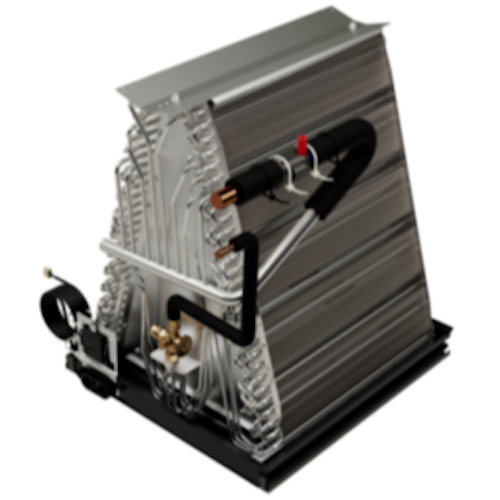

The Goodman CAUTA3626B3 is a 3-ton uncased A coil suitable for both upflow and downflow configurations in split system air conditioners and heat pumps. This unit is engineered with an all-aluminum evaporator coil, which is specifically optimized for R-32 refrigerant use. It comes equipped with a factory-installed thermostatic expansion valve (TXV) and features a thermoplastic drain pan, enhancing both efficiency and durability.

• All-aluminum evaporator design.

• Compatible with R-32 refrigerant systems.

• Includes factory-installed TXV for improved performance.

Product Highlights

The Goodman CAUTA3626B3 enhances heat transfer efficiency and durability for effective cooling in HVAC applications.

Product Information

Standard Information

• Brand: Goodman

• Product Line: CAPTA

Technical Specifications

• MPN: CAUTA3626B3

• Tonnage: 3.0 Tons

• Cooling Capacity: 36,000 BTU

• Refrigerant Type: R-32

• Coil Type: A Coil

• Configuration: Upflow/Downflow

• Casing: Uncased

• TXV Installed: Yes

• Suction Line Size (OD): 7/8 Inches

• Liquid Line Size (OD): 3/8 Inches

• Cabinet Width: 17 1/2 Inches

• Width: 17.5 Inches

• Depth: 21 Inches

• Height: 26 Inches

• Product Weight: 48 lbs

• Shipping Weight: 48 lbs

• AHRI Certified: Yes

• ETL Listed: Yes

• ISO Certified: Yes
