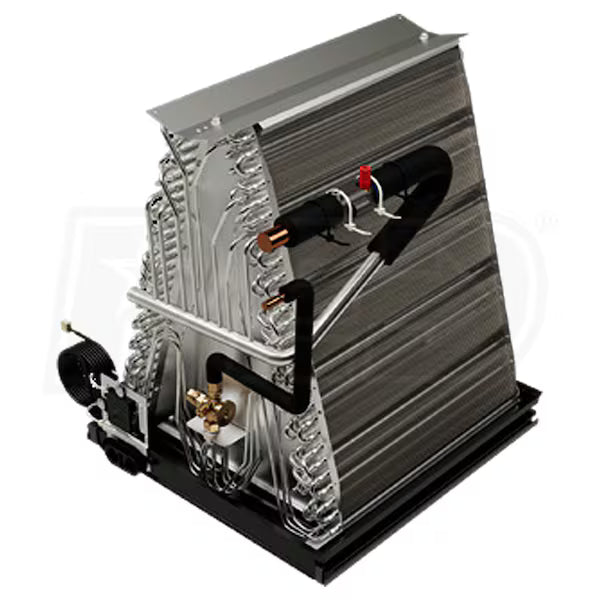

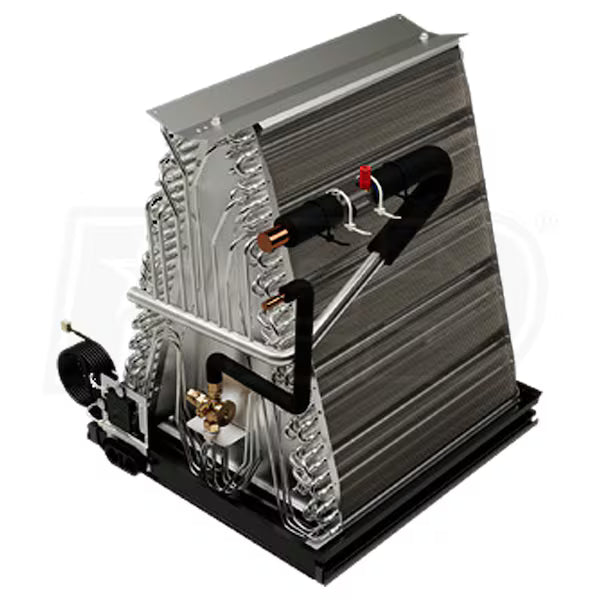

Goodman CAUTA1818A3 Evaporator Coil, Upflow/Downflow, (1.5 Ton)

Product Description

The Goodman CAUTA1818A3 is an uncased evaporator coil suitable for both upflow and downflow installations. This unit has an all-aluminum construction and is specifically designed to work effectively with R-32 refrigerant. It comes equipped with a factory-installed thermal expansion valve (TXV) for enhanced cooling performance.

• All-aluminum evaporator coil design

• Suitable for R-32 refrigerant systems

• Includes factory-installed TXV for cooling

Product Highlights

The CAUTA1818A3 features a thermoplastic drain pan with secondary drain connections, enhancing drainage performance. The internal casing is insulated with foil-faced material to reduce condensation.

Product Information

Standard Information

• Brand: GOODMAN

• MPN: CAUTA1818A3

• Type: Evaporator Coil

• Style: A Coil

• Configuration: Upflow/Downflow

Technical Specifications

• Refrigerant Type: R-32

• Casing: Uncased

• Capacity: 1.5 Tons

• Cooling BTU: 18000

• Nominal Minimum Cooling Capacity: 18000 BTU

• Suction Connection Size: 3/4 Inch

• Liquid Connection Size: 3/8 Inch

• Product Height: 15 Inches

• Product Width: 16 1/2 Inches

• Product Depth: 21 1/3 Inches

• Shipping Weight: 24 Pounds
