Product Description

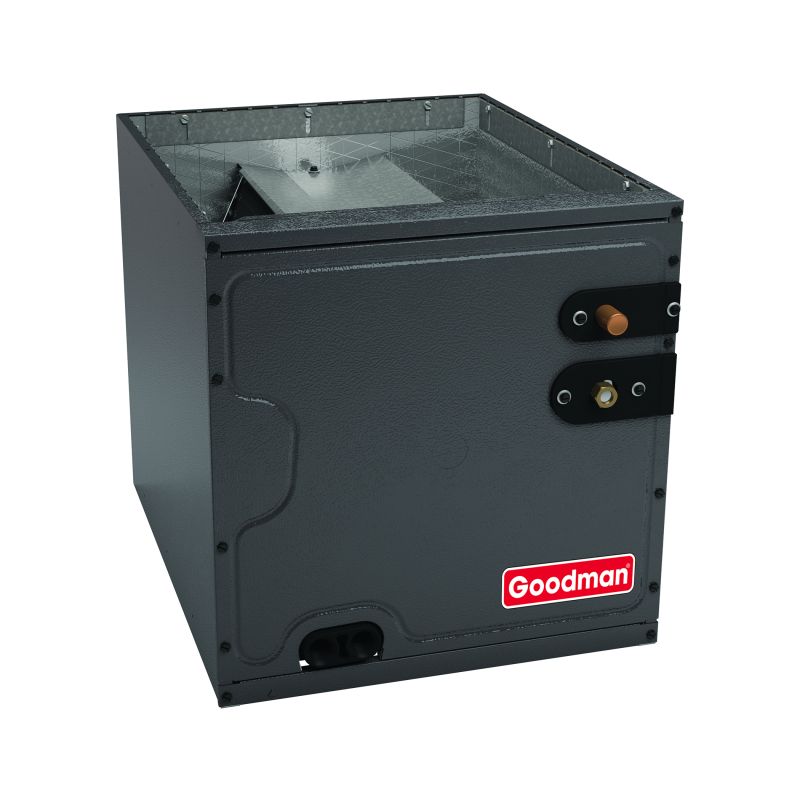

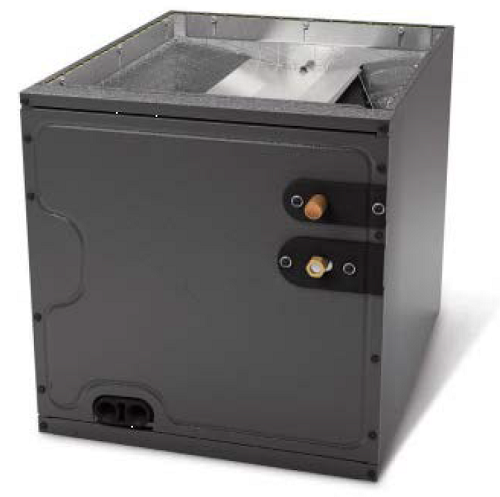

The Goodman CAPFA2422B6 is an air conditioner cased coil designed with accessibility and longevity in mind. Suitable for upflow or downflow applications, this cased A coil features an all-aluminum design with sine fins and grooved tubes for efficient heat transfer. The galvanized, embossed, and insulated cabinet protects the coil and prevents air leakage. Compatible with R-22 and R-410A refrigerants.
- All-aluminum coil design maximizes surface area and optimizes heat transfer.
- Galvanized, embossed, and insulated cabinet prevents air leakage.
- Compatible with both R-22 and R-410A refrigerants.
Product Highlights
The Goodman CAPFA2422B6 evaporator coil provides efficient cooling and is designed for versatile installation and lasting performance.
Product Information
Standard Information
-
Brand: GOODMAN
-
Manufacturer Part Number: CAPFA2422B6
Technical Specifications
-
Casing: Cased
-
Tonnage: 2.0 Ton
-
Cabinet Width: 17 1/2 Inches
-
Performance_Capacity: 2.0 Tons
-
Performance_Cooling BTU: 24000 BTU
-
Dimensions_Product Depth: 21 Inches
-
Dimensions_Product Width: 17 1/2 Inches
-
General Information_Type: Evaporator Coil
-
Certifications_ETL Listed: Yes
-
Dimensions_Product Height: 22 Inches
-
General Information_Style: A Coil
-
Certifications_AHRI Certified: Yes
-
General Information_Product Line: CAPF
-
Dimensions_Liquid Connection Size: 3/8 Inch
-
General Information_Configuration: Upflow/Downflow
-
General Information_TXV Installed: No
-
Dimensions_Suction Connection Size: 3/4 Inch
-
General Information_Refrigerant Type: R-22/R-410A
-
Performance_Nominal Minimum Cooling Capacity: 24000 BTU
-
Item Model Number: CAPFA2422B6
-
Part Number: CAPFA2422B6
-
Liquid Line Size: 3/8 inch
-
Suction Line Size: 3/4 inch
-
Tubing Material: Aluminum
-
Fin Material: Aluminum
-
Condensate Drain Connections: 3/4 inch FNPT
-
Cabinet Depth: 21 inch
-
Cabinet Height: 22 inch
-
Finish/Color: Painted
-
Number Of Rows: 3
-
Orientation: Vertical
-
Piston Size: 0.059 inch
-
For Use With: R-22 Refrigerant, Heat Pump
-
Applications: For Cooling Applications
-
Standards/Approvals: AHRI Certified, ETL Listed
-
Brand/Manufacturer: Goodman
-
Refrigerant: R410A or R22
-
Liquid Line: 3/8"
-
Suction Line: 3/4"
-
Height: 22"
-
Width: 17 1/2"
-
Depth: 21"
-
Series: CAPFA Series
-
Coil Type: Type A
