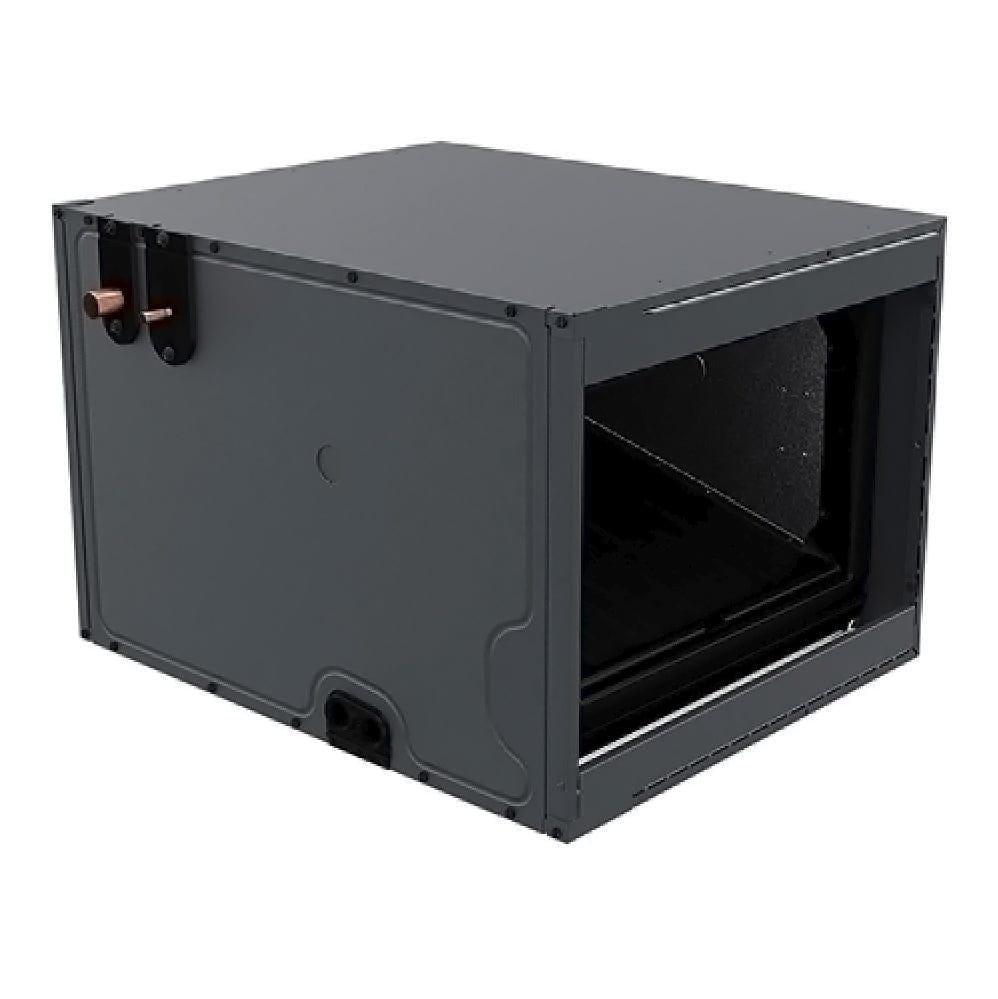

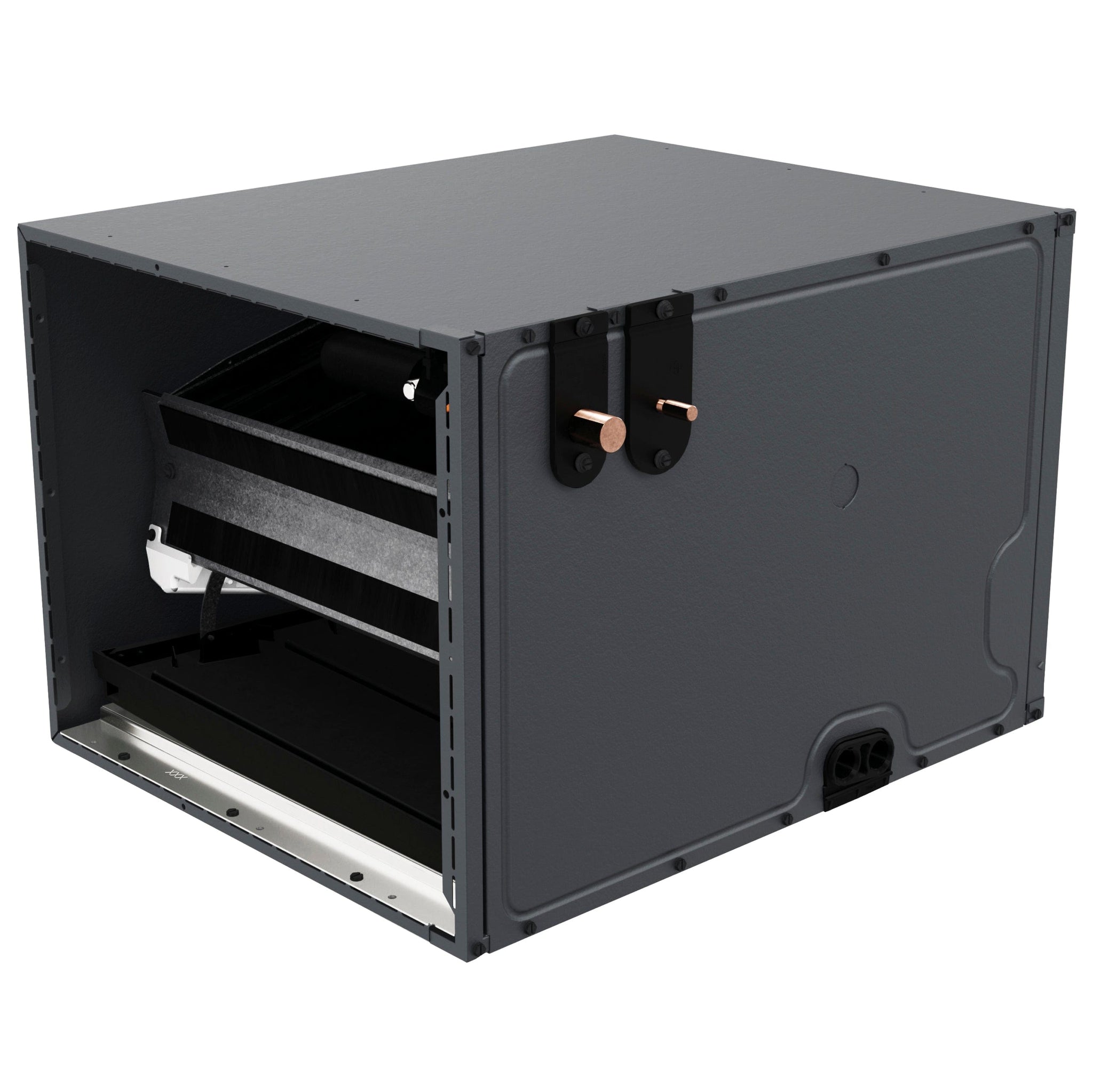

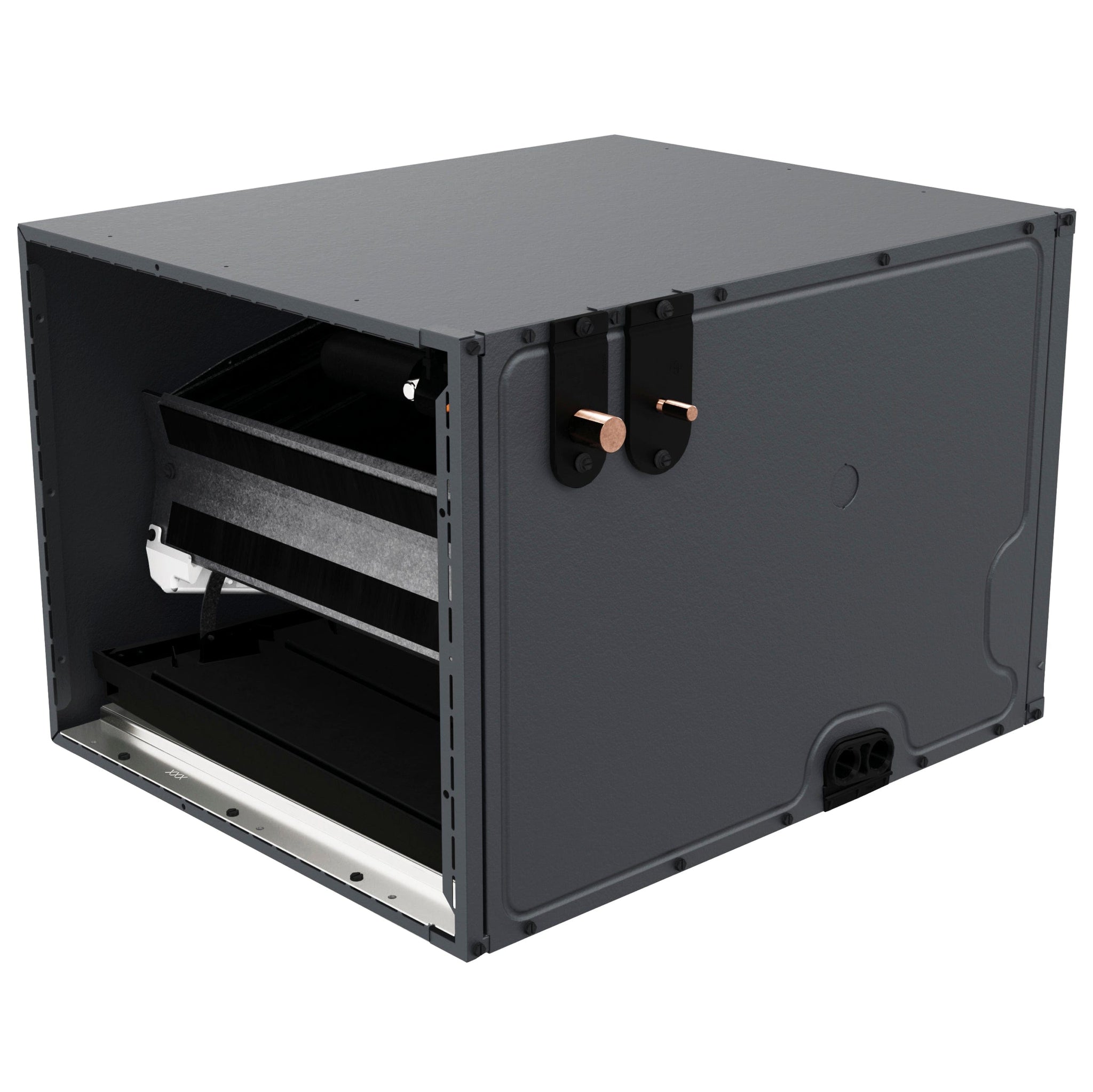

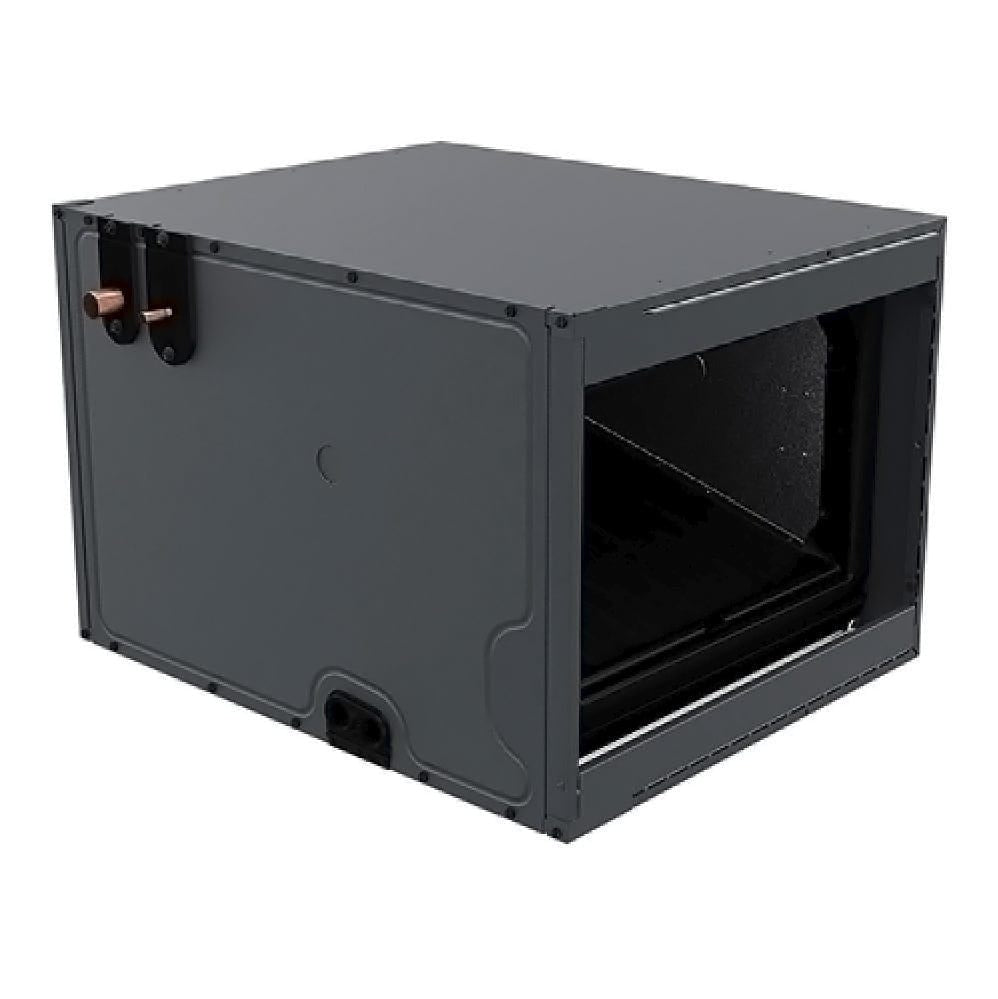

Goodman CAPEA6030D3 5.0 Ton Horizontal Evaporator Coil

Product Description

The Goodman CAPEA6030D3 is a five ton evaporator coil designed for horizontal airflow. It is made of all-aluminum material and optimized for R-32 refrigerant. This evaporator coil includes a factory-installed thermal expansion valve (TXV) and is suitable for cooling and heat pump systems. The housing features foil-faced insulation to minimize condensation. This unit can be installed in spaces ranging from two thousand four hundred to three thousand square feet.

• All-aluminum construction
• Optimized for R-32 refrigerant
• Features a DecaBDE-free thermoplastic drain pan

Product Highlights

This evaporator coil is built for efficiency and reliability. It operates effectively in both cooling and heating modes while ensuring reduced risk of condensation.

Product Information

Standard Information

• Brand: Goodman
• MPN: CAPEA6030D3

Technical Specifications

• Product Type: Evaporator Coil
• Configuration: Horizontal
• Cooling Capacity: 5.0 Ton
• Cooling BTU: 60000 BTU
• Refrigerant Type: R-32
• TXV Installed: Yes
• Casing: Cased
• Coil Type: A Coil
• Cabinet Width: 24.5 inches
• Product Width: 30 inches
• Product Height: 24.5 inches
• Product Depth: 21 inches
• Suction Connection Size: 7/8 inch
• Liquid Connection Size: 3/8 inch
• Certifications: AHRI, ETL, ISO
• Product Weight: 67 pounds
• Parts Warranty: 10 Limited Years
