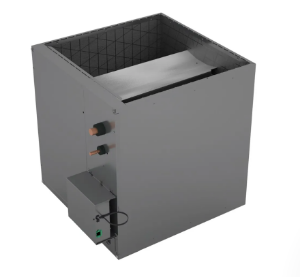

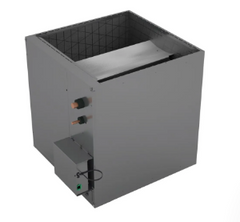

Goodman CAPEA3026B4 Evaporator Coil, 3 tons, Upflow/Downflow

Product Description

Goodman CAPEA3026B4 is a high-efficiency evaporator coil designed for both upflow and downflow applications. This model has a nominal capacity of three tons and is optimized for use with R-410A refrigerant. It includes a factory-installed electronic expansion valve for accurate refrigerant control. The coil measures seventeen and one half inches wide and twenty-six inches tall, making it suitable for standard installation in various systems.

• 3-ton capacity for residential heating and cooling
• Includes electronic expansion valve for enhanced performance
• Compatible with side discharge units

Product Highlights

The Goodman CAPEA3026B4 coil is built with all-aluminum construction and incorporates rifled aluminum tubing, ensuring durability and efficiency. The design includes a single front access panel for easier service and maintenance. This unit is AHRI certified and ETL listed for guaranteed performance and safety.

Product Information

Standard Information

• Manufacturer: Goodman Manufacturing
• Refrigerant Type: R-410A

Technical Specifications

• Width: 17.5 inches
• Height: 26 inches
• Nominal Capacity: 3 ton
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Coil Configuration: Cased Upflow/Downflow
• Tubing/Fin Construction: Rifled aluminum tubing, enhanced aluminum fins
• Expansion Device - Refrigerant Control: Electronic Expansion Valve - EEV
