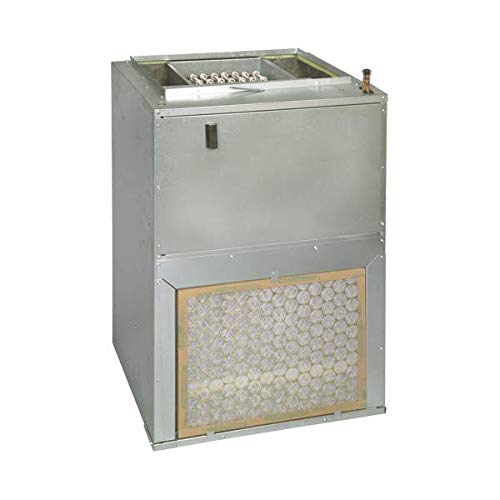

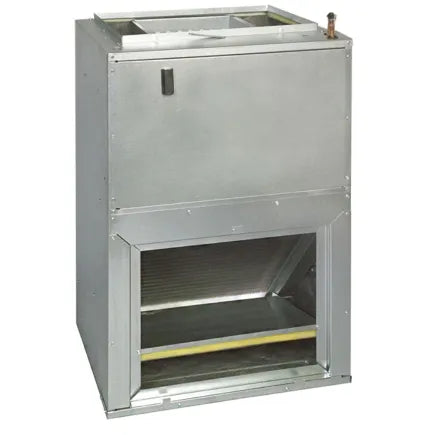

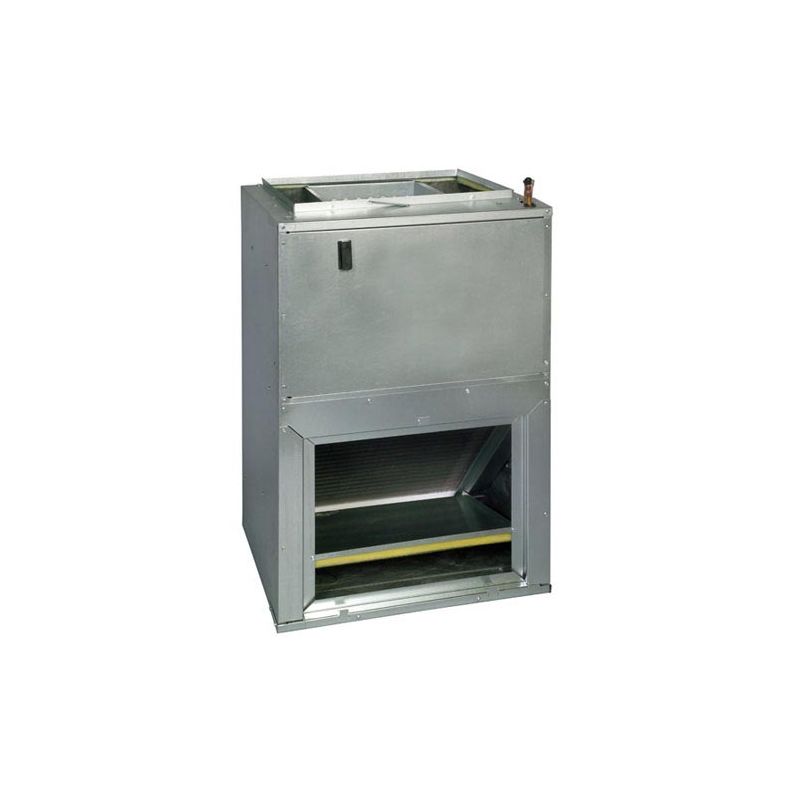

Goodman AWUF301016 Multi-Speed PSC Wall-Mount Air Handler 2.5 Ton, 10 kW

Product Description

The Goodman AWUF301016 is a 2.5 Ton wall-mount air handler with a multi-speed PSC flowrater. It features heating at 10 kW and cooling at 30,000 BTU, operating on 208/240 V, 1 Phase, 60 Hz. Designed for vertical wall or stud mounting, this air handler is housed in a fully insulated, galvanized-steel cabinet.

• Equipped with a check flowrater for cooling-only and heat pump operation.
• Direct-drive, multi-speed motor allows air volume variation for heating and cooling.
• Features sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW.

Product Highlights

This Goodman air handler provides efficient air comfort in locations with limited space, designed for versatile installation and reliable performance.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: AWUF301016
• Country of Origin: UNITED STATES

Technical Specifications

• Brand: Goodman
• Model / MPN: AWUF301016
• Size: 10 kW (Heating), 30K BTU (Cooling)
• Cooling BTU: 30,000 BTU
• Blower Motor: Multi Speed - PSC
• Maximum CFM: 1,255
• Electric Heat: 10 Kilowatts
• Electric Backup Heat Capabilities (Optional): 10 Kilowatts
• Filter Size: 18" x 20"
• Liquid Line: 3/8"
• Suction Line: 5/8"
• Electrical: 208-240 1 Phase
• Max Breaker Size: 50 amps
• Tonnage: 2.5 Ton
• Fuel Type: Electric
• Configuration: Wall Mounted
• Air Flow Direction: Upflow
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 10 kW
• Line Set Connection Type: Sweat
• Max Overcurrent Protection: 60 amps
• Voltage: 240
• Amps @ 240V: 53.0
• CFM @ 0.5" ESP: 950
• Motor Type: ECM
• Nom. CFM: 950
• Nom. Tons: 2-1/2
• Nom. kW: 10.0
• Volts: 208/230
• Fuse Size: 60 A
• Power Source: 208/240 V AC, 1 ph, 60 Hz
• Nominal Capacity: 2.5 ton
• Series: AWUF
• Type: Single Piece
• Min. Circuit Amps: 53.0
• Liquid Conn.: 3/8"
• TXV Included: No
